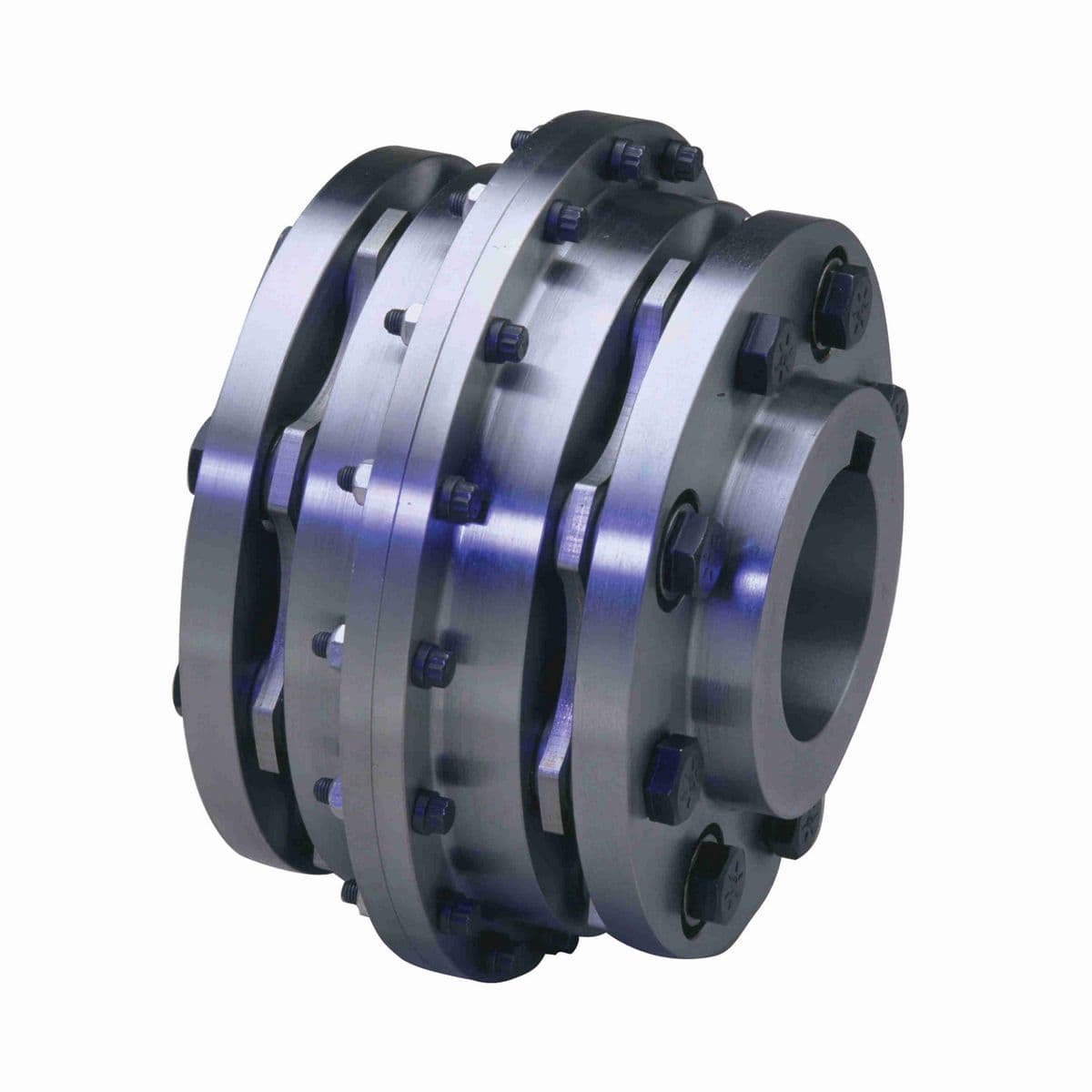

• Close Coupled disc coupling design with reversible hubs to accommodate various shaft separations.
• Unitized Disc Packs for ease of maintenance.
• HT (High Torque) disc packs for medium duty applications.
• Meet AGMA Class 9 balance off the shelf, may be balanced to AGMA Class 10 or 11.

Technical Specifications

Total Length (Std Hub Post) (in)	5 in
Total Length (Two Hub Reverse) (in)	8 in
Axial Capacity (+/-)	0.11
Bore Type	Finished Bore
Total WR2 (lb-in2)	189 psi
Coupling Size	204
Style	KD11
Configuration	2 standard hubs
Outside Diameter (in)	7.81 in
Total Length (One Hub Reverse) (in)	6.5 in
Hub Material	Carbon Steel
Length Through Bore standard hub (in)	2.44 in
Torque [Max] (ft-lb)	6,000 ft/lbs
Torque Rating (in-lb)	36,000 in/lbs
Bore Size Min (in)	2.63 in

General Specifications

UPC	662384155358
Weight	36.74 LB
