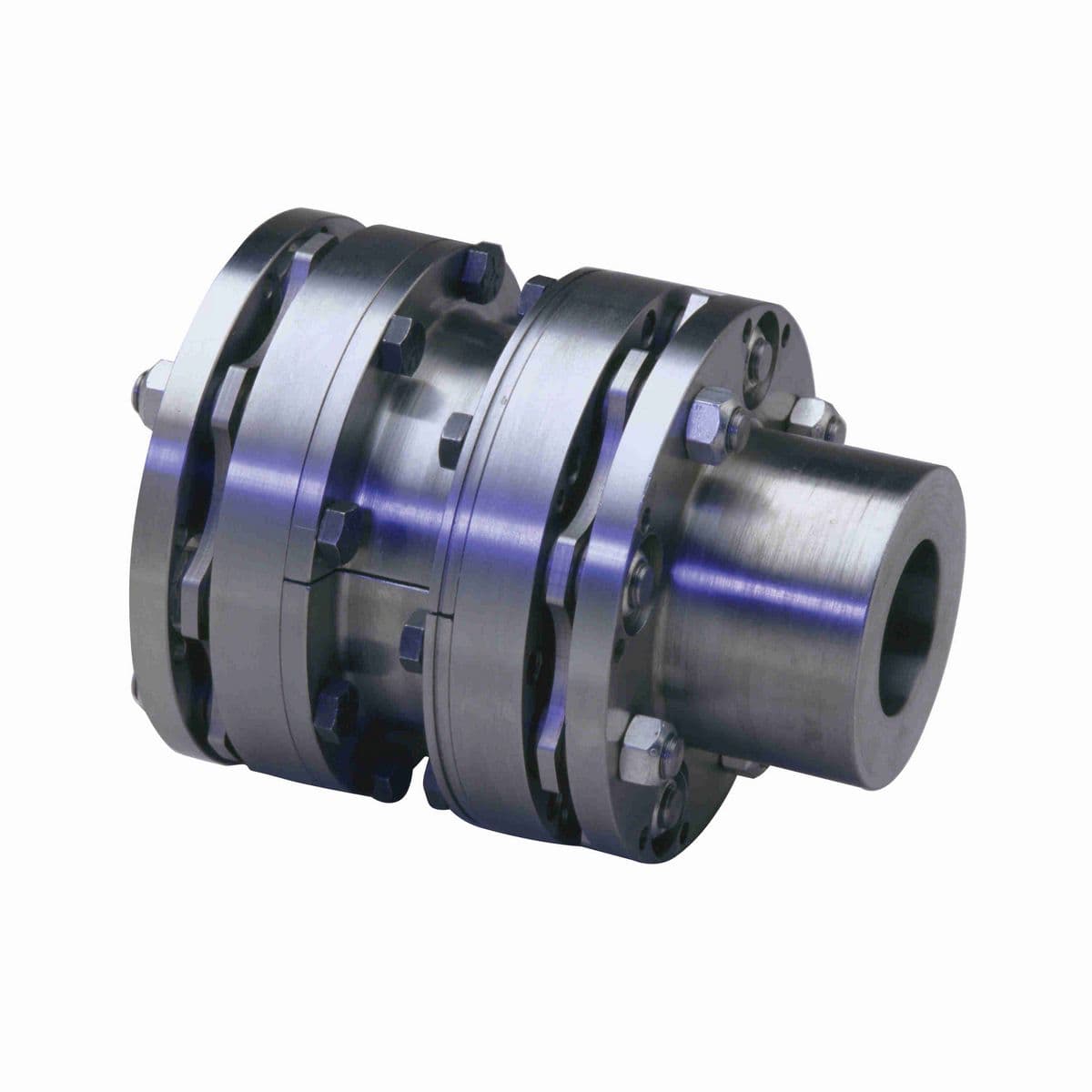

• Close Coupled disc coupling design with reversible hubs to accommodate various shaft separations.
• Semi-Unitized Disc Packs for ease of maintenance, replaceable without moving the connected equipment.
• HS (High Torque, Semi-unitized) disc packs for medium and heavy duty applications.
• Meet AGMA Class 8 balance off the shelf, and may be component balanced to AGMA Class 9.

Technical Specifications

Axial Capacity (+/-)	0.11
Configuration	2 standard hubs
Hub Material	Carbon Steel
Style	KD10
Total Length (Std Hub Post) (in)	5.62 in
Bore Type	Finished Bore
Coupling Size	204
Outside Diameter (in)	6.38 in
Total WR2 (lb-in2)	148 psi
Total Length (One Hub Reverse) (in)	7.9 in
Length Through Bore (in)	2.75 in
Torque Rating (in-lb)	36,000 in/lbs
Torque [Max] (ft-lb)	6,000 ft/lbs
Speed Max Balanced (rpm)	6,700 rpm
Length Through Bore standard hub (in)	2.75 in
Disc Shape	Scalloped
Hub Diameter (in)	3.64 in
Disc Coupling Type	Close Coupled
Bore Size Min (in)	1 in

General Specifications

UPC	662384153897
Weight	34.00 LB
