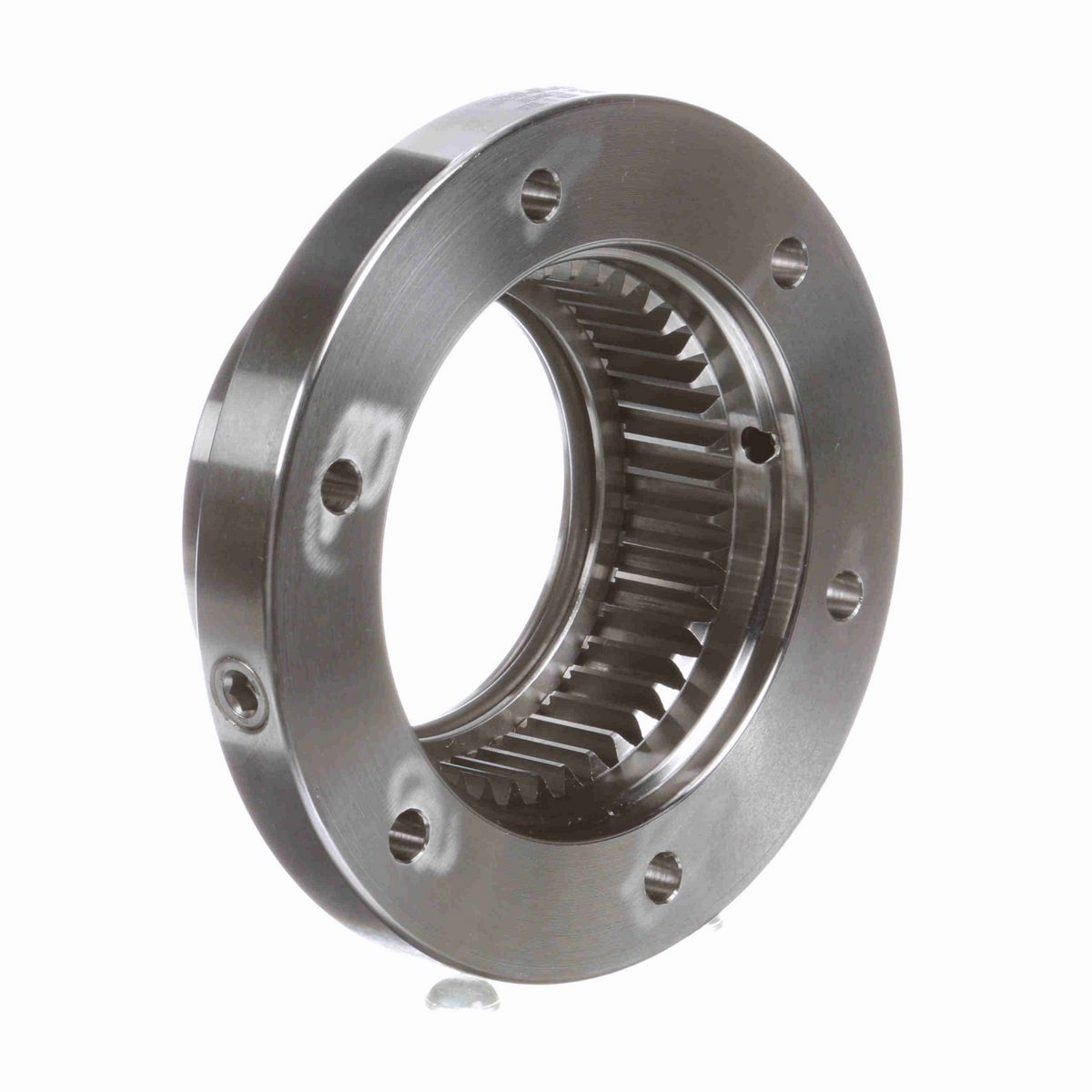

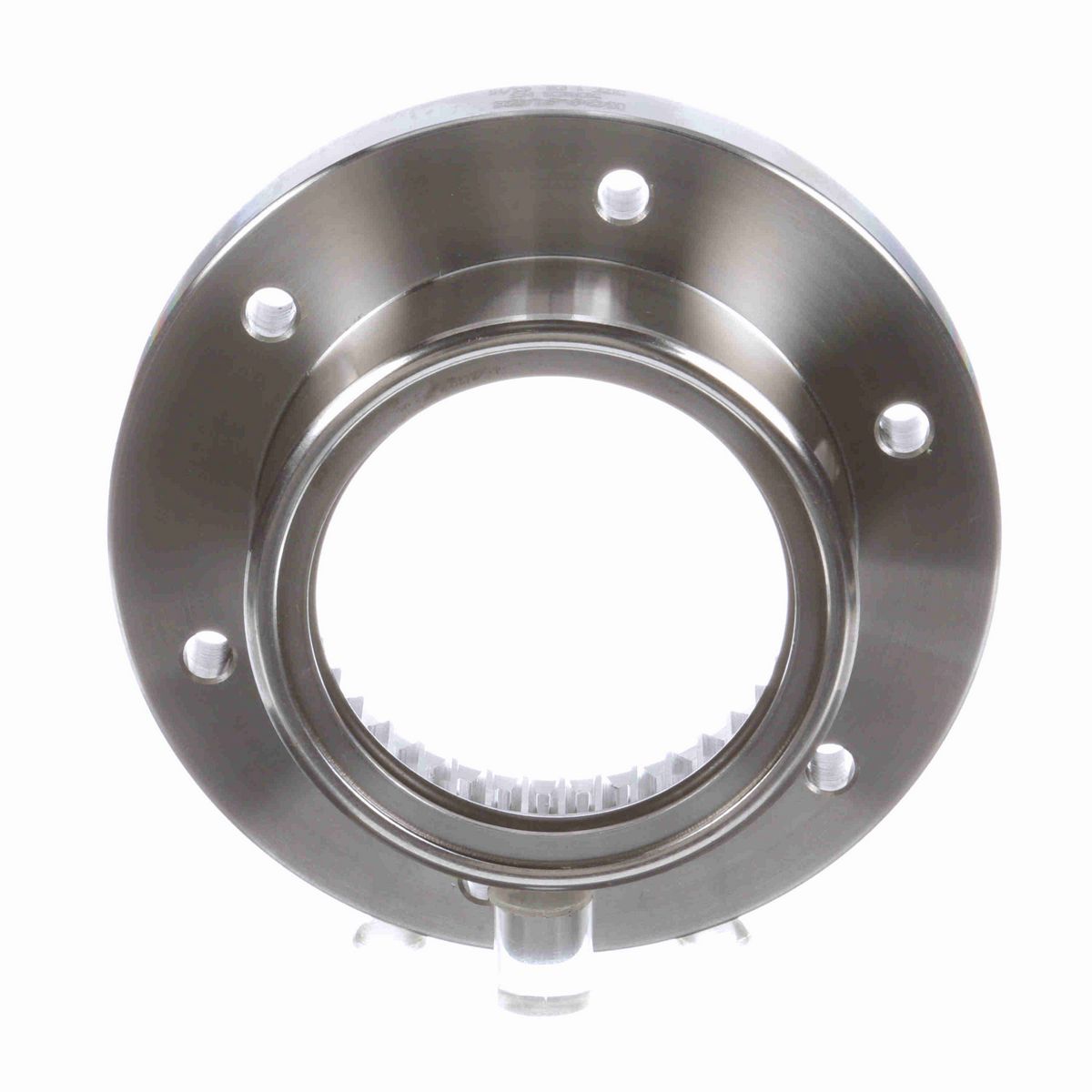

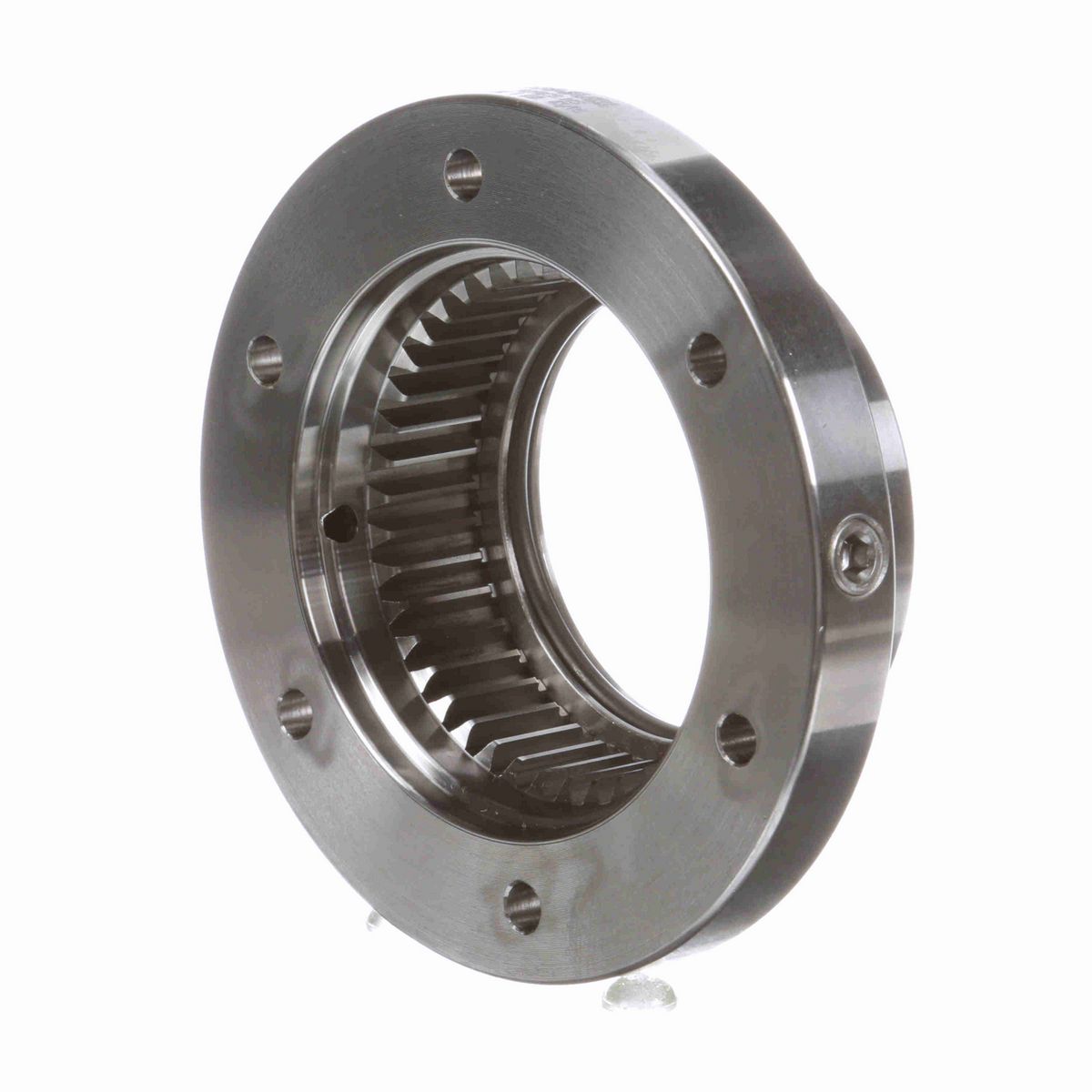

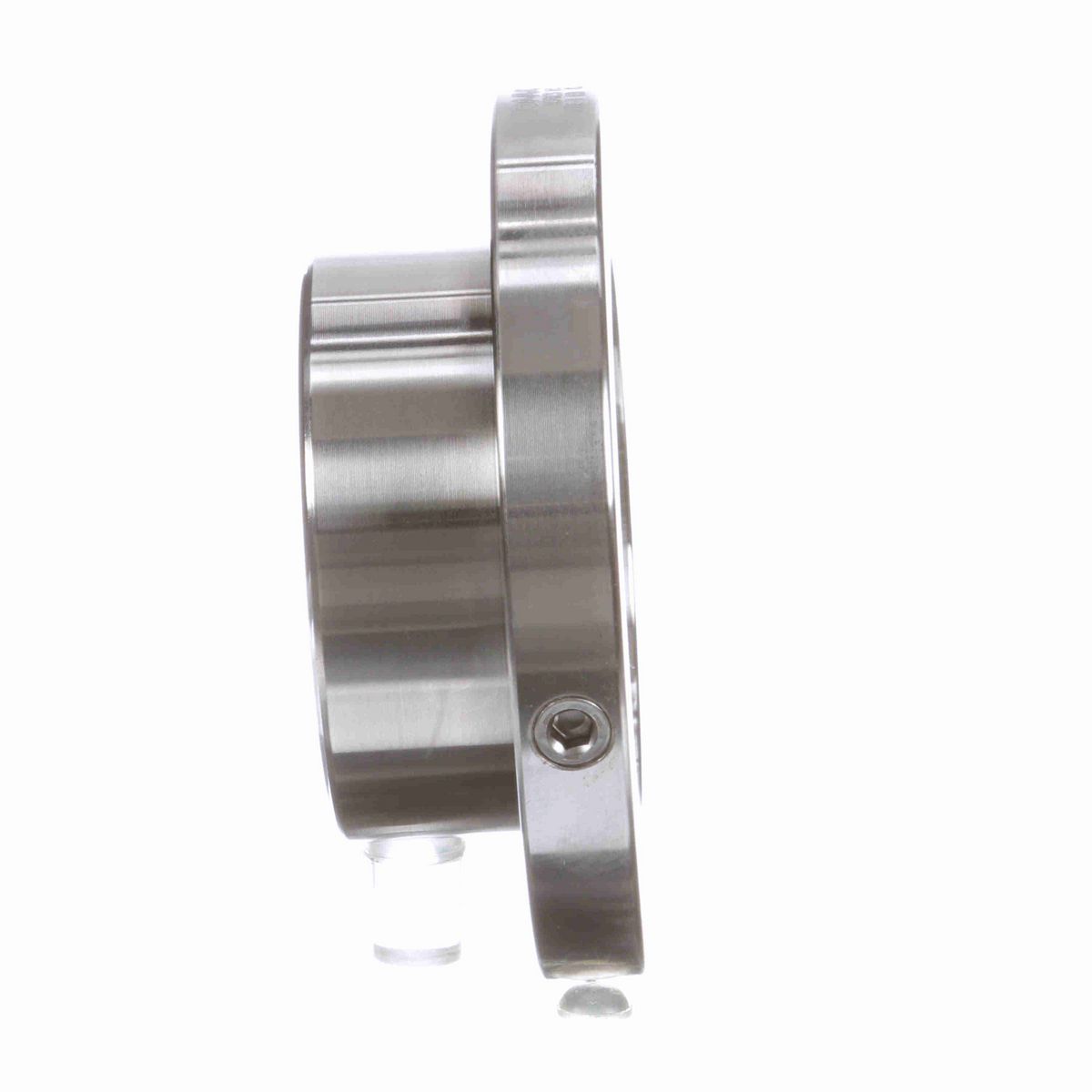

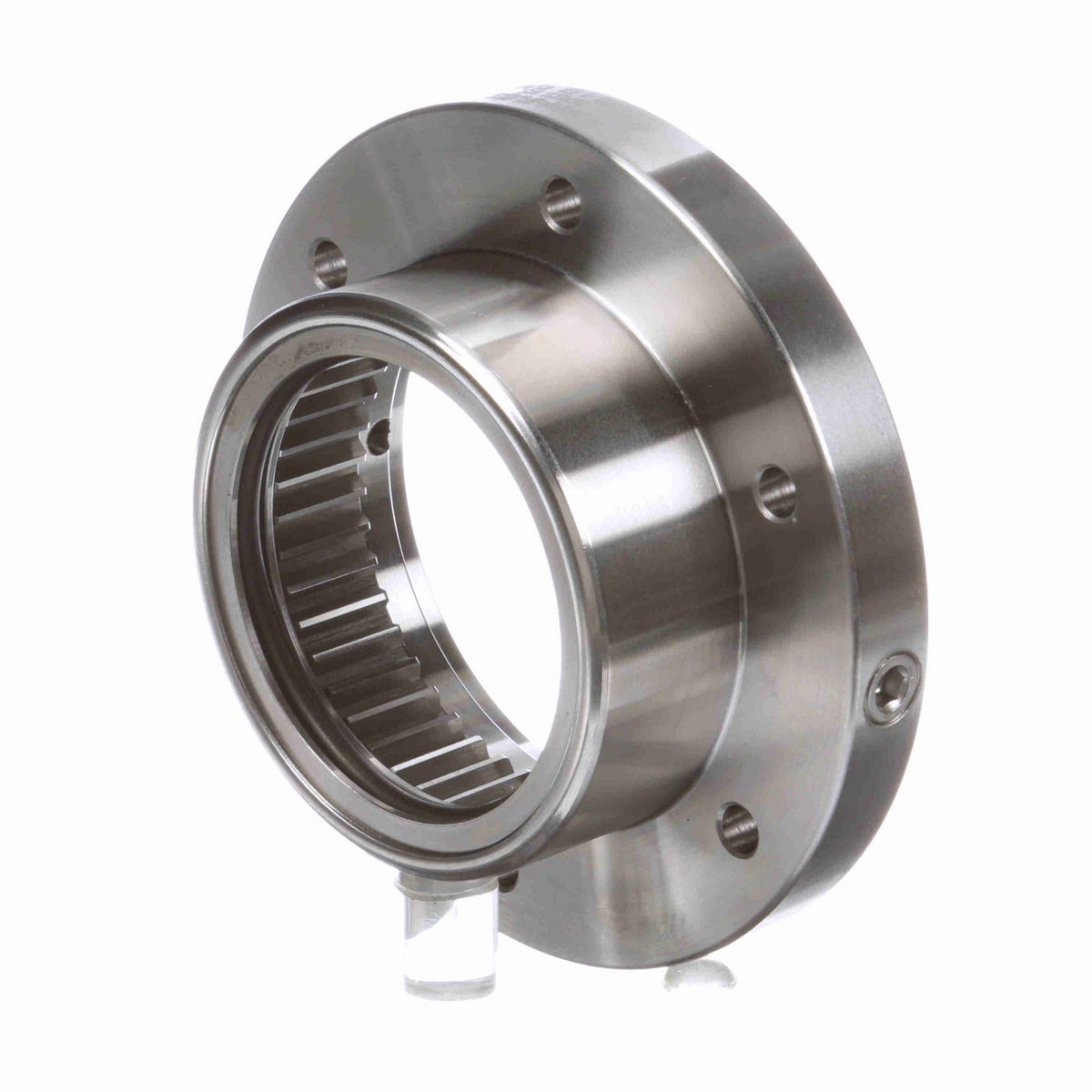

• Large bore capacity with o-ring seal design. The most economical gear coupling design.
• Curved face teeth (sizes 1 through 7) for up to 1.5 degrees static misalignment capability.
• Series H coupling sleeves will bolt to all competitor couplings sizes 1 through 7 for interchangeability in flex halves.

Technical Specifications

Model	Series H
Component Type	Slide Sleeve
Bolt Type	Exposed
Coupling Size	1
Series	Series H
Sleeve Type	Slide
Sleeve Outside Diameter (in)	4.5625 in
Sleeve Material	Steel
Sleeve Overall Length (in)	1.53125 in
Measurement System	Imperial
Coupling Type	Gear Coupling
Lube/Non-Lube	Lubricated
Bolt Circle	3.75 in
Total Slide	0.125
Speed Max (rpm)	14,500 rpm
Outside Diameter (in)	4.5625 in
Torque Rating (in-lb)	7,500 in/lbs
Configuration	Gear Sleeve
Tooth Profile	Crowned

General Specifications

UPC	662460305530
Weight	2.10 LB
Packaged Length	5.00 IN
Packaged Width	5.00 IN
Packaged Height	3.20 IN
HTC	8483.90.8010
Country of Origin	Mexico
