Indexable Drilling - Weldon® Shank Kennametal Drill Fix PRO - Drill Body - 3 x D - WB Shank - Metric [7030369]
(0) |
Нет в наличии
0 руб.
Overview

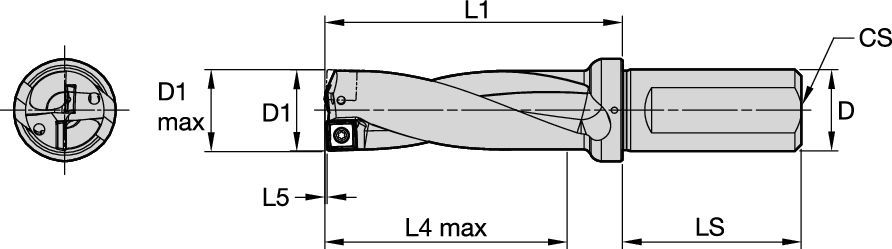

| Material Number | 7030369 |
| ISO Catalog ID | DFPR350R3WB40M |
| [D1] Drill Diameter M | 35 mm |
| [D1MAX] Drill Diameter Maximum | 36 mm |
| [L5] Drill Point Length | 1.11 mm |
| [L1] Insert Gage Length | 129 mm |
| [L4] Maximum Drilling Depth | 105 mm |
| [LS] Shank Length | 70 mm |
| [D] Adapter / Shank / Bore Diameter | 40 mm |
| [CS] Coolant Supply Size | 1/4-18 NPT |
| Internal Face Catalog Gage Insert 1 | DFPR110406__O |
| Internal Face Catalog Gage Insert 2 | DFPR120405__I |
Uses and application
- Shank - Cylindrical with Flat
- Drilling
- Drilling: Inclined Entry
- Drilling: Inclined Exit
- Drilling: X-Offset
- Drilling: Stacked Plates
- Drilling: Convex
- Through Coolant: Radial: Indexable Drilling
- Drilling: Blind
- Chain Drilling
- Drilling: Cross-Hole Drilling
- Drilling: Half-Cylindrical Drilling
- Drilling: Corner Drilling 45°
Workpiece Materials
- Steel
- Stainless Steel
- Cast Iron
- Non-Ferrous
- High-Temp Alloys
Features and benefits
- Versatile indexable drill, covering many workpiece materials.
- For straight hole drilling, inclined entries and exits, interrupted cuts, and rough casted, forged or welded entry surfaces.
- Two eccentric positioned coolant channels for higher coolant volume, providing higher metal removal rates, tool-life, and productivity.
- Helical flutes for perfect chip evacuation.
- Drill body provides high stiffness, eliminating noise and vibrations, resulting in best-in-class hole size accuracy and hole quality.
- The X-offset feature enables diameter adjustment within the machine, and applications on lathe machines.
