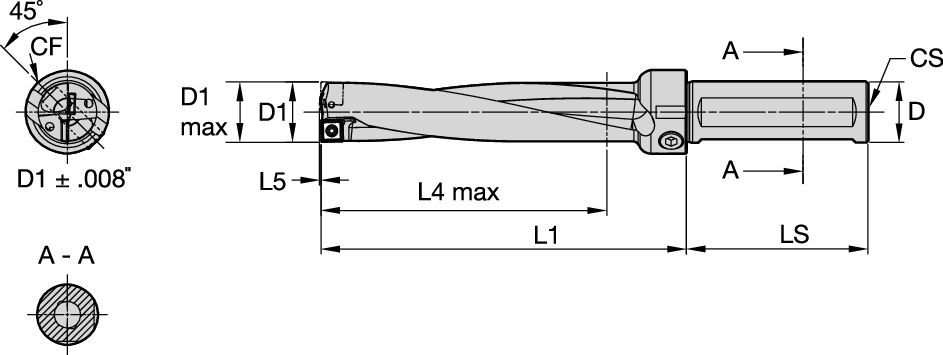

Indexable Drilling - Flanged Shank with Flats Kennametal Drill Fix PRO - Drill Body - 5 x D - SSF Shank - Inch [7031335]

Overview

Uses and application

• Drilling
• Drilling: Inclined Entry
• Drilling: Inclined Exit
• Drilling: X-Offset
• Drilling: Stacked Plates
• Drilling: Convex
• Shank - Cylindrical with Flat and Flange
• Through Coolant: Radial: Indexable Drilling
• Drilling: Blind
• Chain Drilling
• Drilling: Cross-Hole Drilling
• Drilling: Half-Cylindrical Drilling
• Drilling: Corner Drilling 45°

Workpiece Materials

• Steel
• Stainless Steel
• Cast Iron
• Non-Ferrous
• High-Temp Alloys

Features and benefits

• Versatile indexable drill, covering many workpiece materials.
• For straight hole drilling, inclined entries and exits, interrupted cuts, and rough casted, forged or welded entry surfaces.
• Two eccentric positioned coolant channels for higher coolant volume, providing higher metal removal rates, tool-life, and productivity.
• Helical flutes for perfect chip evacuation.
• Drill body provides high stiffness, eliminating noise and vibrations, resulting in best-in-class hole size accuracy and hole quality.
• The X-offset feature enables diameter adjustment within the machine, and applications on lathe machines.
