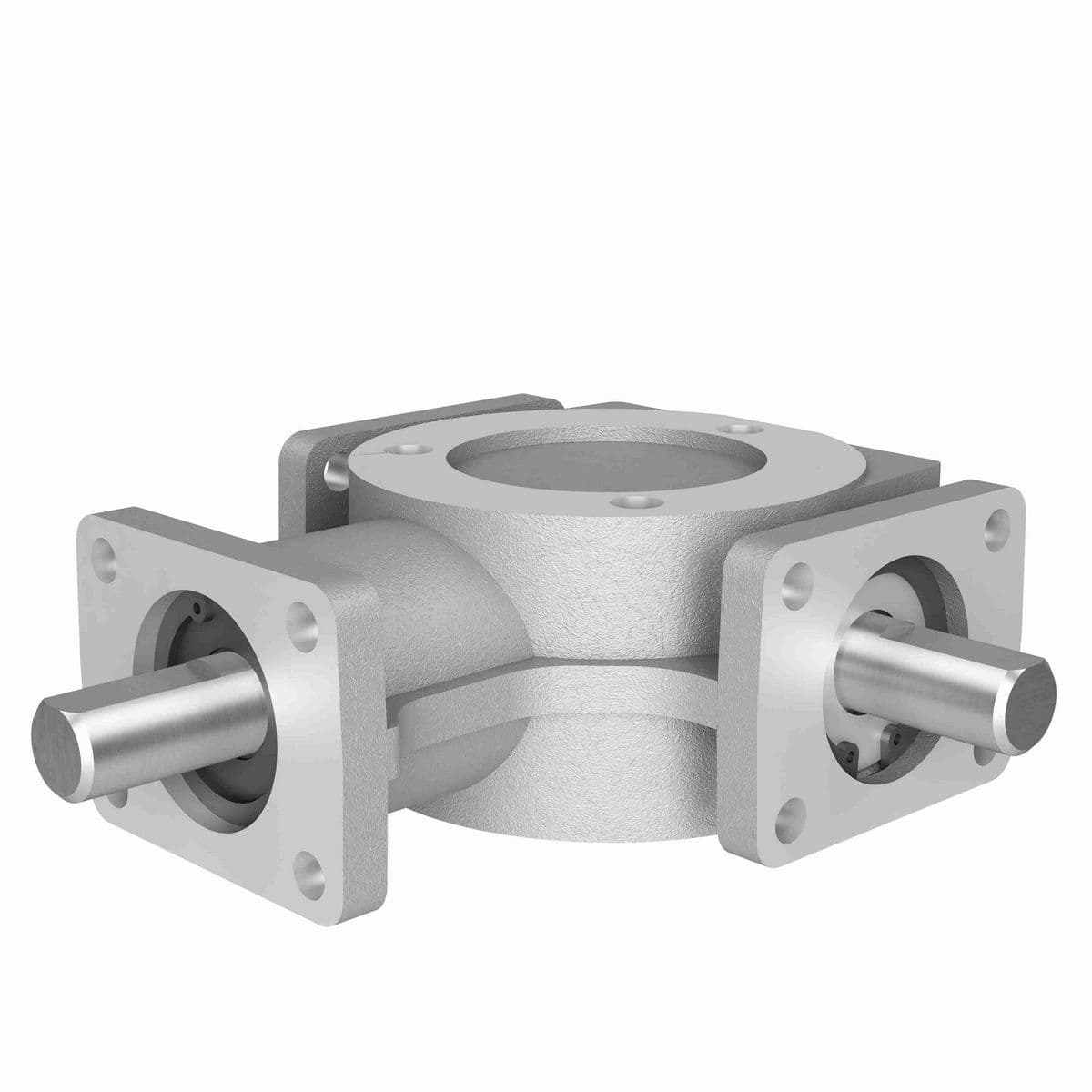

• Cast aluminum housing
• Universal mounting (4 surfaces)
• Factory lubricated
• Spiral bevel gearing
• Corrosion resistant shafting

Technical Specifications

Maximum Input HP	0.913 @ 1750 RPM
Product Line	Bevel Gear Drives
Series Code	AD4
Output Diameter (in)	0.375 in
Ratio	1:1
Product Type	Right Angle
Style	C,F
Gear Type	Spiral Bevel
Input Diameter (in)	0.3745 in
Service Factor	1
Output RPM	1750
Ratio Range	1:1
Input Style	Shaft
Housing Width (in)	2.75 in
Housing Length (in)	3.015 in
Reduction	Single
Housing Dimensions	(L)3.015 x (H)1.255 x (W)2.75
Housing Height (in)	1.255 in
Output Shaft Direction	L or R
Housing Material	Aluminum
Output Torque Rating (in-lb)	32.9 in/lbs
Output Torque Range (in-lb)	< 250 in lbs in/lbs
Gear Drive Size	AD4
Output Shaft	Shaft

General Specifications

UPC	662798008332
Weight	1.00 LB
Packaged Length	9.00 IN
Packaged Width	9.00 IN
Packaged Height	4.00 IN
HTC	8483.40.5050
Country of Origin	United States of America
