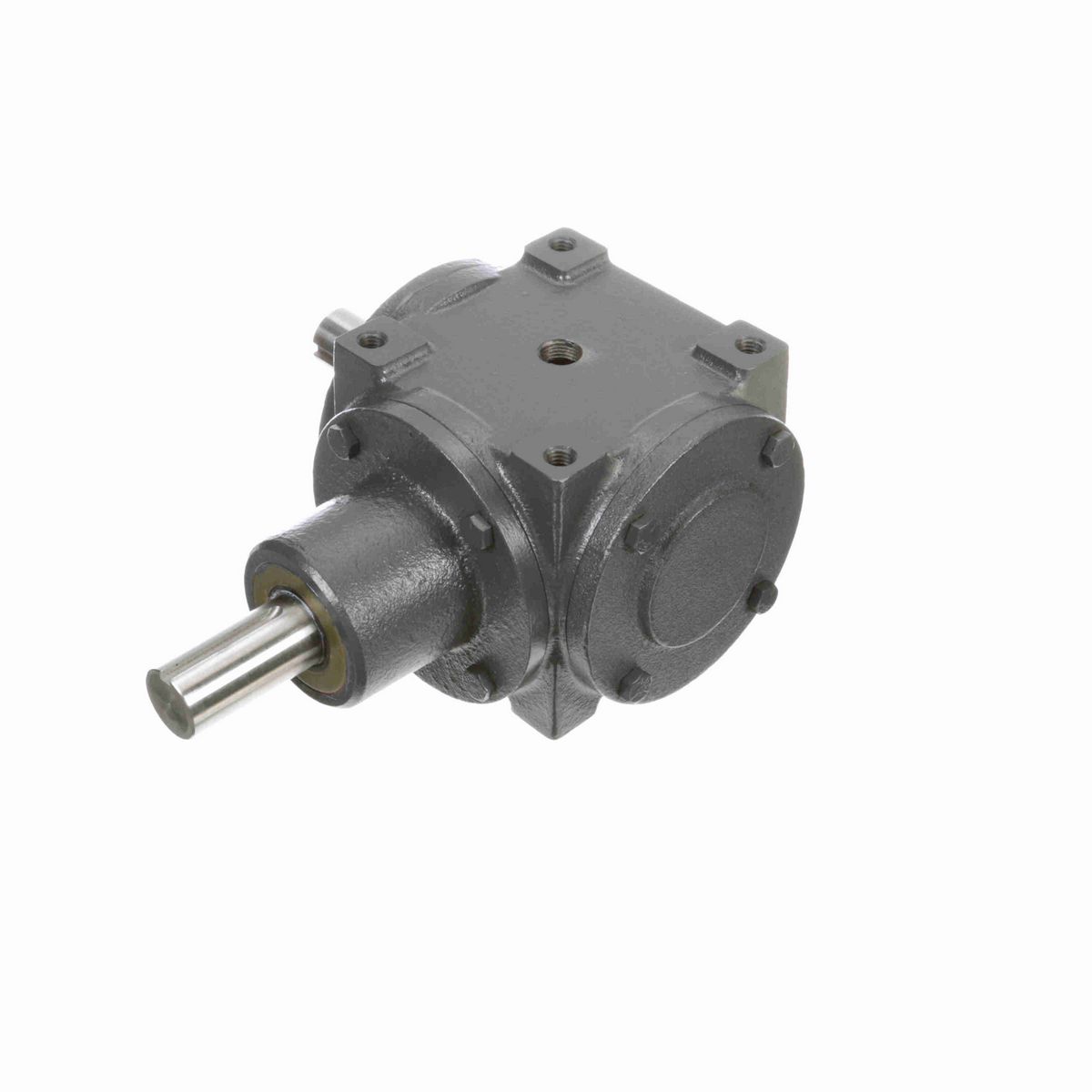

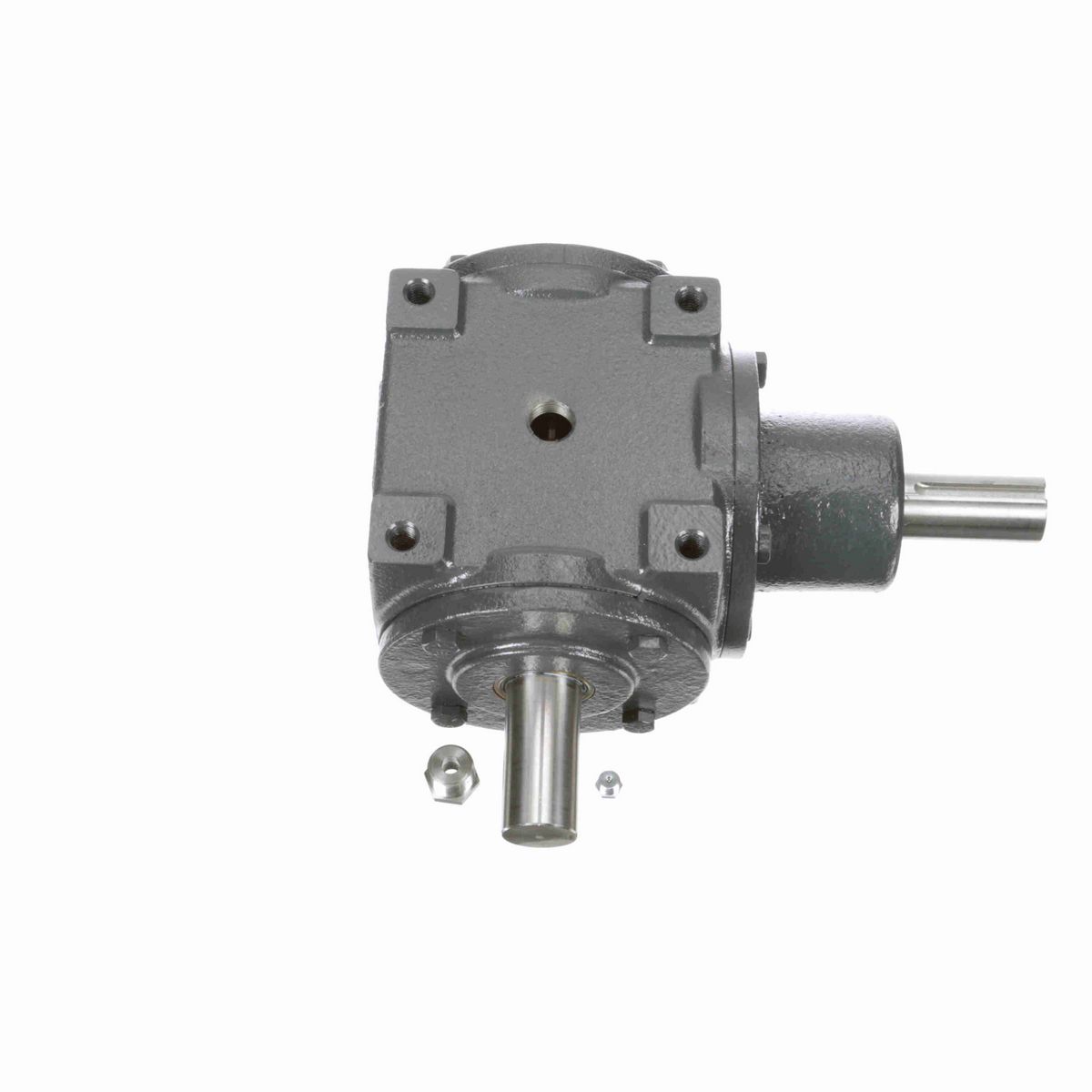

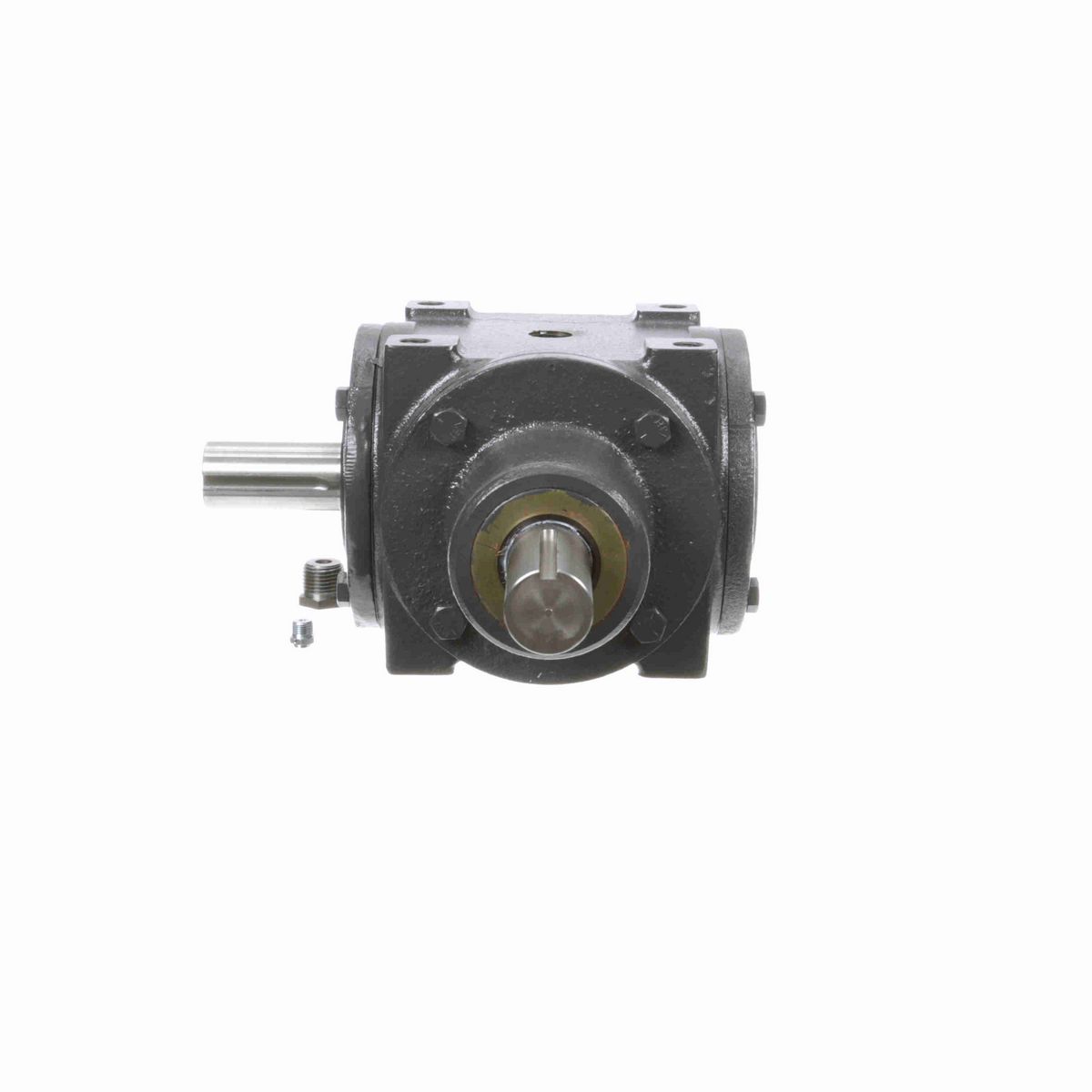

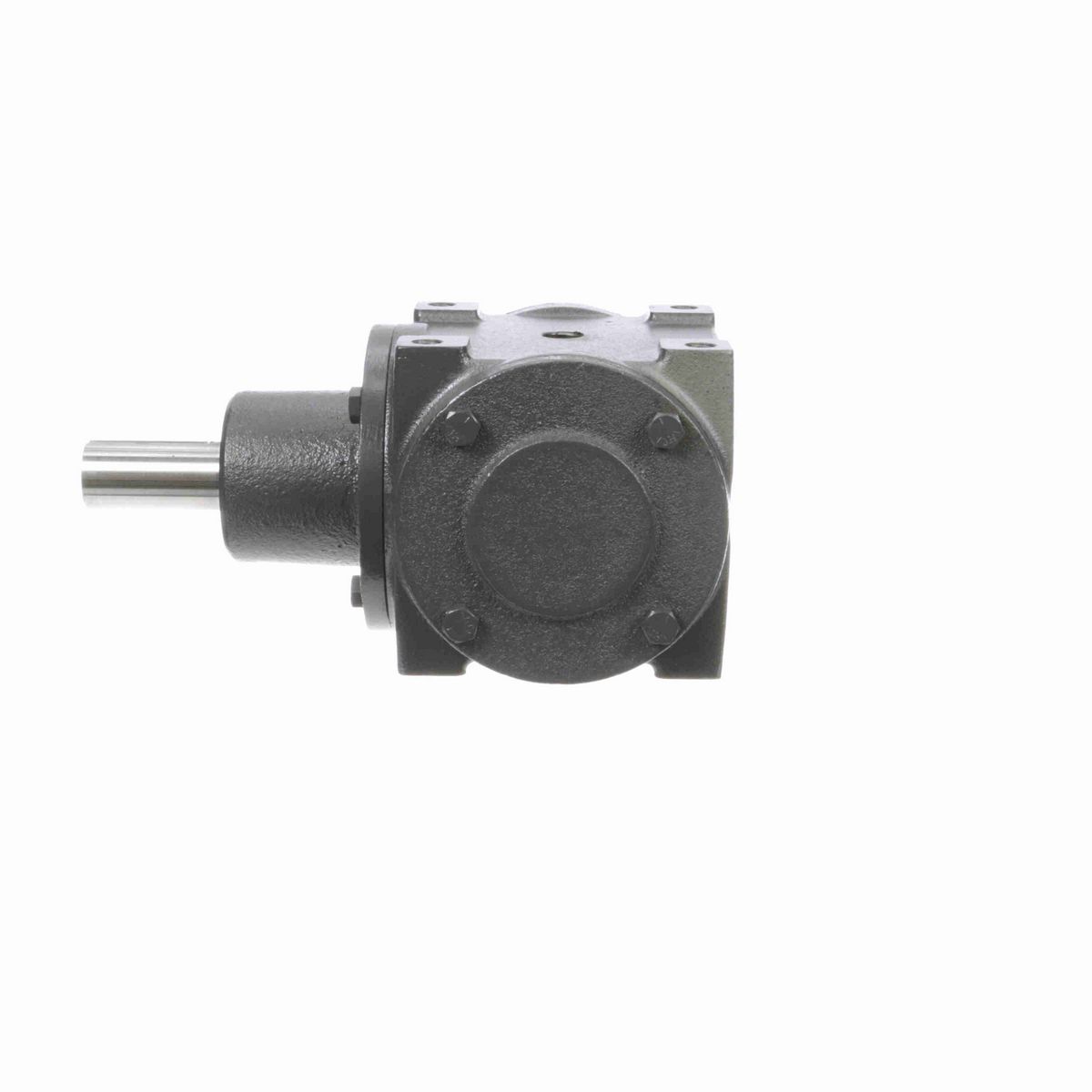

• Rugged cast iron housing
• Universal Mounting Dimensions
• Spiral Bevel (SP) or Straight Bevel (ST) gearing
• Alloy shafting
• Heavy-duty industrial seals

Technical Specifications

Style	D,E
Output Diameter (in)	1.250 in
Service Factor	1
Maximum Input HP	35 @ 1750 RPM
Series Code	66
Product Type	Right Angle
Gear Type	Spiral Bevel
Input Diameter (in)	1.250 in
Output RPM	1143.8
Ratio	1.53:1
Product Line	Bevel Gear Drives
Ratio Range	1.5:1
Input Style	Shaft
Reduction	Single
Housing Width (in)	7.25 in
Housing Length (in)	8.6875 in
Housing Height (in)	5.625 in
Housing Dimensions	(L)8.6875 x (H)5.625 x (W)7.25
Output Shaft Direction	L or R
Output Torque Rating (in-lb)	1887 in/lbs
Gear Drive Size	66
Output Torque Range (in-lb)	1000 to 2500 in lbs in/lbs
Output Shaft	Shaft
Housing Material	Cast Iron

General Specifications

UPC	662798006598
Weight	43.00 LB
Packaged Length	13.25 IN
Packaged Width	12.50 IN
Packaged Height	7.50 IN
HTC	8483.40.5050
Country of Origin	United States of America
