• Modular Design
• Universal Mounting Dimensions
• Increased thermal capacity and Increased efficiency
• Cast iron housing
• Alloy shafting
• Viton® seals

Technical Specifications

Output RPM	17.5
Gear Type	Worm
Series Code	260PCX

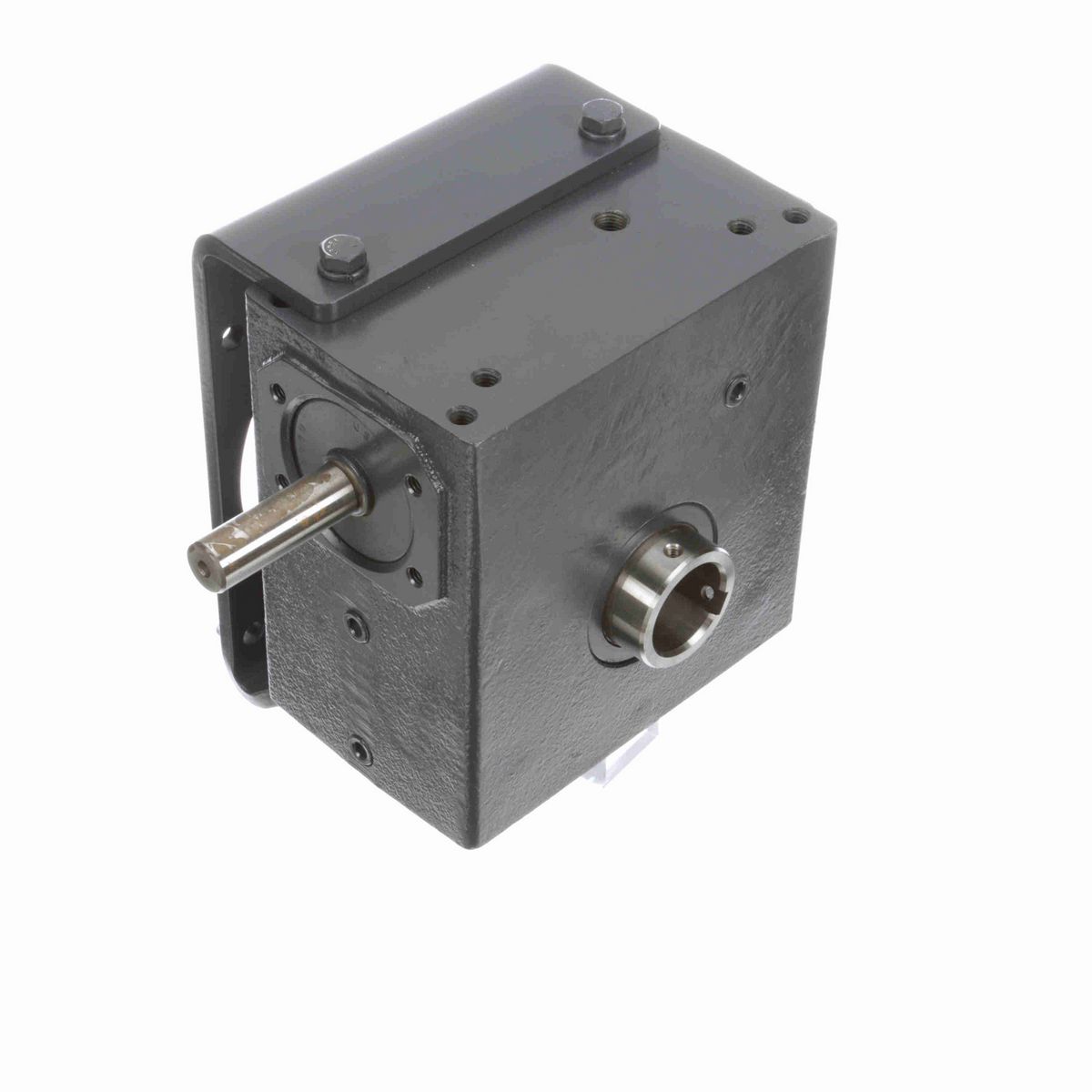

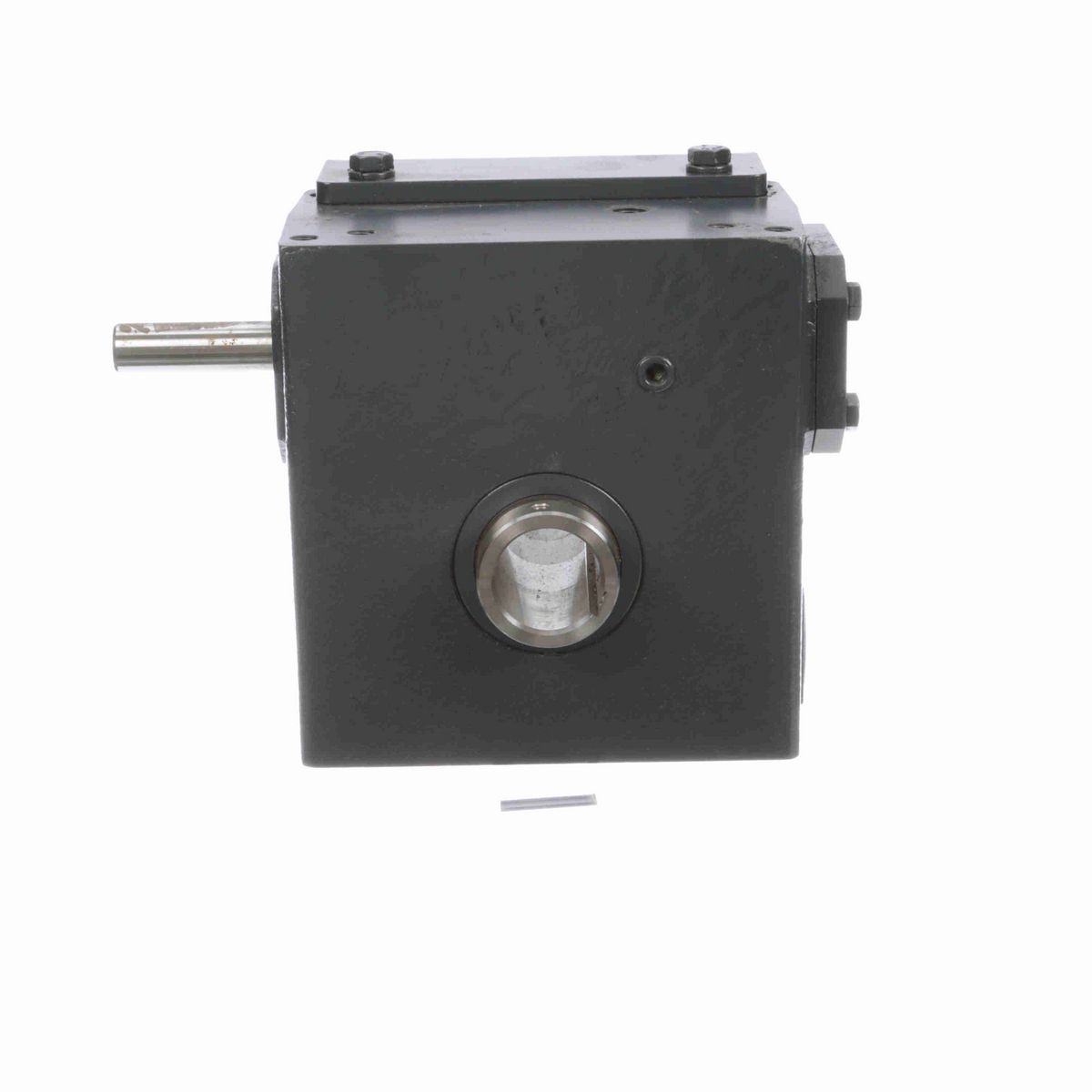

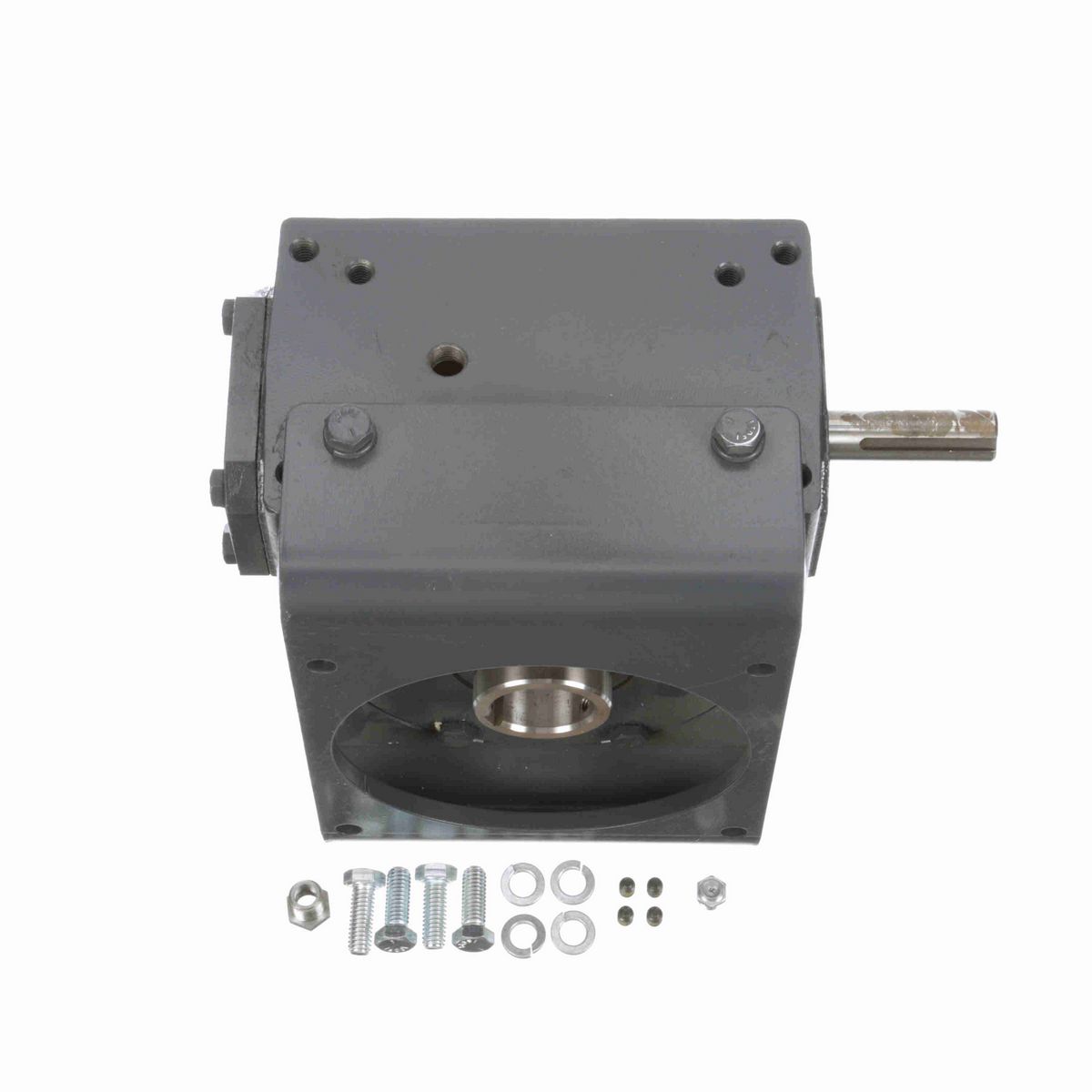

Product Line	POWERCUBEX WORM GEAR DRIVE
Model Code	263
Service Factor	1.0
Input Diameter (in)	0.75 in
Output Diameter (in)	1.500 in
Input HP	0.45
Style	R
Product Type	RIGHT ANGLE
Ratio	100:1
Center Distance (in)	2.63
Ratio Range	100:1 to 250:1
Mounting Style	R
Keyway	3/16 x 3/32
Input Style	Shaft
Reduction	SINGLE
Output Shaft Direction	L or R
Housing Material	Cast Iron
Output Shaft	Hollow Bore
Output Torque Rating (in-lb)	945 in/lbs

General Specifications

UPC	662798960654
Weight	43.00 LB
Packaged Length	12.00 IN
Packaged Width	10.00 IN
Packaged Height	11.00 IN
