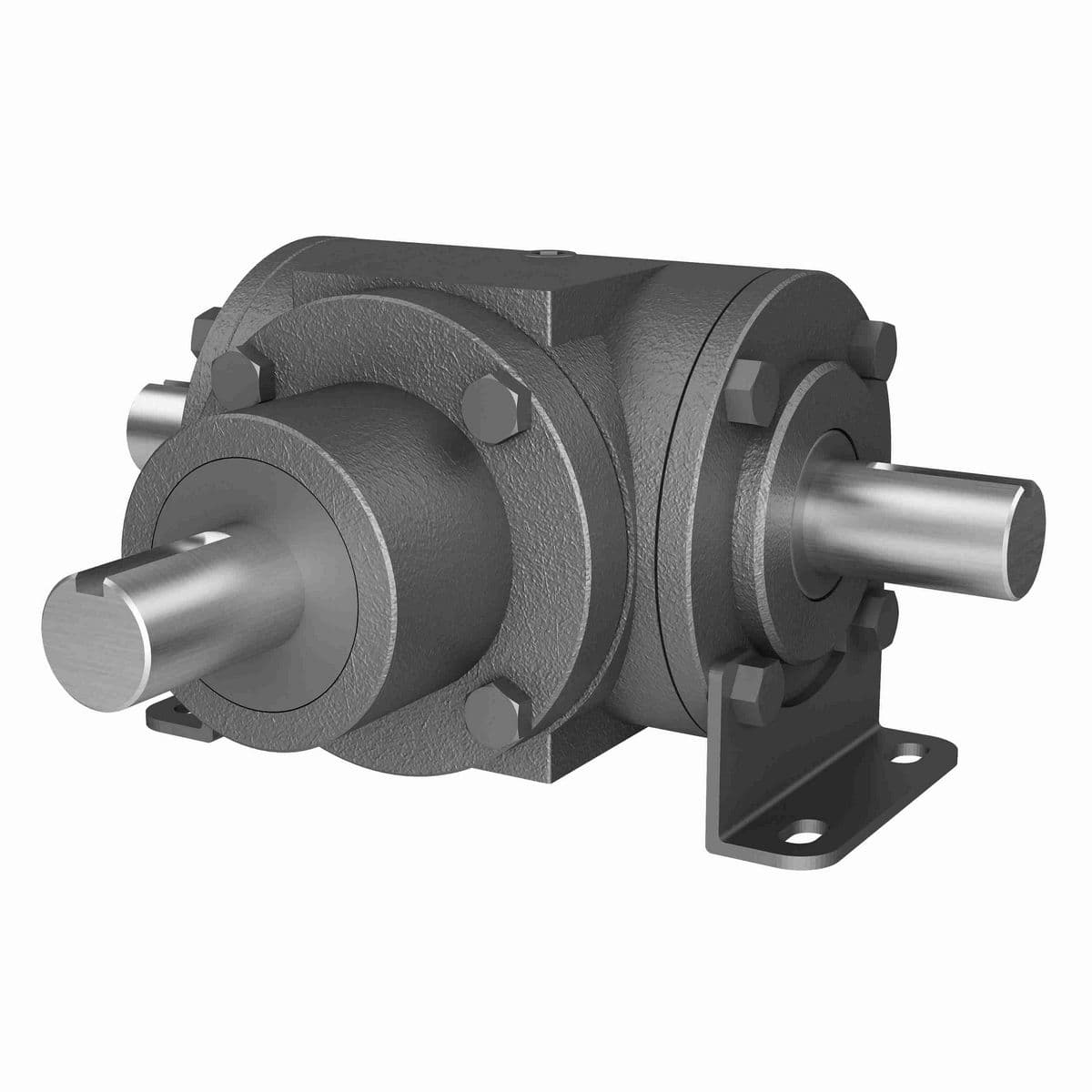

• Rugged cast iron housing
• Universal Mounting Dimensions
• Spiral Bevel (SP) or Straight Bevel (ST) gearing
• Alloy shafting
• Heavy-duty industrial seals

Technical Specifications

Service Factor	1
Product Line	Bevel Gear Drives
Output Diameter (in)	1.000 in
Product Type	Right Angle
Style	A,B
Maximum Input HP	6.1 @ 1750 RPM
Input HP	6.1
Gear Type	Straight Bevel
Output RPM	1190.5
Input Diameter (in)	1.000 in
Series Code	11
Ratio	1.47:1
Input Style	Shaft
Ratio Range	1.5:1
Housing Length (in)	6.4375 in
Housing Width (in)	5.71875 in
Housing Dimensions	(L)6.4375 x (H)4.59375 x (W)5.71875
Housing Height (in)	4.59375 in
Reduction	Single
Output Shaft Direction	Double
Output Torque Range (in-lb)	250 to 500 in lbs in/lbs
Output Torque Rating (in-lb)	330 in/lbs
Housing Material	Cast Iron
Gear Drive Size	11
Output Shaft	Shaft

General Specifications

UPC	662798004181
Weight	21.00 LB
Packaged Length	13.25 IN
Packaged Width	12.50 IN
Packaged Height	7.50 IN
HTC	8483.40.5050
Country of Origin	United States of America
