• Rugged cast iron housings, covers, and flanges provide superior strength and rigidity.
• Factory-filled with premium Mobil Glygoyle 460 polyalkalene glycol lubricant.
• Large oil capacity provides positive splash lubrication and superior cooling capability.
• Viton® double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals.
• O-rings on all bearing covers, eliminating gaskets, sealants and leaks.
• Oversized high-speed bearings, positively retained for frequent reversing and start/stop cycles. Tapered roller bearings on output shaft for high overhung and thrust load capacities.
• The unique quill seal guard protects the input seal from damage during motor installation.
• Bronze worm gear chill cast from high quality bronze for maximum strength, lubricity and superior life.
• All units are 100% run and leak tested at the factory to insure that you receive the highest quality product.
• Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles.

Dimensions

C	7.38 in
V	1.94 in
Center Distance (in)	2.63 in
X	7.63 in
BE	0.38 in
AK	4.5
N	2.53
BF	0.41
R	3.62 in
H	0.34 in
AJ	5.88
BD	6.5
RQ	4.82 in
LL	2.12 in
B	5.75
D	2.94
LQ	5.19 in
Y	6.68 in
I	4.34 in
T	1.5
A	2.88

Technical Specifications

Input Style	C-Face Quill

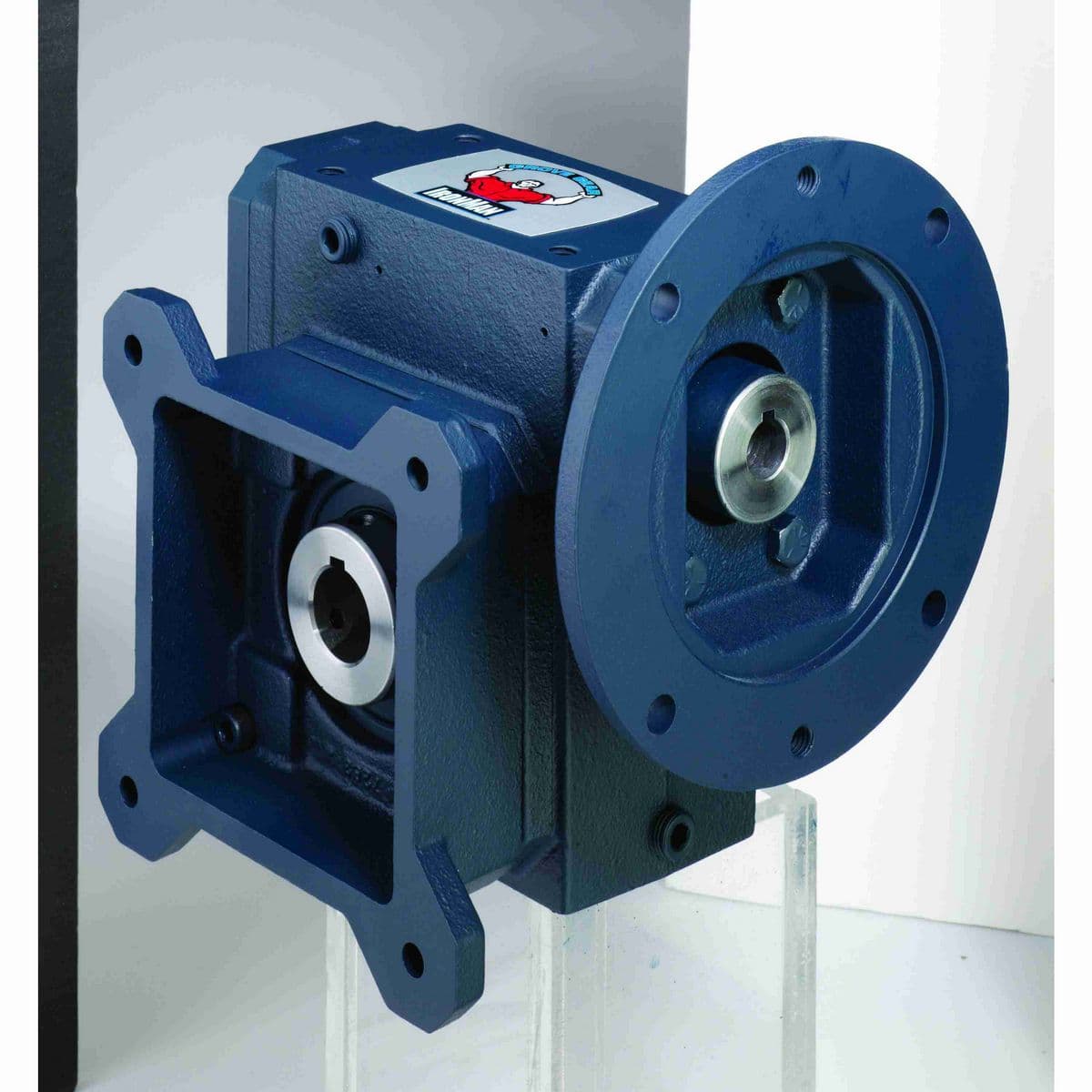

Series	NH Series - Ironman Narrow Housing Worm Gear Reducers
Output Shaft Orientation	HL
Assembly	FHMQ
Output RPM	58
Input RPM	1,750
Keyway	3/16 X 3/32
Frame Size	140TC
Output Key	3/8 x 3.00
Reducer Style	Worm - Right Angle
Ratio	30:1
Reducer	Worm - Right Angle
Input HP	2.145
Output HP	1.743
Input Bore (C Face)	0.875
Input Diameter (in)	0.875 in
Bore Code	23
Motor Frame Size	140TC
Service Factor	1
Output Diameter (in)	1.438 in
Shaft Seal Material	Viton
Model Code	FHMQ826
Center Distance (in)	2.63
Output Shaft Assembly Code	HL
Product Type	Right Angle
Input Keyway (C Face)	3/16 x 3/32
Input Quill Diameter (in)	0.875 in
Series Style	NH-FHMQ-HL
Output Style	HL
Gear Type	Worm
Mounting Style	Flange Mounted Hollow Output Bore
Ratio Range	30:1
No. of Gear Reductions	Single
Product Line	NH Series - Ironman Narrow Housing Worm Gear Reducers
Reduction	Single
Output Shaft	Hollow Bore
Output Torque Rating (in-lb)	1883 in/lbs
Housing Material	Cast Iron

General Specifications

Weight

51.00 LB
