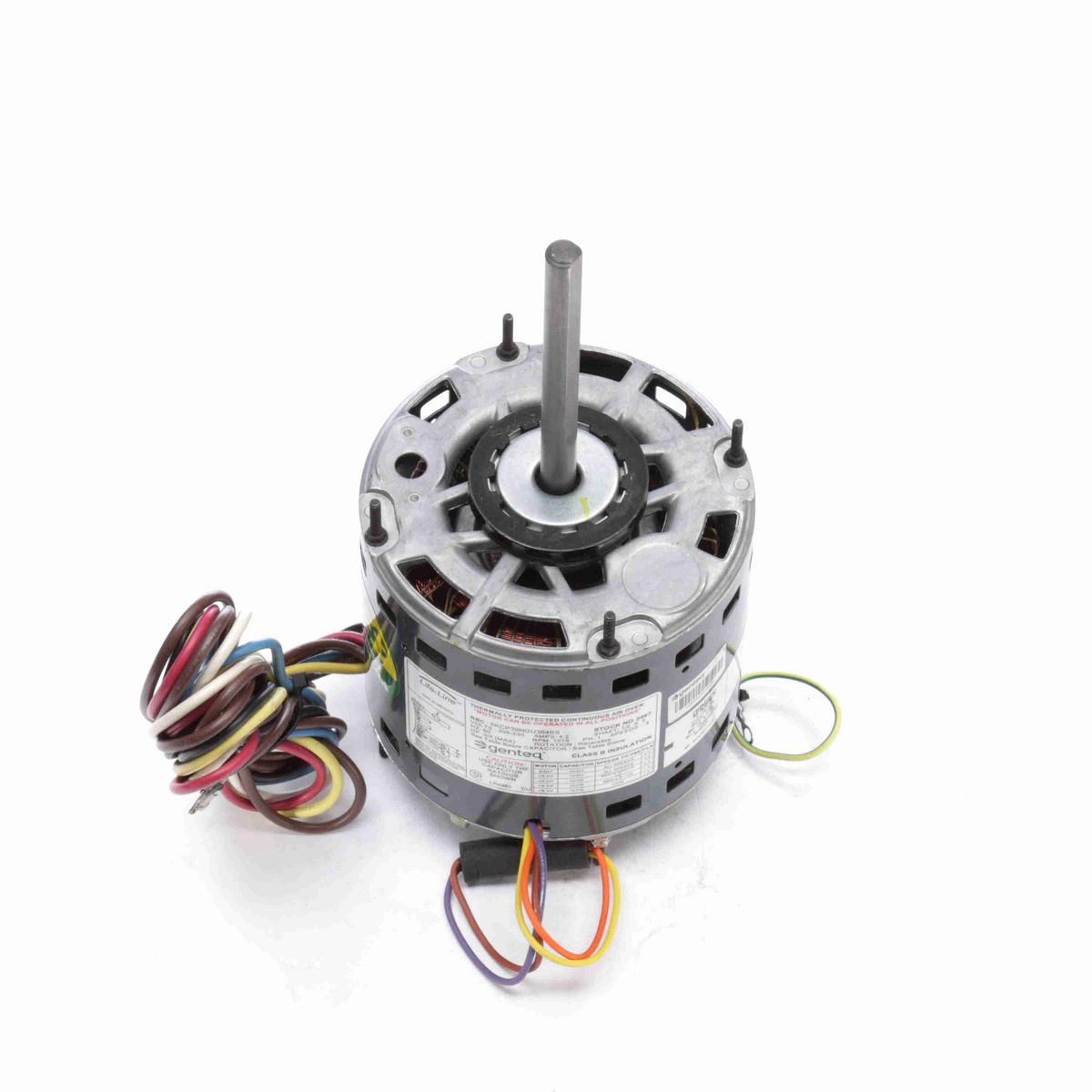

• Life-Line - Direct Drive Fan and Blower Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 20 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Flat
• 38" Leads
• Extended Clampbolts, Mounting Holes in shell, Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	3/4 Hp
Output KW	0.56 kW
Voltage	208-230 V
Speed	1075 rpm
Service Factor	1
Frame	48
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	4.20 A
Duty	Continuous Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	4

Technical Specifications

Electrical Type	Permanent Split Capacitor
Poles	6
Rotation	Counterclockwise/Clockwise
Mounting	Resilient Rings
Motor Orientation	Any
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Double Flat
Overall Length	11.14 in
Frame Length	4.57 in
Shaft Diameter	0.500 in
Shaft Extension	5.00 in

General Specifications

UPC	815585020431
Weight	16.60 LB
Packaged Length	8.00 IN
Packaged Width	8.00 IN
Packaged Height	16.00 IN
