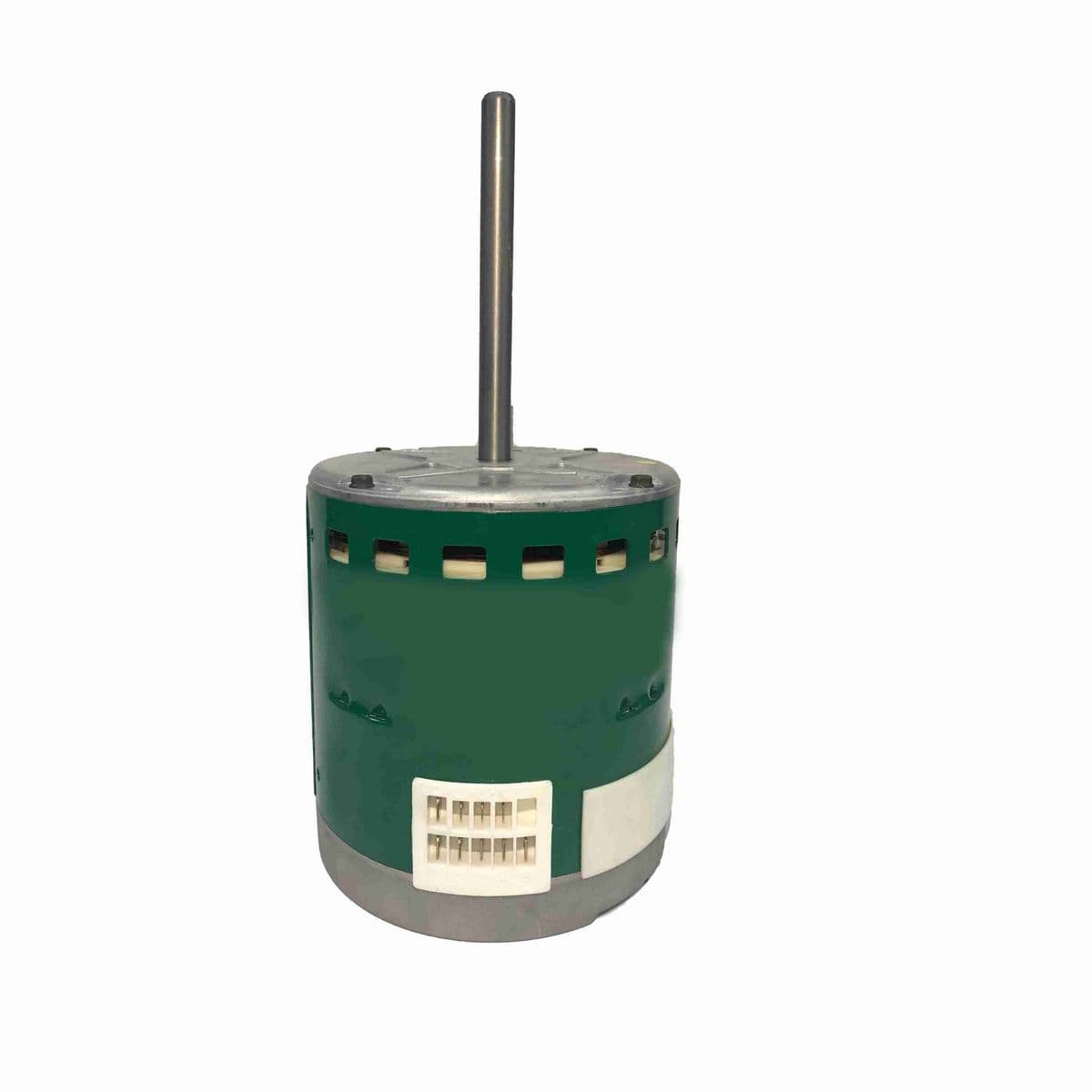

• Evergreen CM - ECM Replacment Commercial Air Handler Motor
• 5.6" Diameter - 48 Frame
• Electronically Commutated (ECM), Electronically Protected
• Up to five constant torque settings controlled by 24 VAC inputs
• Fully variable (PWM compatible) from 600-1100 RPM
• Open Air Over, Class B Insulation, 45°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Flat
• 42" Leads
• Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	3/4 Hp
Output KW	0.56 kW
Voltage	208-230/277 V
Speed	1075 rpm
Service Factor	1
Frame	48
Enclosure	Open Air Over
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60/50 Hz
Current	6.0/4.9 A
Duty	Continuous Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Electronically Commutated Motor
Poles	12
Rotation	Counterclockwise/Clockwise
Mounting	Round
Motor Orientation	Hor
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	10.42 in
Frame Length	5.57 in
Shaft Diameter	0.500 in
Shaft Extension	3.92 in

General Specifications

UPC	815585023876
Weight	18.40 LB
Packaged Length	16.00 IN
Packaged Width	8.00 IN
Packaged Height	8.00 IN
Country of Origin	Mexico
