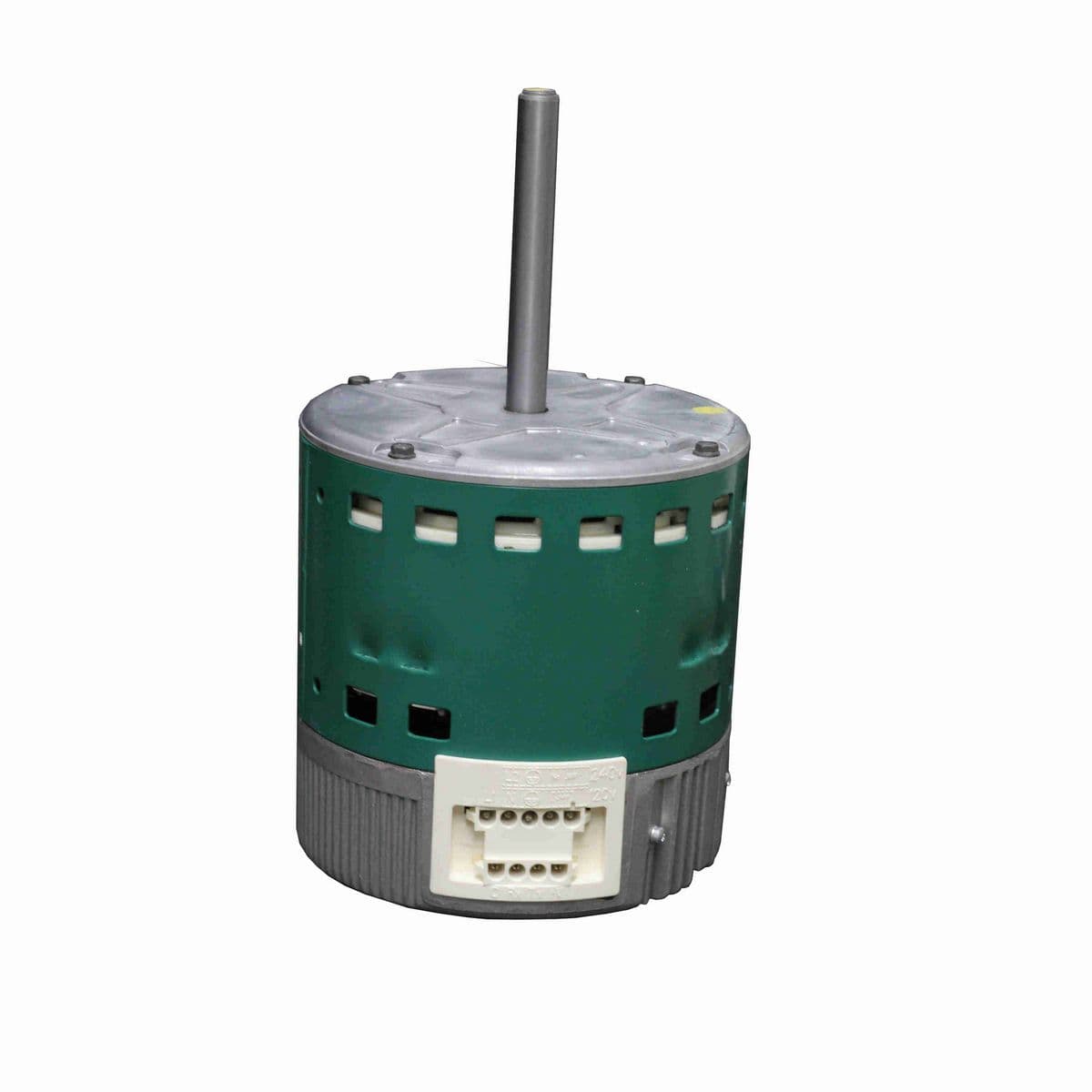

• Evergreen VS - ECM Variable Speed Replacement Motor
• 5.6" Diameter - 48 Frame
• Electronically Commutated (ECM)
• Electronically Protected
• Open Air Over
• Class B Insulation, 55°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Flat
• 36" Leads
• ***Application May Require User Interface Catalog Number 5K010 or 5K010V. For Additional Information Refer to “Evergreen® VS Motors” Product Page, or Search “Motor Cross Reference” in “Tools & Resources” for OEM Replacement Cross.

Nameplate Specifications

Phase	1
Output HP	1/3 Hp
Output KW	0.25 kW
Voltage	120/240 V
Speed	1050 rpm
Service Factor	1
Frame	48
Enclosure	Open Air Over
Thermal Protection	Electronically Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	5.0/2.8 A
Duty	Continuous Air Over
Insulation Class	B
UL	No
CSA	N
CE	Y
Number of Speeds	1

Technical Specifications

Electrical Type	Electronically Commutated Motor
Poles	12
Rotation	Counterclockwise/Clockwise
Mounting	Round
Motor Orientation	Vsd
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	10.71 in
Frame Length	3.57 in
Shaft Diameter	0.500 in
Shaft Extension	5.00 in

General Specifications

UPC	818508024721
Weight	10.50 LB
Packaged Length	15.70 IN
Packaged Width	6.70 IN
Packaged Height	7.10 IN
Country of Origin	Mexico
