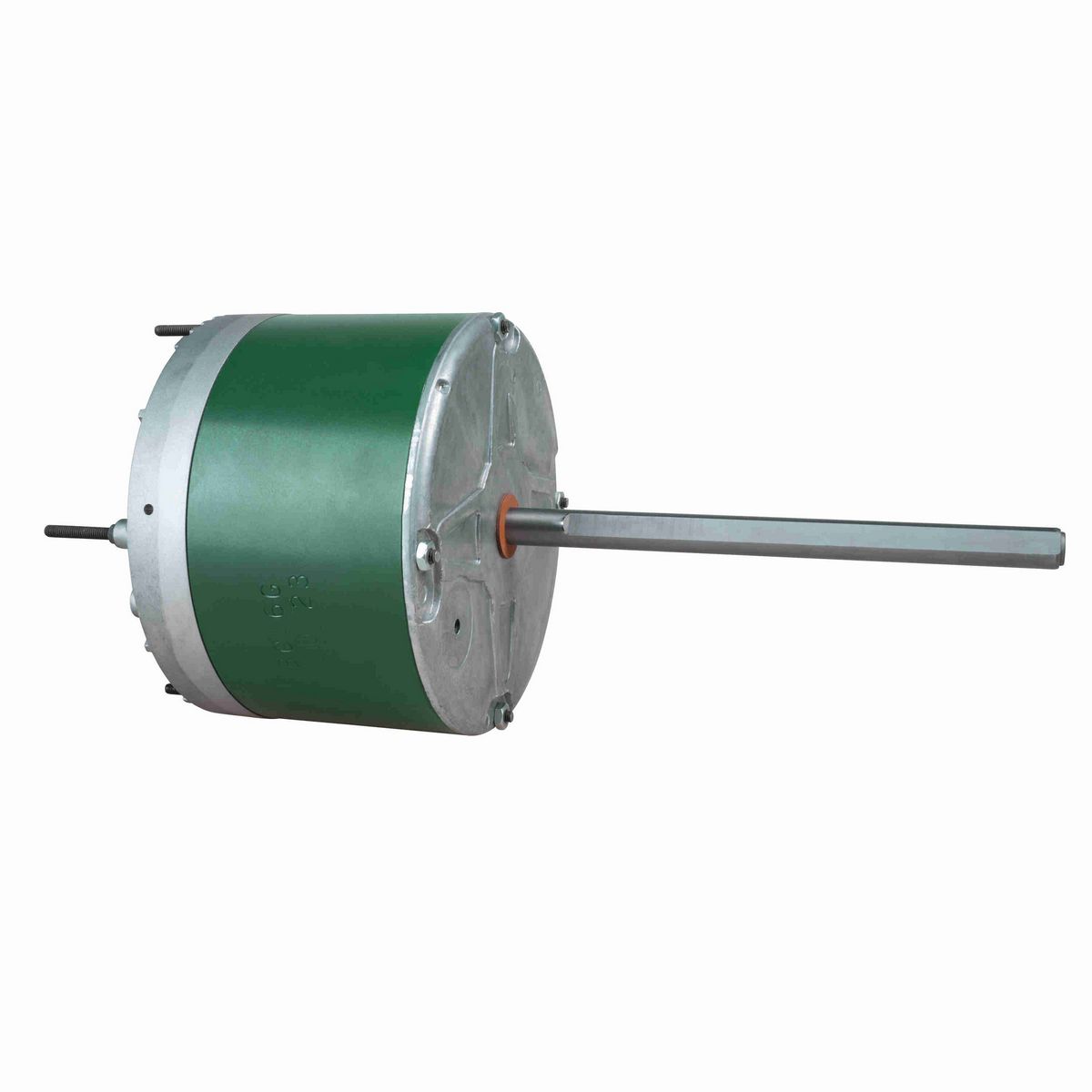

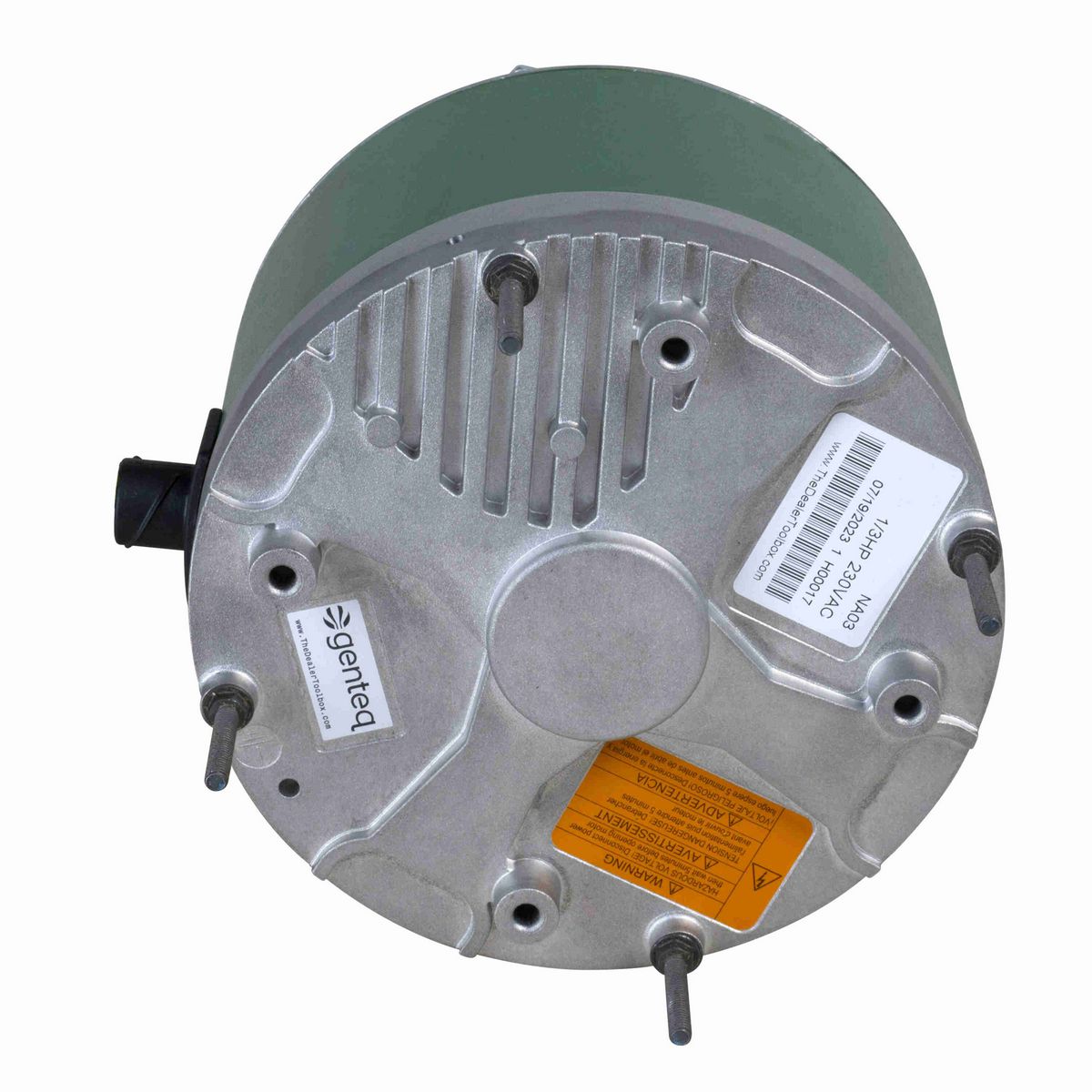

• Evergreen OM - Retrofit Condenser Fan Motor (Replaces PSC and Shaded Pole Motors)
• Electronically Commutated (ECM), Electronically Protected
• 1/3 HP (Replaces 1/3-1/12). Two Operating Speeds (Constant Speed), 1075 RPM replaces motors rated 1000-1100 RPM, 825 RPM replaces motors rated 800-850 RPM
• 208-230 Voltage (Allowable Voltage Range 196-264), Single-Phase Input, 50-60 Hz, Totally Enclosed Air Over
• Class B Insulation, -20 to 60°C Ambient
• Rotation: Reversible (Factory Set To CCW Lead End)
• Permanently Lubricated Ball Bearing
• Shaft: 1/2” Diameter, 6.5” Length, 6” Single Flat
• Leads: 54” Length With 1/4” Fast On Terminals, Ground Wire #10 Eyelet
• Mounting: Horizontal or Vertical Shaft-down, Belly Band (Not Supplied With Motor), Extended Clamp Bolts, or OEM Mounting Holes

Nameplate Specifications

Phase	1
Output HP	1/3 Hp
Voltage	208-230 V
Speed	825/1075 rpm
Service Factor	1
Frame	48
Enclosure	Totally Enclosed Air Over
Thermal Protection	Electronically Protected
Ambient Temperature	40 °C
Frequency	60/50 Hz
Current	2.8 A
Duty	Continuous Air Over
Insulation Class	B
UL	No
CSA	N
CE	N
Number of Speeds	2

Technical Specifications

Electrical Type	Electronically Commutated Motor
Poles	10
Rotation	Counterclockwise/Clockwise
Mounting	Extended Studs
Motor Orientation	Vsd
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	10.98 in
Frame Length	2.82 in
Shaft Diameter	0.500 in
Shaft Extension	6.50 in

General Specifications

UPC	818508029221
Weight	13.00 LB
Packaged Length	15.56 IN
Packaged Width	6.69 IN
Packaged Height	7.06 IN
Country of Origin	Mexico
