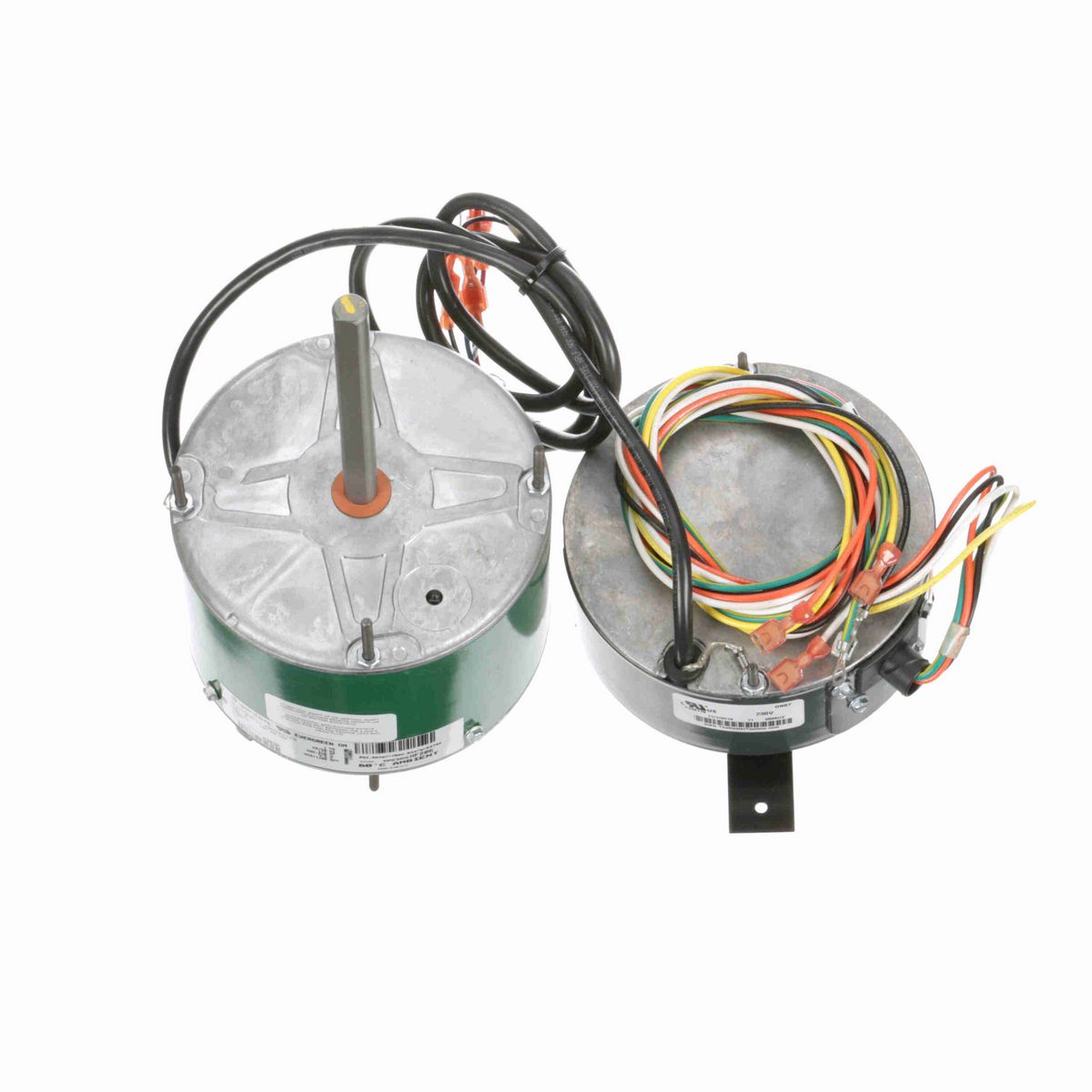

• Evergreen OM - Remote Mount Control - Retrofit Condenser Fan Motor
• 5.6" Diameter - 48 Frame
• Electronically Commutated (ECM)
• Electronically Protected
• Totally Enclosed Air Over
• Class B Insulation, 60°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Flat
• 55" Leads
• Mounting Holes on Side of Motor Shell and End Shield ( 4.33" Bolt Circle), Extended Clampbolts, Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1/3 Hp
Output KW	0.25 kW
Voltage	208-230 V
Speed	850/1100 rpm
Service Factor	1
Frame	48
Enclosure	Totally Enclosed Air Over
Thermal Protection	Electronically Protected
Ambient Temperature	40 °C
Frequency	60/50 Hz
Current	3.5 A
Duty	Continuous Air Over
Insulation Class	B
UL	No
CSA	N
CE	N
Number of Speeds	2

Technical Specifications

Electrical Type	Electronically Commutated Motor
Poles	12
Rotation	Counterclockwise
Mounting	Round Belly Band
Motor Orientation	Vsd
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	9.79 in
Frame Length	3.57 in
Shaft Diameter	0.500 in
Shaft Extension	5.50 in

General Specifications

UPC	818508024905
Weight	10.50 LB
Packaged Length	15.70 IN
Packaged Width	6.70 IN
Packaged Height	7.10 IN
Country of Origin	Mexico
