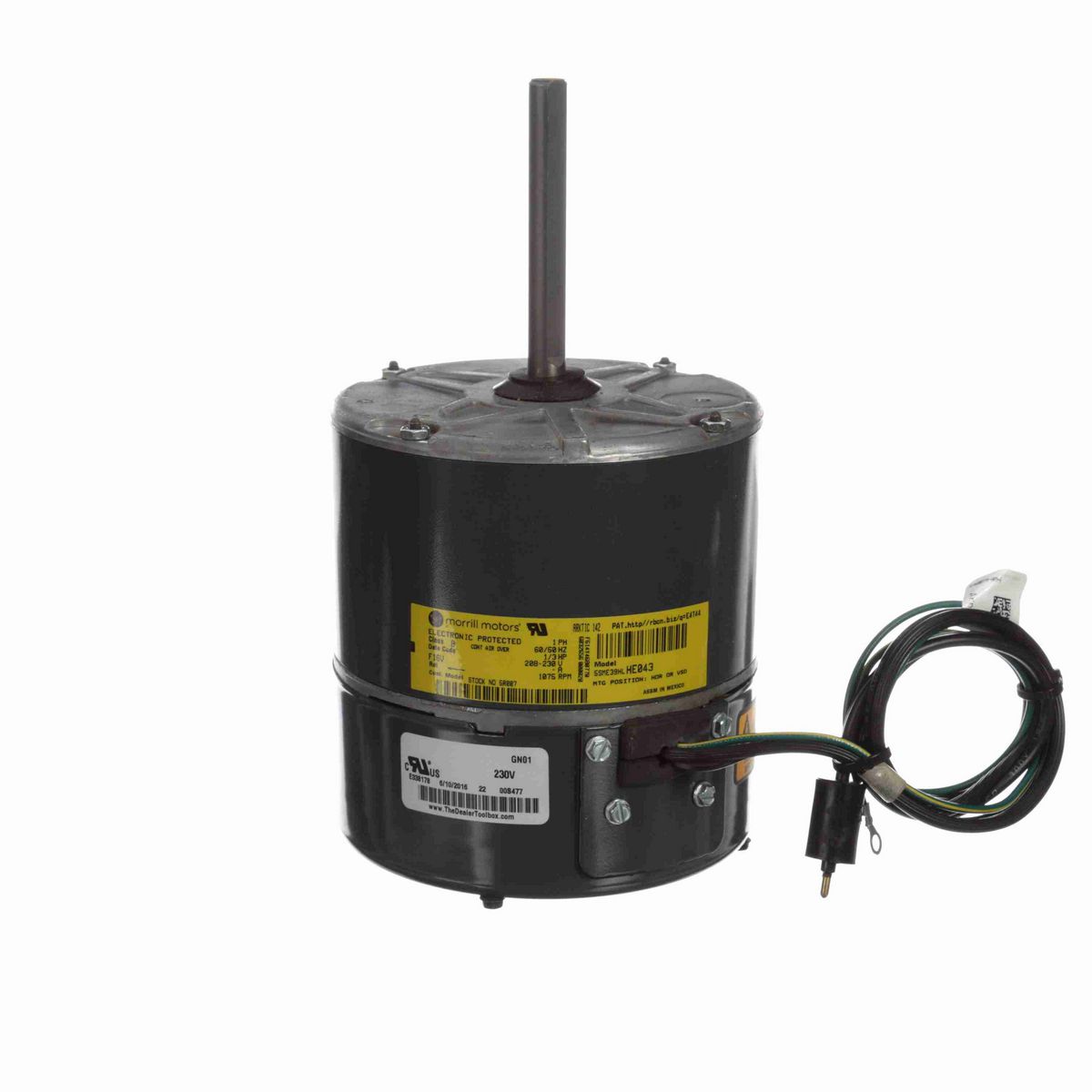

• ARKTIC 142 - Refrigeration Motor
• 5.6" Diameter - 48 Frame
• Electronically Commutated (ECM)
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation
• Ball Bearing
• 1/2" Diameter Shaft with Flat
• 26.5 Lead Length with Molded Plug
• Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1/3 Hp
Output KW	0.25 kW
Voltage	208-230 V
Speed	1075 rpm
Service Factor	1
Frame	48
Enclosure	Totally Enclosed Air Over
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60/50 Hz
Current	3.5 A
Duty	Continuous Air Over
Insulation Class	B
UL	No
CSA	N
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Electronically Commutated Motor
Poles	12
Rotation	Counterclockwise
Mounting	Round
Motor Orientation	Hor
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	9.91 in
Frame Length	3.07 in
Shaft Diameter	0.500 in
Shaft Extension	3.92 in

General Specifications

UPC	815585024750
Weight	12.38 LB
Packaged Length	14.12 IN
Packaged Width	6.38 IN
Packaged Height	6.50 IN
Country of Origin	Mexico
