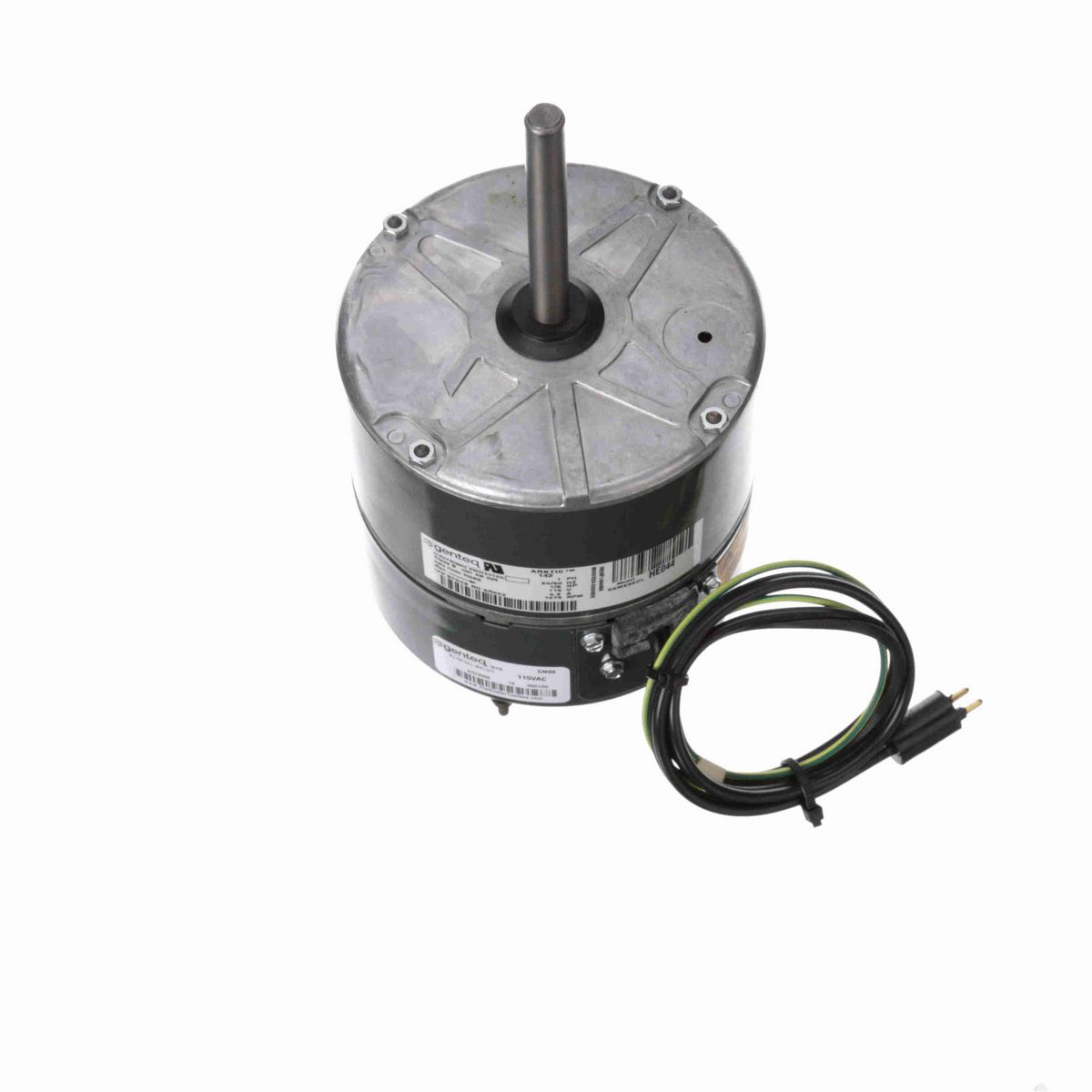

• ARKTIC 142 - Refrigeration Motor
• 5.6" Diameter - 48 Frame
• Electronically Commutated (ECM)
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation
• Ball Bearing
• 1/2" Diameter Shaft with Flat
• 26.5 Lead Length with Molded Plug
• Extended Studs Opposite Lead End

Nameplate Specifications

Phase	1
Output HP	1/5 Hp
Output KW	0.15 kW
Voltage	115 V
Speed	1075 rpm
Service Factor	1
Frame	48
Enclosure	Totally Enclosed Air Over
Thermal Protection	No Protection
Ambient Temperature	40 °C
Frequency	60 Hz
Current	4.6 A
Duty	Continuous Air Over
Insulation Class	B
UL	Recognized
CSA	N
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Electronically Commutated Motor
Poles	12
Rotation	Clockwise
Mounting	Extended Studs
Motor Orientation	Hor
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	9.41 in
Frame Length	2.57 in
Shaft Diameter	0.500 in
Shaft Extension	3.92 in

General Specifications

UPC	815585024729
Weight	10.00 LB
Packaged Length	14.12 IN
Packaged Width	6.38 IN
Packaged Height	6.50 IN
