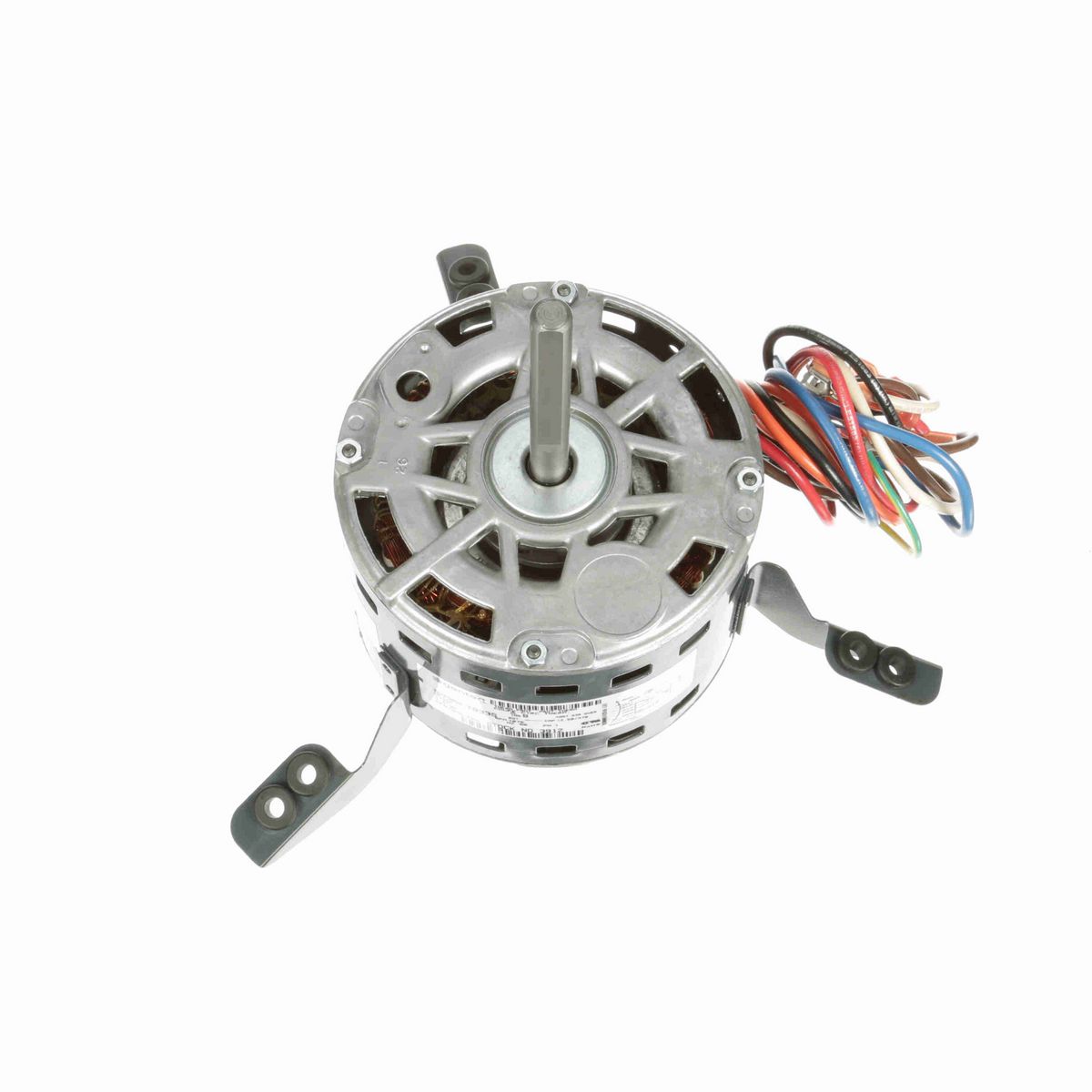

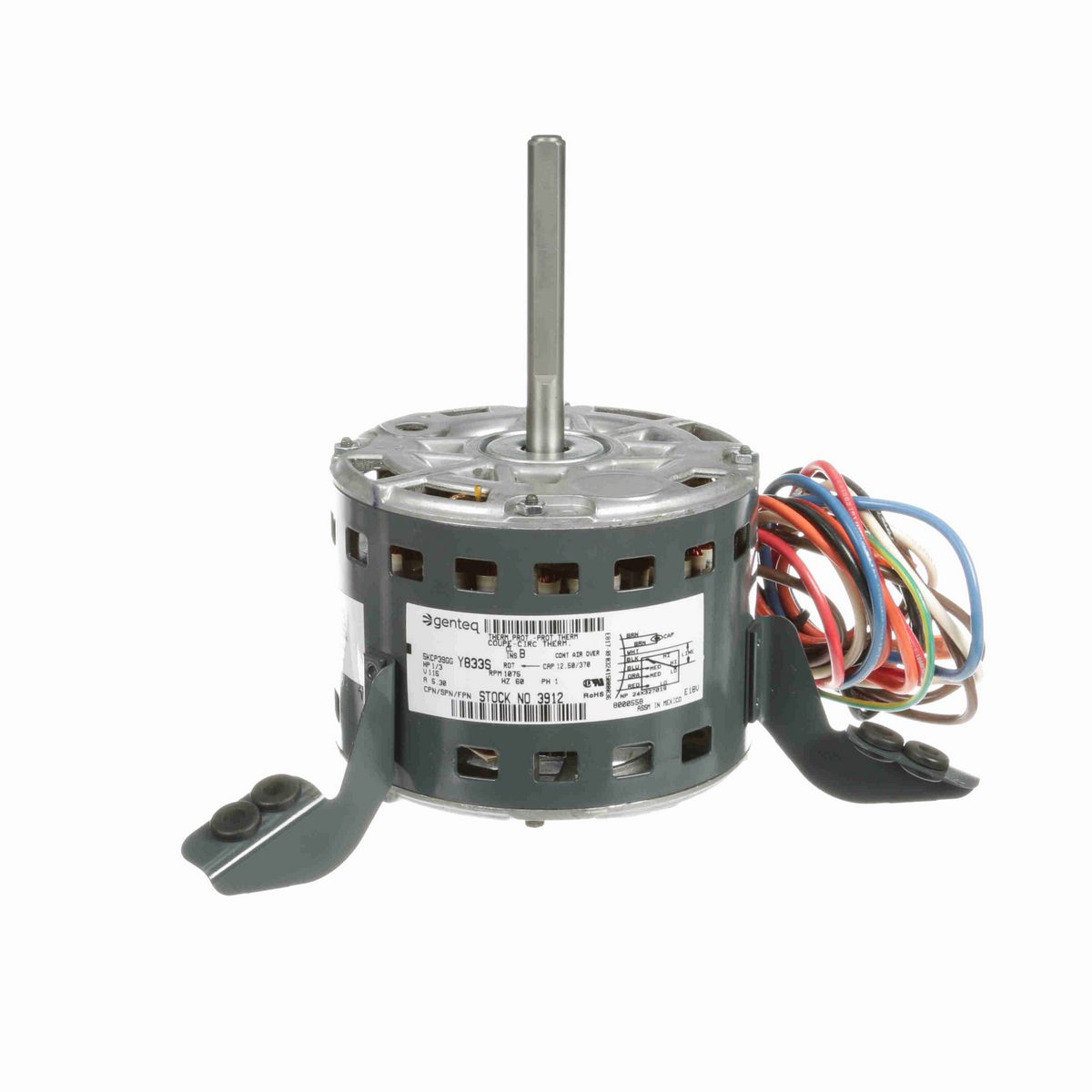

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 12.5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Shaft with Flat
• 25" Leads
• Torsion Flex Lug Mounting

Nameplate Specifications

Phase	1
Output HP	1/3 Hp
Voltage	115 V
Speed	1075 rpm
Service Factor	1
Frame	48
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	5.30 A
Duty	Continuous Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	4

Technical Specifications

Electrical Type	Permanent Split Capacitor
Poles	6
Rotation	Counterclockwise
Mounting	Lug
Motor Orientation	Any
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	8.31 in
Frame Length	3.57 in
Shaft Diameter	0.500 in
Shaft Extension	4.00 in

General Specifications

UPC	815585023760
Weight	12.80 LB
Packaged Length	14.12 IN
Packaged Width	10.88 IN
Packaged Height	9.94 IN
