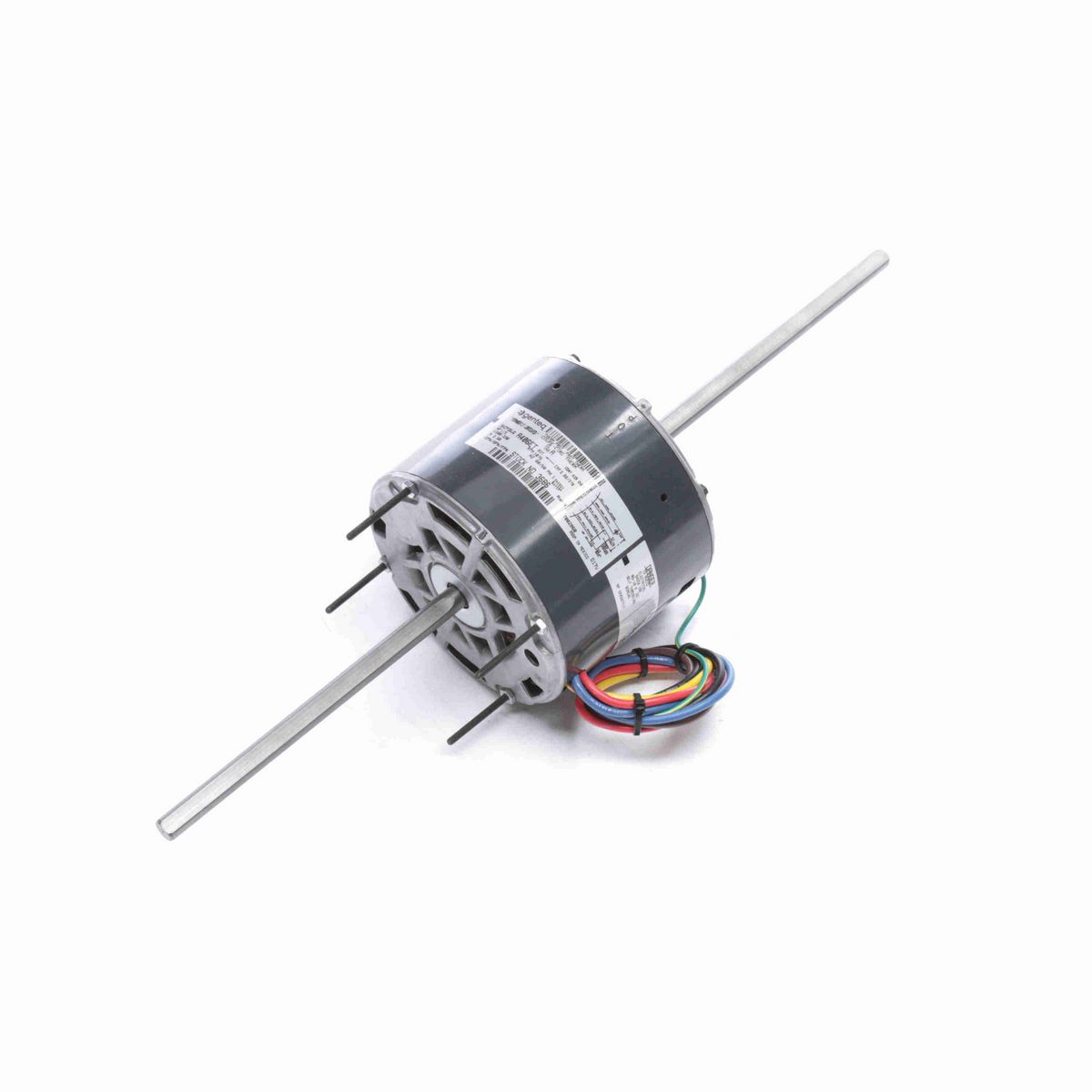

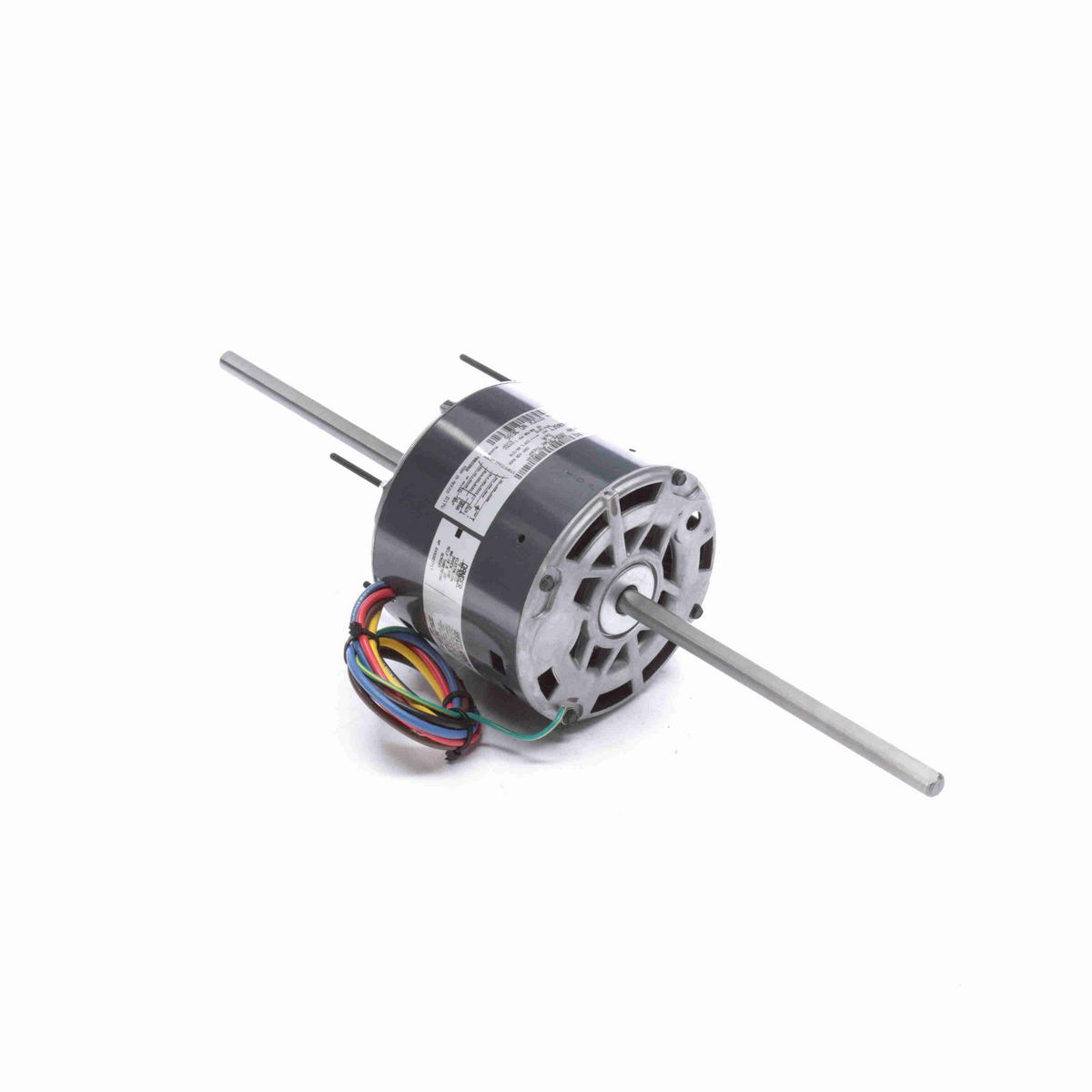

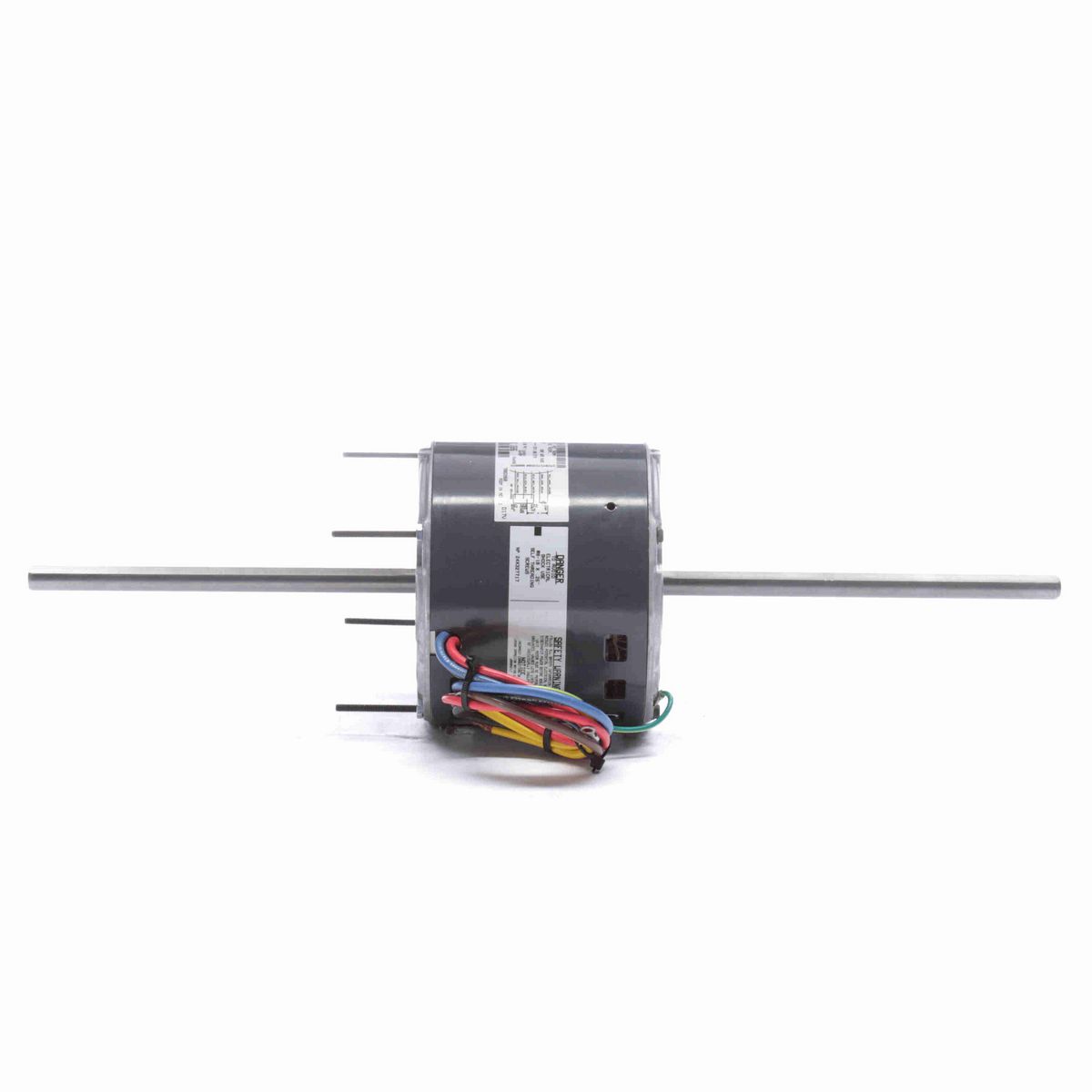

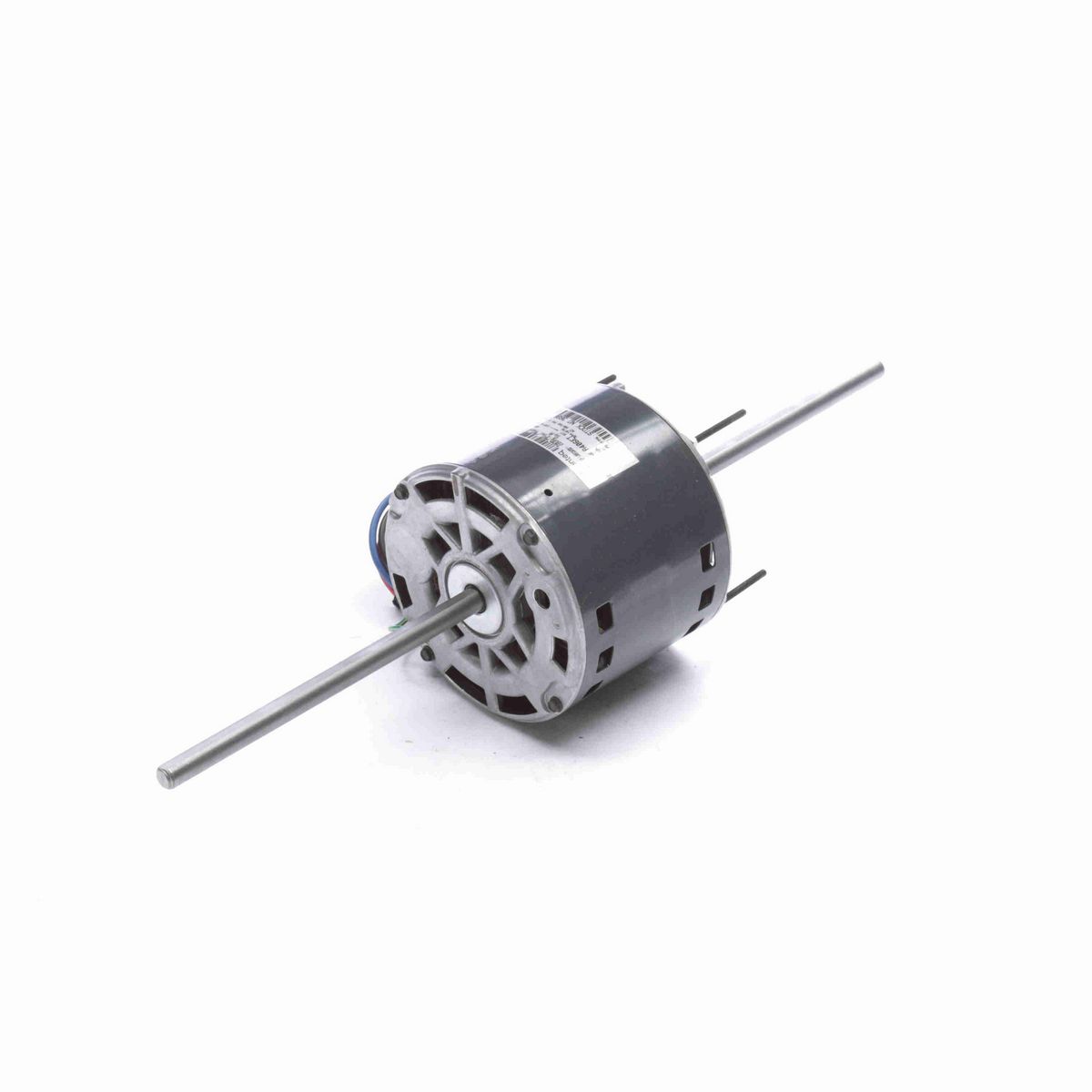

• Fan Coil - Room Air Conditioner - Blower Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• Dual Extension, 1/2" Diameter Shaft with Flat
• 14" Leads
• Extended Studs Lead End, Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1/3 Hp
Output KW	0.25 kW
Voltage	208-230 V
Speed	1075 rpm
Service Factor	1
Frame	48
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60/50 Hz
Current	2.50 A
Duty	Continuous Air Over
Insulation Class	A
UL	Recognized
CSA	N
CE	N
Number of Speeds	3

Technical Specifications

Electrical Type	Permanent Split Capacitor
Poles	6
Rotation	Counterclockwise
Mounting	Extended Studs
Motor Orientation	Hor
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	20.00 in
Frame Length	4.07 in
Shaft Diameter	0.500 in
Shaft Extension	7.75 in

General Specifications

UPC	815585023647
Weight	13.80 LB
Packaged Length	21.62 IN
Packaged Width	6.38 IN
Packaged Height	6.50 IN
