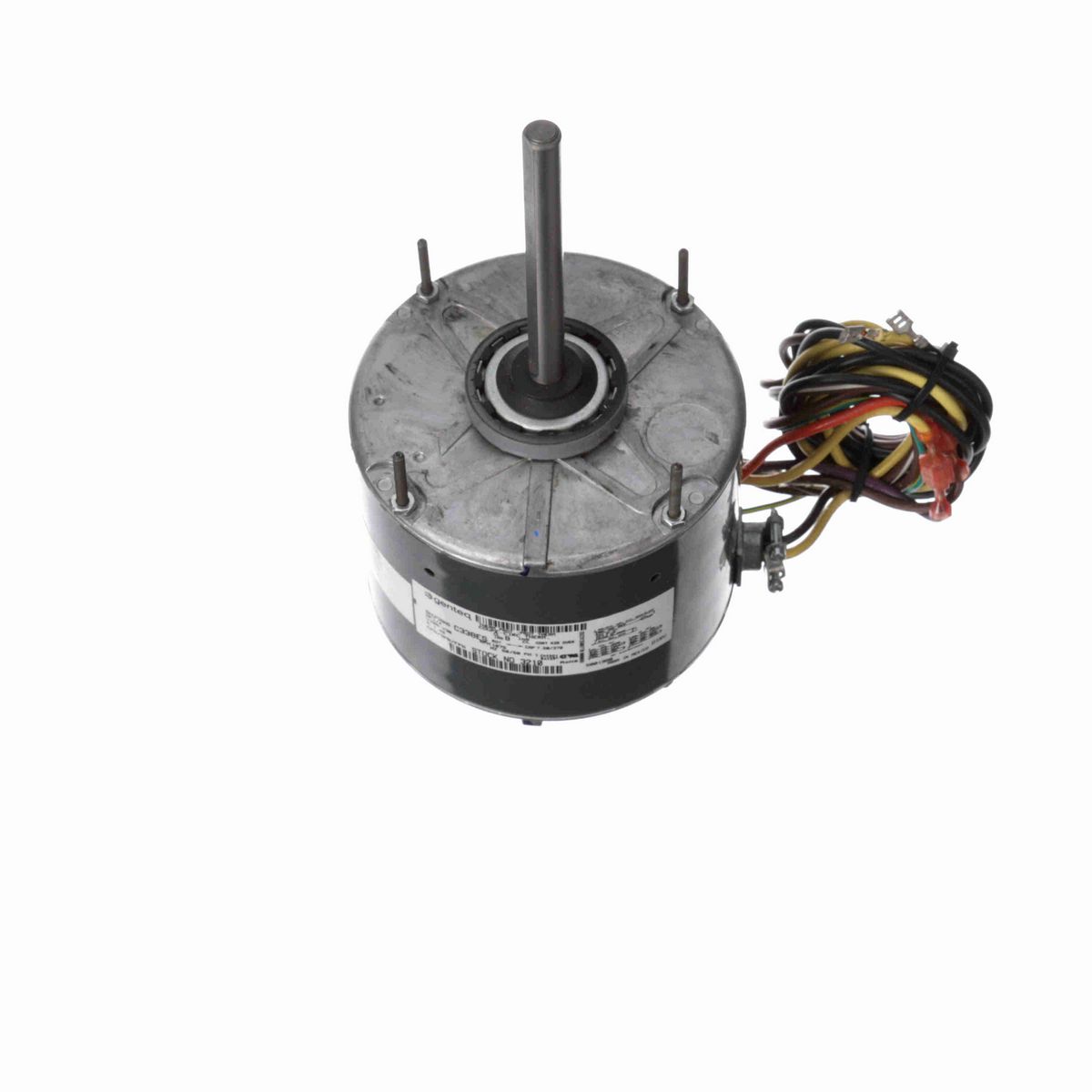

• Unit Heater Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Flat
• 60" Leads
• Resilient Ring Mounting, Extended Clampbolts

Nameplate Specifications

Phase	1
Output HP	1/4 Hp
Voltage	208-230 V
Speed	1075 rpm
Service Factor	1
Frame	48
Enclosure	Totally Enclosed Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	1.40 A
Duty	Continuous Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Poles	6
Rotation	Reversible
Mounting	Resilient Rings
Motor Orientation	Any
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	10.15 in
Frame Length	3.82 in
Shaft Diameter	0.500 in
Shaft Extension	5.00 in

General Specifications

UPC	815585021667
Weight	14.00 LB
Packaged Length	14.06 IN
Packaged Width	6.04 IN
Packaged Height	6.02 IN
