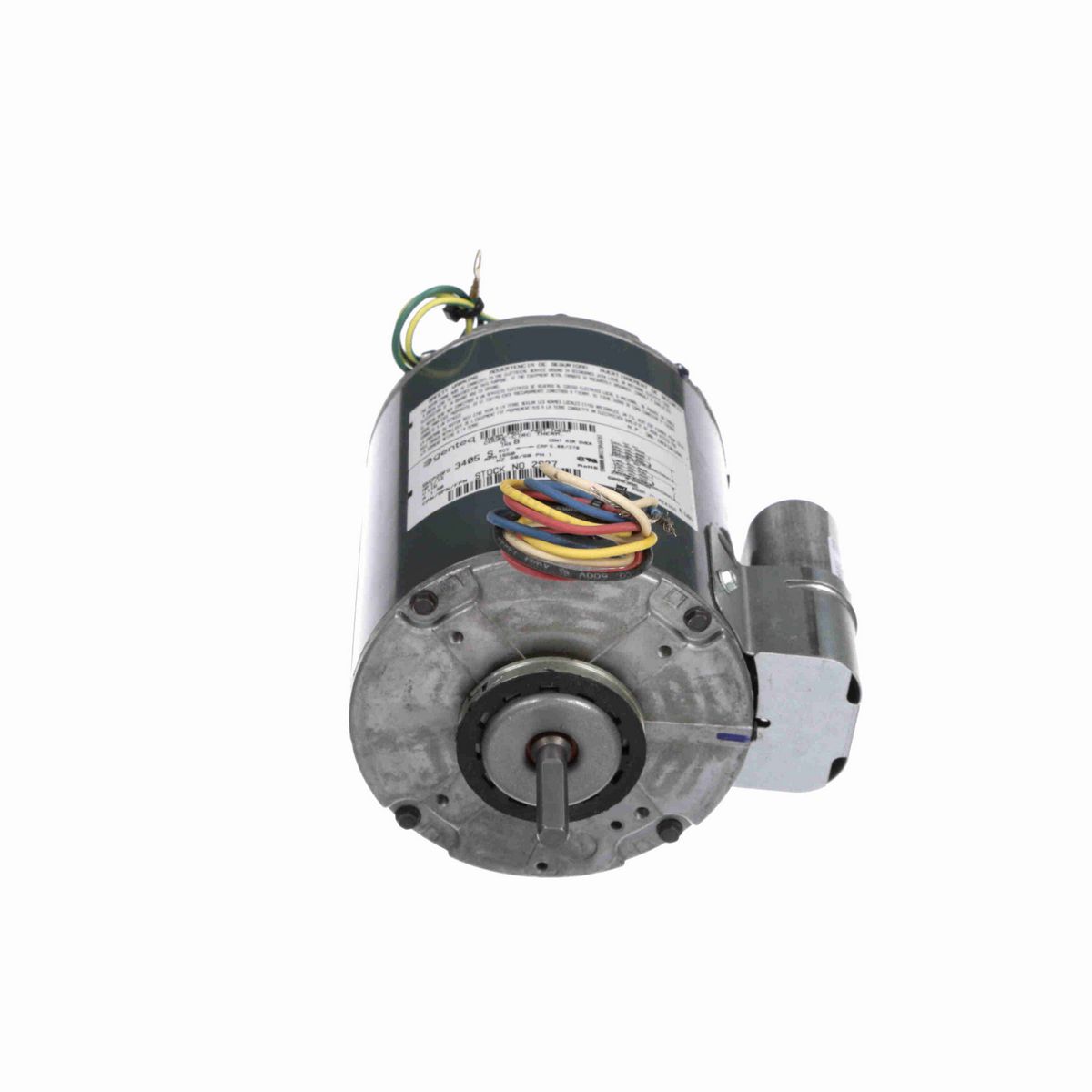

• Commercial Condensing Unit - Space Heater - Unit Heaters and Cooler Motor
• 5" Diameter - 42 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 3/8" Diameter Shaft with Flat
• 12" Leads
• Exended Clampbolts Opposite Shaft End, Resilient Ring

Nameplate Specifications

Phase	1
Output HP	1/12 Hp
Voltage	115 V
Speed	1550 rpm
Service Factor	1
Frame	42
Enclosure	Totally Enclosed Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60/50 Hz
Current	1.60 A
Duty	Continuous Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Poles	4
Rotation	Counterclockwise/Clockwise
Mounting	Resilient Rings
Motor Orientation	Hor
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	7.95 in
Frame Length	5.16 in
Shaft Diameter	0.370 in
Shaft Extension	1.50 in

General Specifications

UPC	815585023418
Weight	10.20 LB
Packaged Length	14.12 IN
Packaged Width	6.38 IN
Packaged Height	6.50 IN
