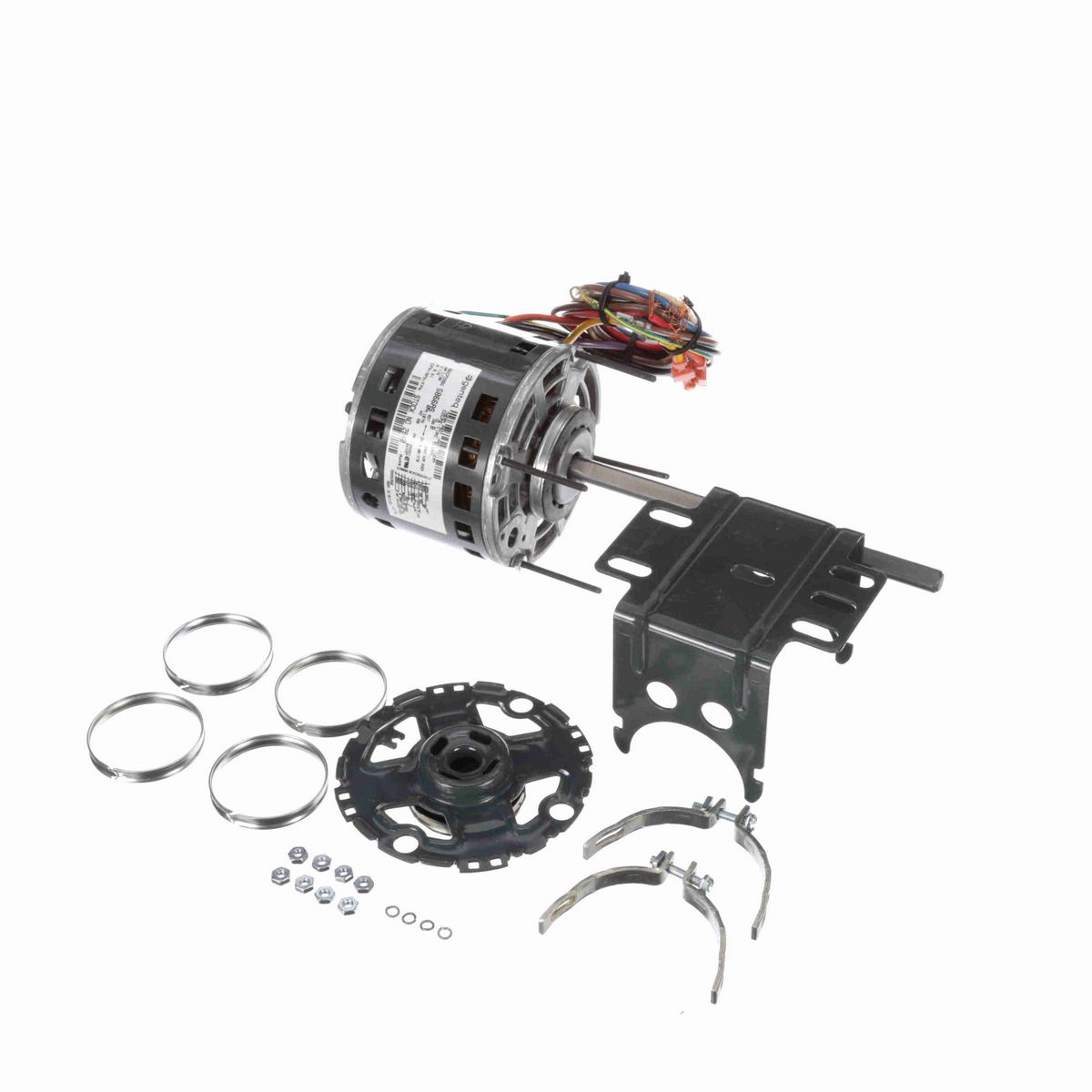

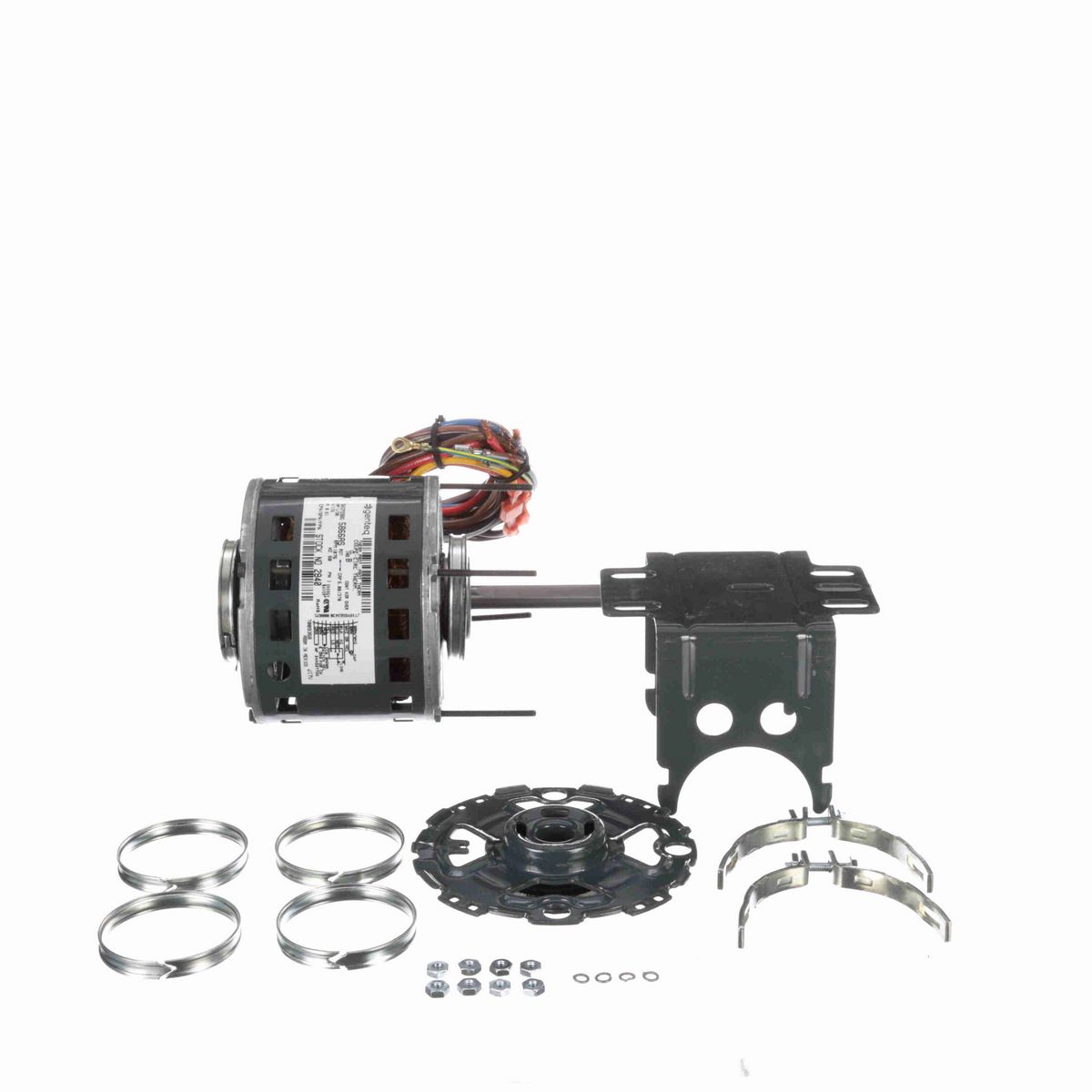

• Direct Drive Fan & Blower Motor
• 5" Diameter - 42 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Shaft with Flat
• 26" Leads
• Resilient Ring Mounting, Extended Clampbolts

Nameplate Specifications

Phase	1
Output HP	1/30 Hp
Output KW	0.02 kW
Voltage	115 V
Speed	1075 rpm
Service Factor	1
Frame	42
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	0.61 A
Duty	Continuous Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	3

Technical Specifications

Electrical Type	Permanent Split Capacitor
Poles	6
Rotation	Counterclockwise/Clockwise
Mounting	Resilient Rings
Motor Orientation	Hor
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	12.45 in
Frame Length	3.16 in
Shaft Diameter	0.500 in
Shaft Extension	8.00 in

General Specifications

UPC	815585020844
Weight	9.40 LB
Packaged Length	15.13 IN
Packaged Width	5.50 IN
Packaged Height	5.50 IN
Country of Origin	Mexico
