Датчик силы нажатия Bosch Rexroth FS-6-06-1 [R156633001]

Nominal size [mm]

4

Tightening torque [Nm]

166

Connection

Male connector M12x1 4-pin

Outer diameter D [mm]

24.5

Operating load (of the measuring range) [%]

150

Operating temperature (min. … max.)

-30 °C ... +80 °C

Output signal [V]

0.909

Output signal (measuring range) with tolerance

​0+10 V

Output signal with tolerance

0,909 V ±0,03

Output signal tolerance [V]

±0.03

Bandwidth [kHz]

1

Bandwidth with tolerance

1 kHz ±0,2

Bandwidth tolerance [kHz]

±0.2

Breaking load (of the measuring range) [%]

300

Weight [kg]

0.42

Hysteresis (of the measuring range) [%]

​0.1

Compensated temperature

-20 °C ... +80 °C

Maximum operating temperature [°C]

+80

Minimum operating temperature [°C]

-30

Non-linearity (of the measuring range) [%]

±0.3

Protection class

IP67

Current consumption [mA]

8

Temperature drift zero point (of the measuring range per Kelvin) [%]

​0.02

Temperature drift above measuring range (of the measuring range per Kelvin) [%]

​0.02

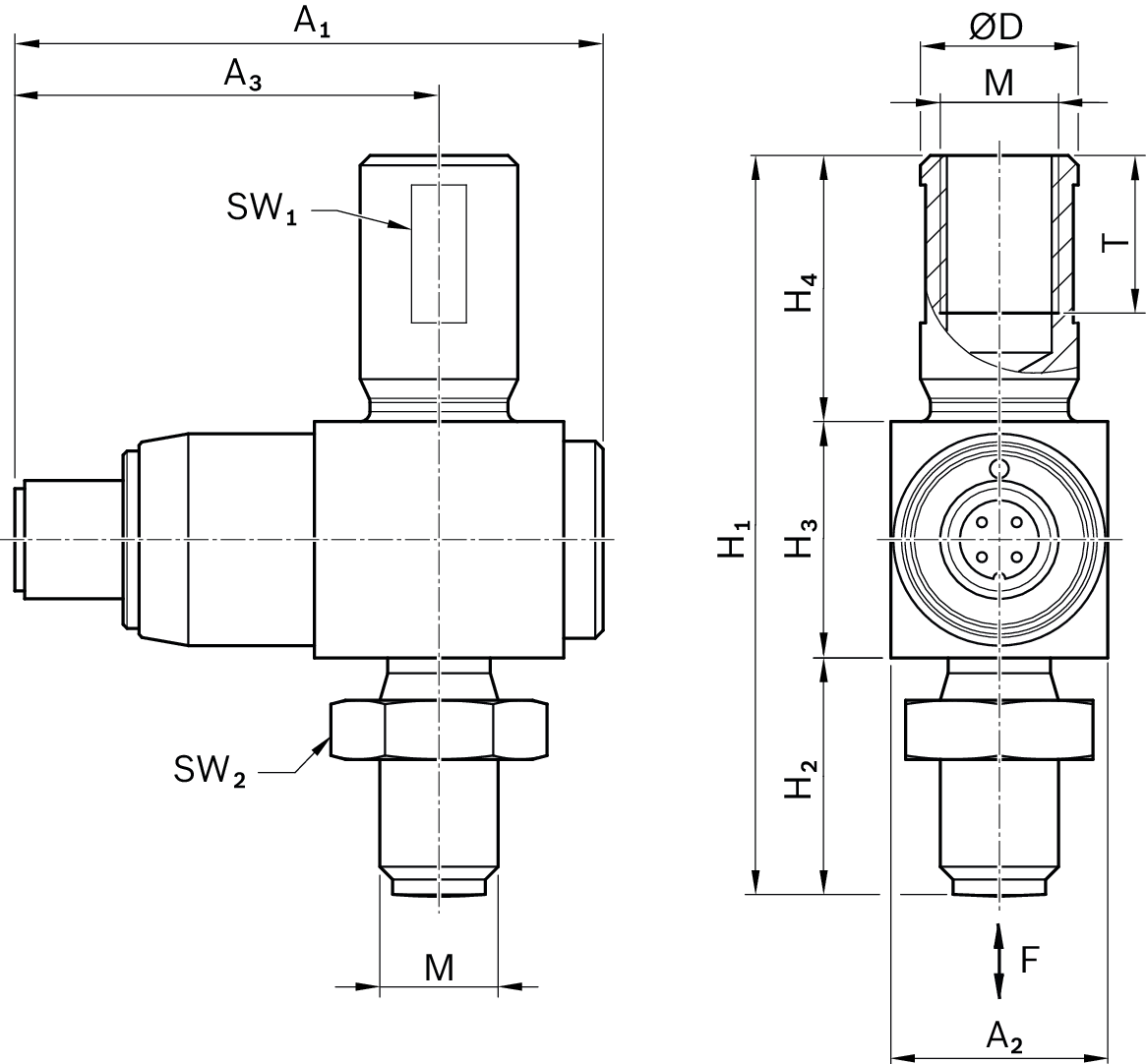

Dimension A1 (profiled rail systems) [mm]

69

Dimension A2 (profiled rail systems) [mm]

22

Dimension D [mm]

24.5

Dimension H1 (profiled rail systems) [mm]

100

Dimension H3 [mm]

33

Dimension H4 [mm]

35

Dimension SW1 [mm]

22

Dimension SW2 [mm]

24
