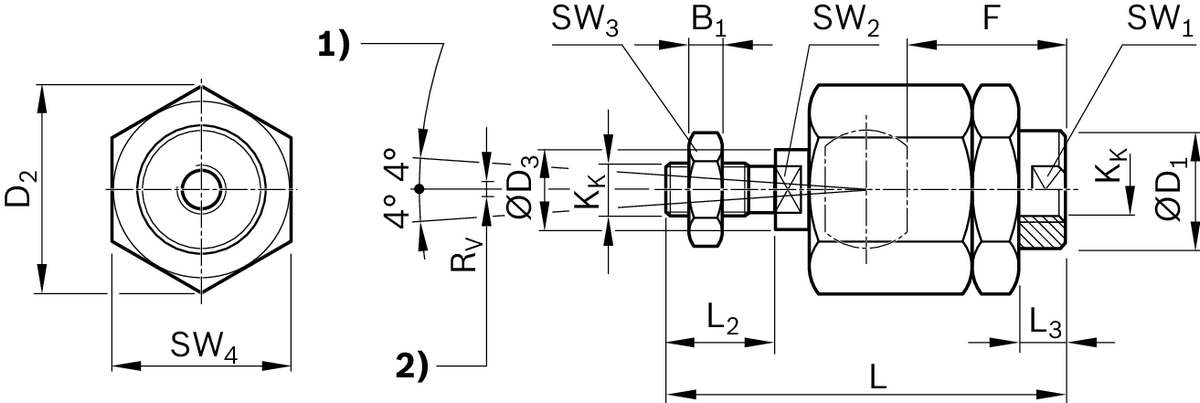

Гибкая муфта Bosch Rexroth FLEXO EMC50/63 & [R349938100]

Fastening elements for electromechanical cylinders

Flexible coupling

Nominal size [mm]

50,63

Weight [kg]

0.65

Max. dynamic load [bar]

10300

Surface finishing

galvanized

Material of electromechanical cylinders

Steel

Dimension axial clearance

0.05 mm ... 0.5 mm

Dimension of axial clearance max. [mm]

0.5

Dimension of axial clearance min. [mm]

0.05

Dimension B1 [mm]

8

Dimension D1 [mm]

32

Dimension D2 [mm]

45

Dimension D3 [mm]

22

Dimension F [mm]

30

Dimension KK

M16x1.5 mm

Dimension L

103

Dimension L tolerance [mm]

±2

Dimension L2 [mm]

30

Dimension L3 [mm]

9

Dimension L3 tolerance [mm]

±1

Dimension RV [mm]

1

Dimension SW1 [mm]

30

Dimension SW2 [mm]

20

Dimension SW3 [mm]

24

Dimension SW4 [mm]

41
