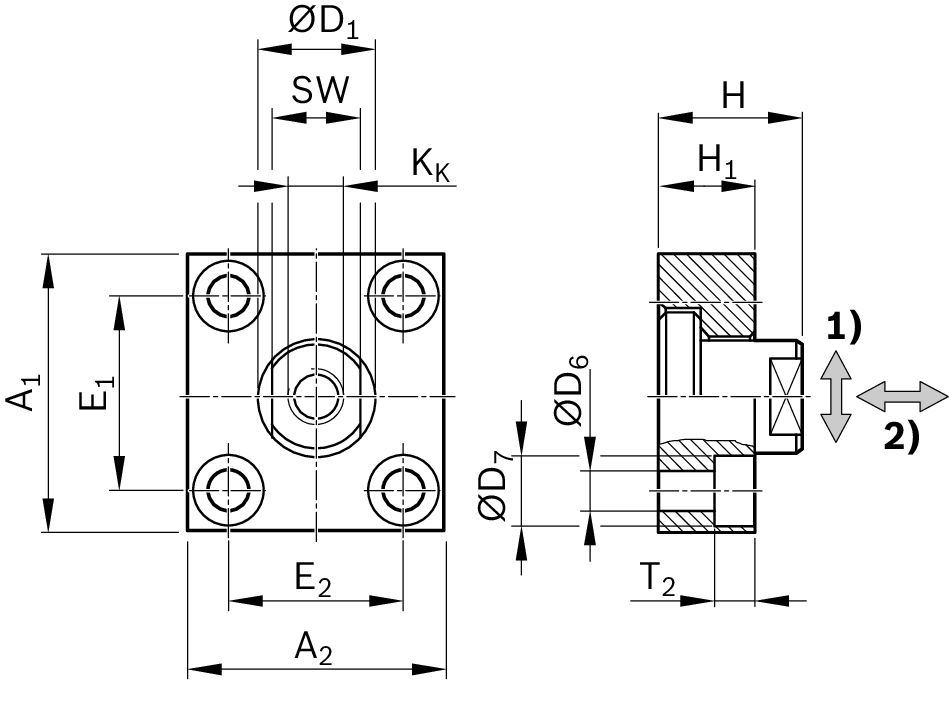

Гибкая муфта с монтажной пластиной Bosch Rexroth EMC32 & [R349939700]

Fastening elements for electromechanical cylinders

Flexible coupling

Nominal size [mm]

32

Weight [kg]

0.23

Footnote max. dynamic load

Fmax EMC

Surface finishing

galvanized

Material of electromechanical cylinders

Steel

Dimension A1 (profiled rail systems) [mm]

60

Dimension A2 (profiled rail systems) [mm]

37

Dimension axial clearance

0.4 mm ... 0.8 mm

Dimension of axial clearance max. [mm]

0.8

Dimension of axial clearance min. [mm]

0.4

Dimension D1 H11 [mm]

20

Dimension D6 H13 [mm]

6.6

Dimension D7 H13 [mm]

11

Dimension E1 [mm]

36

Dimension E1 tolerance [mm]

±0.15

Dimension E2 [mm]

23

Dimension E2 tolerance [mm]

±0.15

Dimension H [mm]

24

Dimension H1 (profiled rail systems) [mm]

15

Dimension KK

M10x1.25 mm

Dimension radial clearance

1.9 mm ... 2.3 mm

Dimension of radial clearance max. [mm]

2.3

Dimension of radial clearance min. [mm]

1.9

Dimension SW [mm]

17

Dimension T2 [mm]

7
