Фланцевый подшипниковый узел Bosch Rexroth FEC-F-B 35 (2+2) [R159B43501]

Nominal size [mm]

30 x 5/10

Tightening torque [Nm]

65

Note: tightening torque

Mounting with hook wrench (DIN 1810)

Dynamic load capacity C [N]

109400

Outer diameter D [mm]

80

Weight [kg]

5.92

Limit speed nmin [min⁻¹]

4950

Limit speed (grease) nmax

4950

Static load capacity C0 [N]

188400

Footnote maximum rotary speed nmax

Guideline values for low load on bearing, good heat dissipation, and suitable grease lubricants with low consistency

Footnote bearing frictional torque with seal

Measured at 50 rpm

Rigidity against tilting Rkl [Nm/mrad]

715

Bearing frictional torque with seal MRb [Nm]

1.1

Rigidity of the bearing (axial) RFB [N/μm]

600

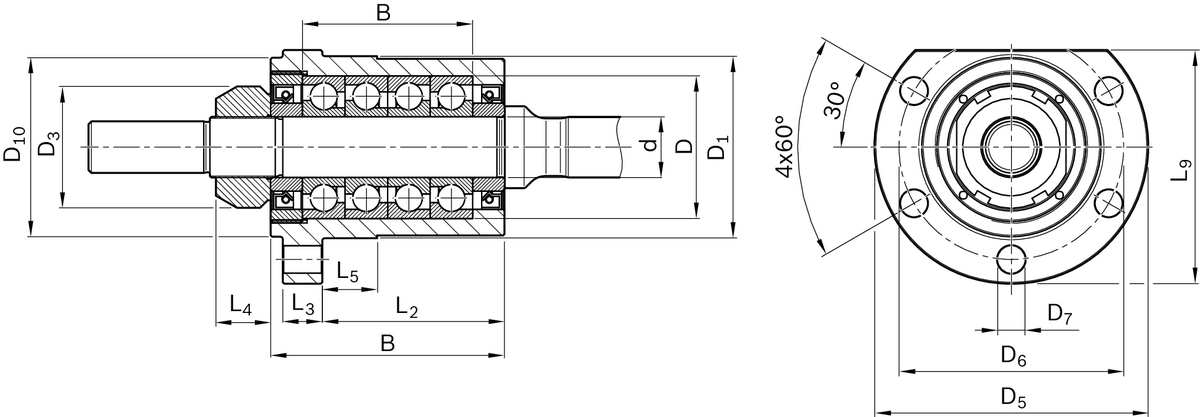

Dimension B (profiled rail systems) [mm]

110

Dimension D [mm]

80

Dimension d [mm]

35

Dimension d tolerance [mm]

-0.012

Dimension D1 h7 [mm]

100

Dimension D10 [mm]

99

Dimension D3 [mm]

54

Dimension D5 [mm]

140

Dimension D6 [mm]

120

Dimension D7 [mm]

13

Dimension L2 [mm]

82

Dimension L3 [mm]

20

Dimension L4 [mm]

22

Dimension L5 [mm]

47

Dimension L9 [mm]

124
