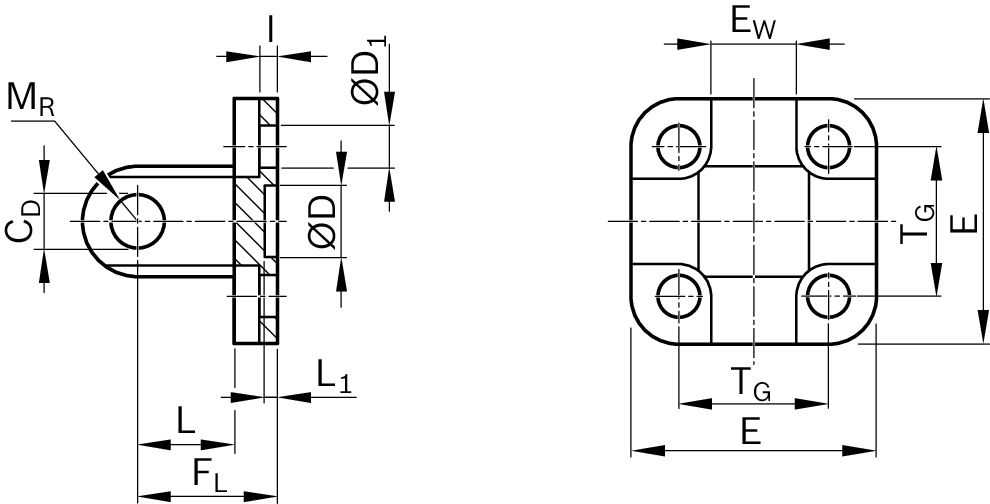

Поворотный фланец Bosch Rexroth EMC40 & [R349948200]

Fastening elements for electromechanical cylinders

Swivel mount

Nominal size [mm]

40

Weight [kg]

0.11

Footnote max. dynamic load

Fmax EMC

Material of electromechanical cylinders

Aluminum

Dimension CD H9 [mm]

12

Dimension D H11 [mm]

35

Dimension D1 H13 [mm]

6.6

Dimension E [mm]

53

Dimension EW [mm]

28

Dimension FL [mm]

25

Dimension FL tolerance [mm]

±0.2

Dimension I [mm]

5.5

Dimension I tolerance [mm]

±0.5

Dimension L min. [mm]

15

Dimension L1 min. [mm]

4.5

Dimension MR max. [mm]

12

Dimension Tg [mm]

38

Dimension TG [mm]

38

Dimension TG tolerance [mm]

±0.2

Dimension TL tolerance [mm]

-0.2,-0.6

Dimension hex socket head cap screws DIN 912

M6x18 mm

Dimension hex socket head cap screw DIN 912 thread diameter

M6

Hex socket head cap screw DIN 912 screw Dimension, length [mm]

18
