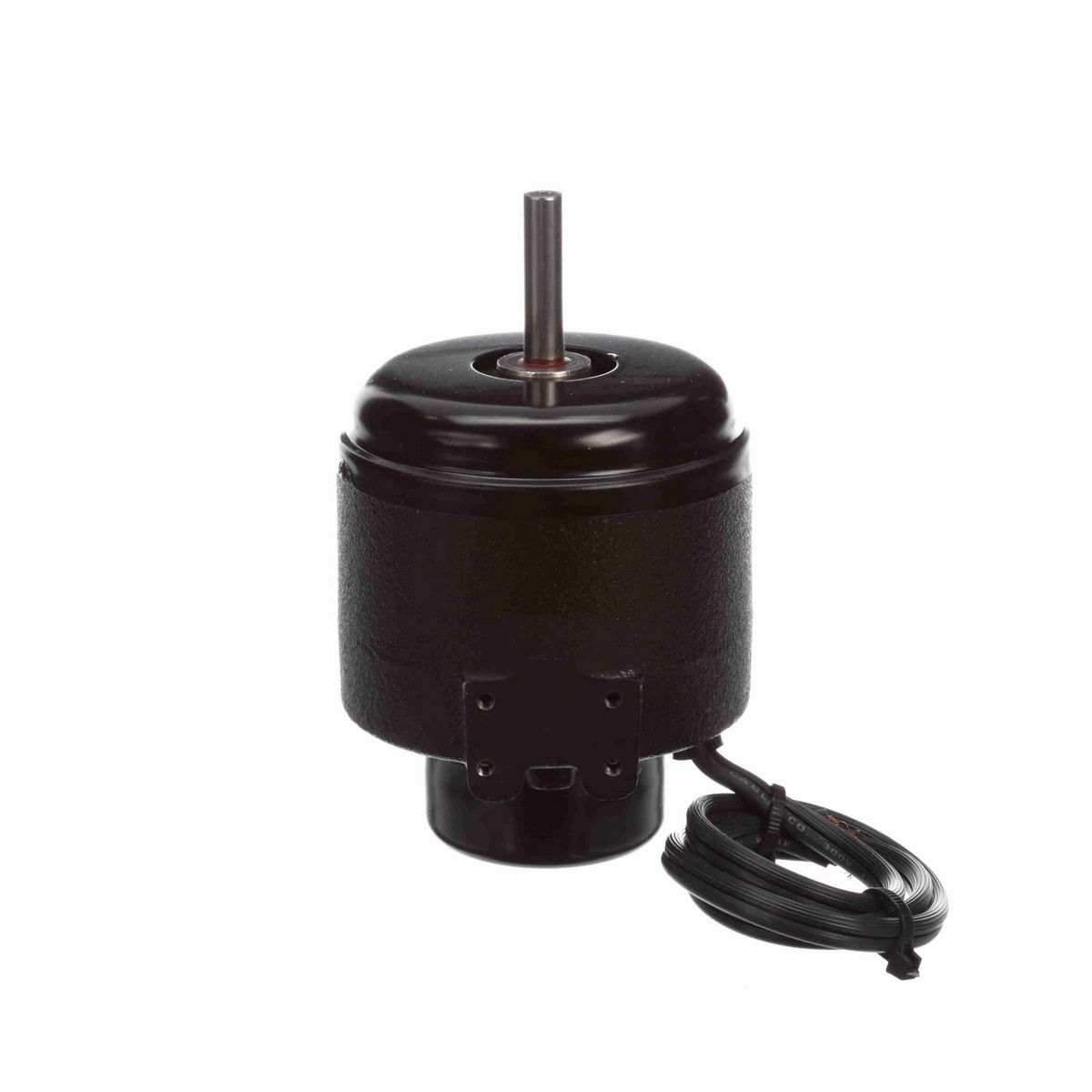

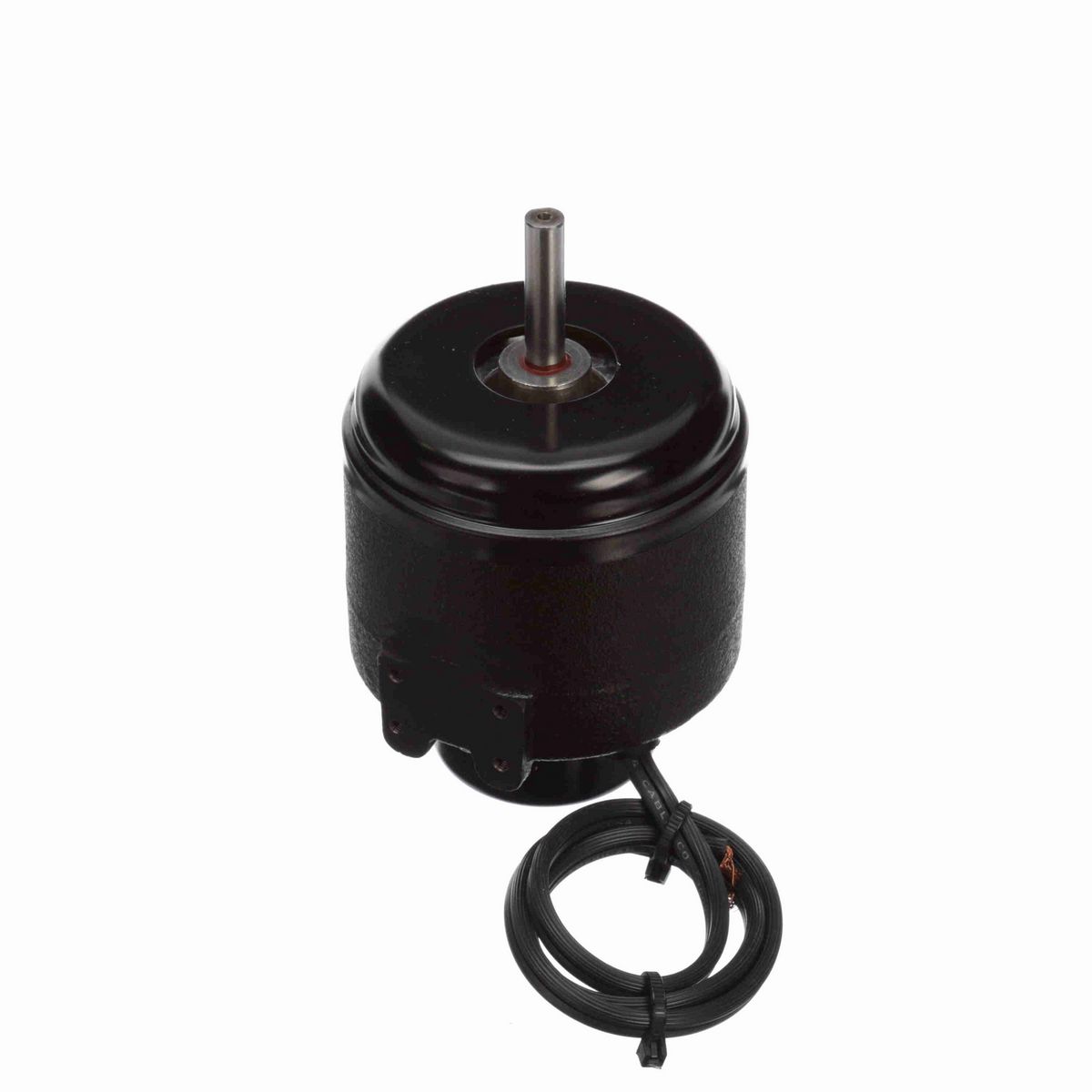

• Refrigeration Motor
• Unit Bearing
• Shaded Pole
• Thermally Protected
• Totally Enclosed Air Over
• Class A Insulation, 40°C Ambient
• Bearing - Unit
• 3/8" Diameter Shaft with Flat
• 22" Leads
• 2 Mounting Feet, 3 Rear Mounting Holes

Nameplate Specifications

Phase	1
Output Watts	50 W
Voltage	230 V
Speed	1500 rpm
Service Factor	1
Frame	UNIT BEARING
Enclosure	Totally Enclosed Air Over
Thermal Protection	Impedance
Ambient Temperature	40 °C
Frequency	60 Hz
Current	0.85 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	4
Rotation	Counterclockwise Opposite Shaft End
Mounting	2 BOSS/OSE 3 HOLES
Drive End Bearing	Unit
Opp Drive End Bearing	Unit
Frame Material	Cast Iron
Shaft Type	Flat
Frame Length	4.79 in
Shaft Diameter	0.375 in
Shaft Extension	1.55 in

General Specifications

UPC	786674071774
Weight	5.87 LB
Packaged Length	7.00 IN
Packaged Width	3.88 IN
Packaged Height	3.88 IN
