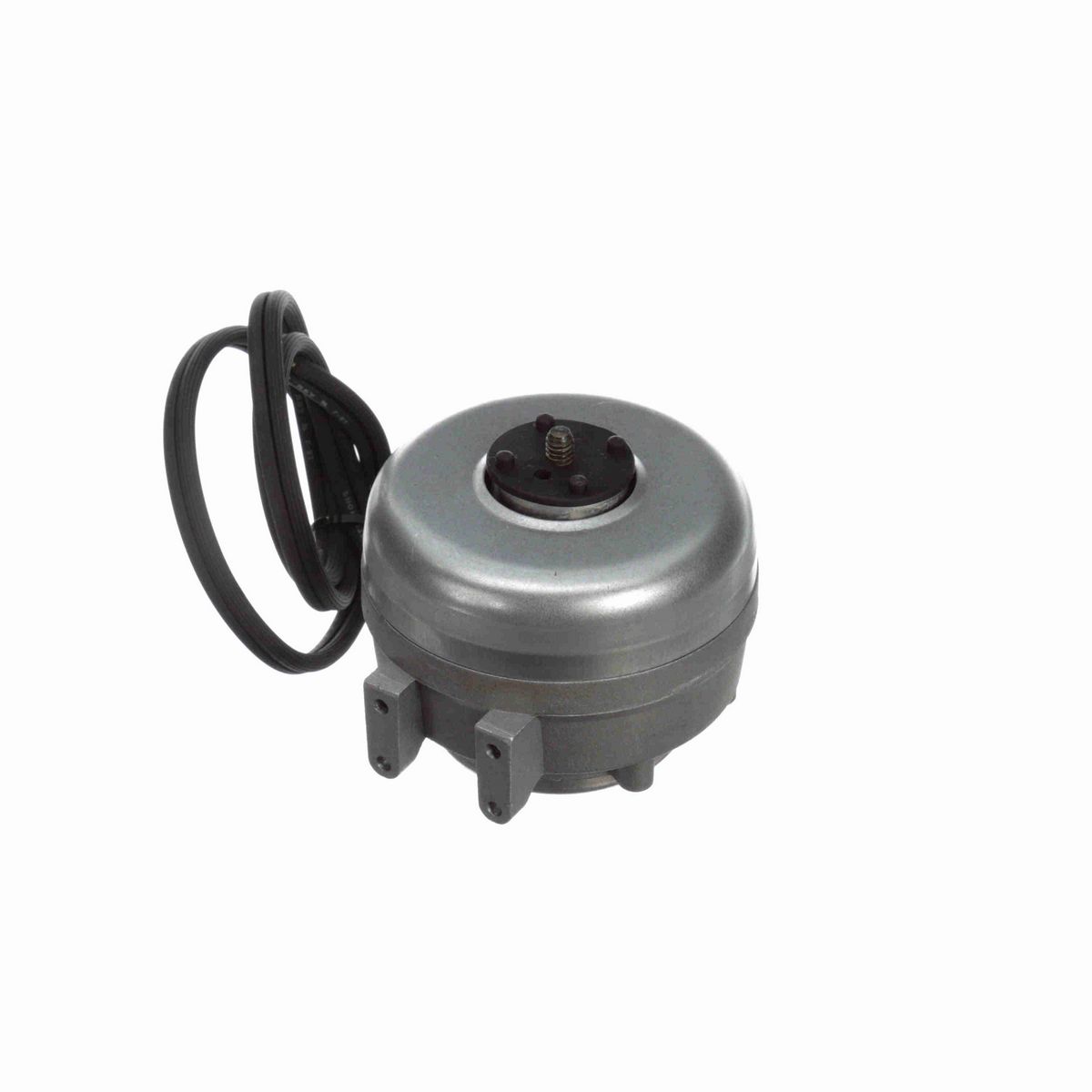

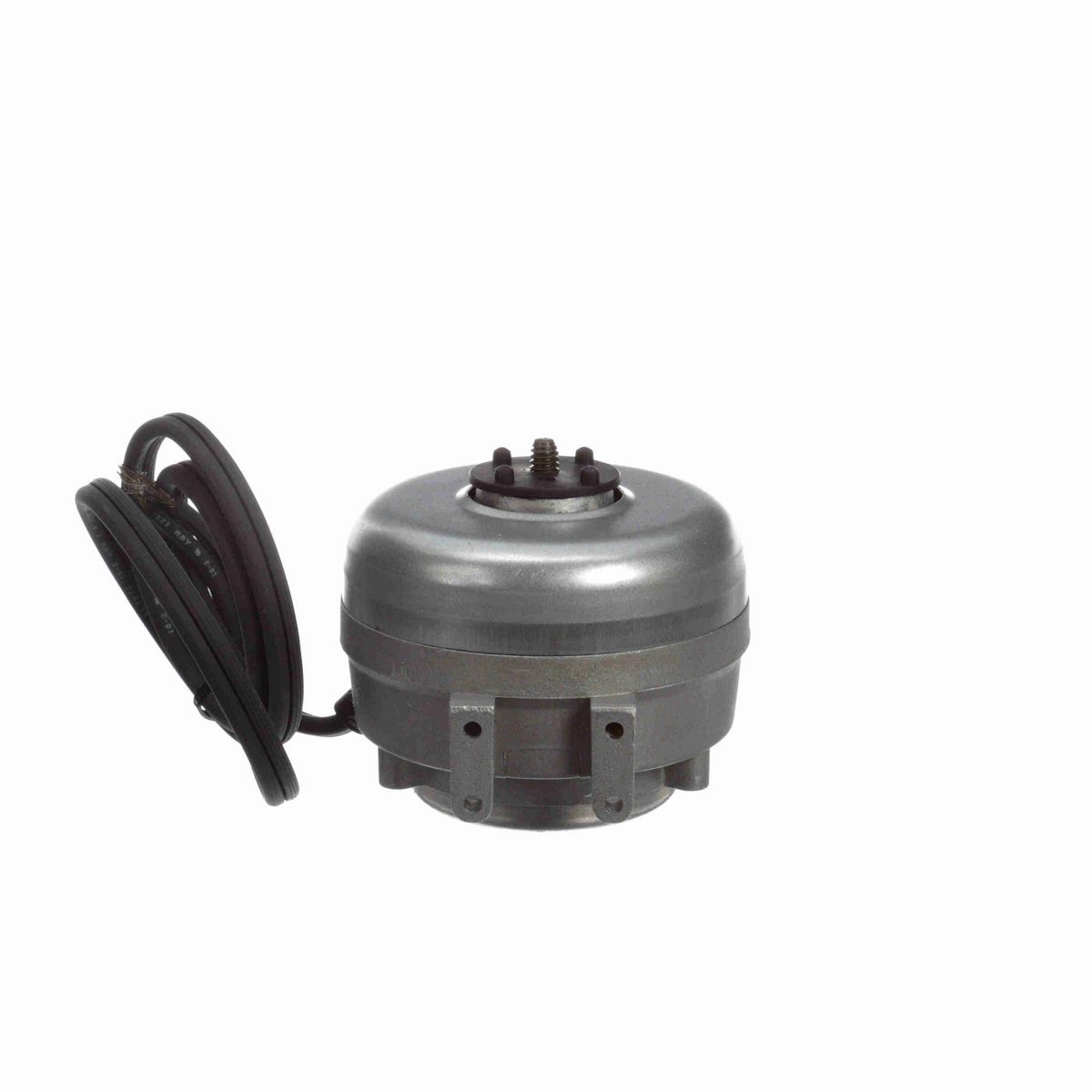

• Refrigeration Motor
• Unit Bearing
• Shaded Pole
• Impedance Protected
• Totally Enclosed Air Over
• Class B Insulation, 40°C Ambient
• Bearing - Unit
• 1/4 x 20 Threaded Shaft
• 28"  Leads with .05" Strip
• 2 Mounting Feet, 5 Rear Mounting Holes

Nameplate Specifications

Phase	1
Output Watts	4 W
Voltage	230 V
Speed	1450 rpm
Service Factor	1.0
Frame	UNIT BEARING
Enclosure	Totally Enclosed Air Over
Thermal Protection	Impedance
Ambient Temperature	40 °C
Frequency	60/50 Hz
Current	0.14 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	4
Rotation	Clockwise Opposite Shaft End
Mounting	2 BOSS/OSE 5 HOLES
Drive End Bearing	Unit
Opp Drive End Bearing	Unit
Frame Material	Aluminum
Shaft Type	Threaded
Frame Length	2.87 in
Shaft Diameter	1/4x20 in
Shaft Extension	.415 in

General Specifications

UPC	786674070029
Weight	1.86 LB
Packaged Length	4.25 IN
Packaged Width	4.50 IN
Packaged Height	4.00 IN
Country of Origin	China
