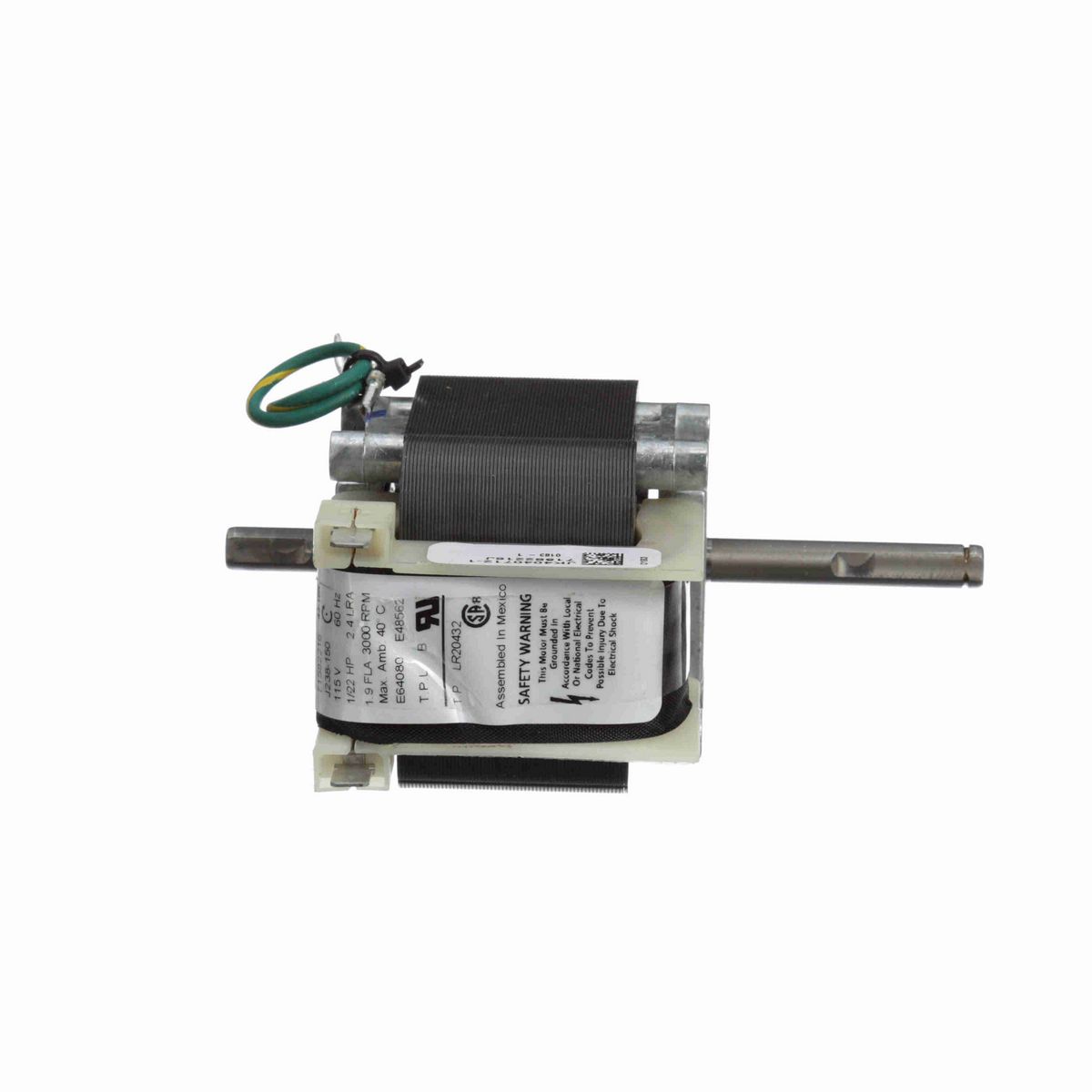

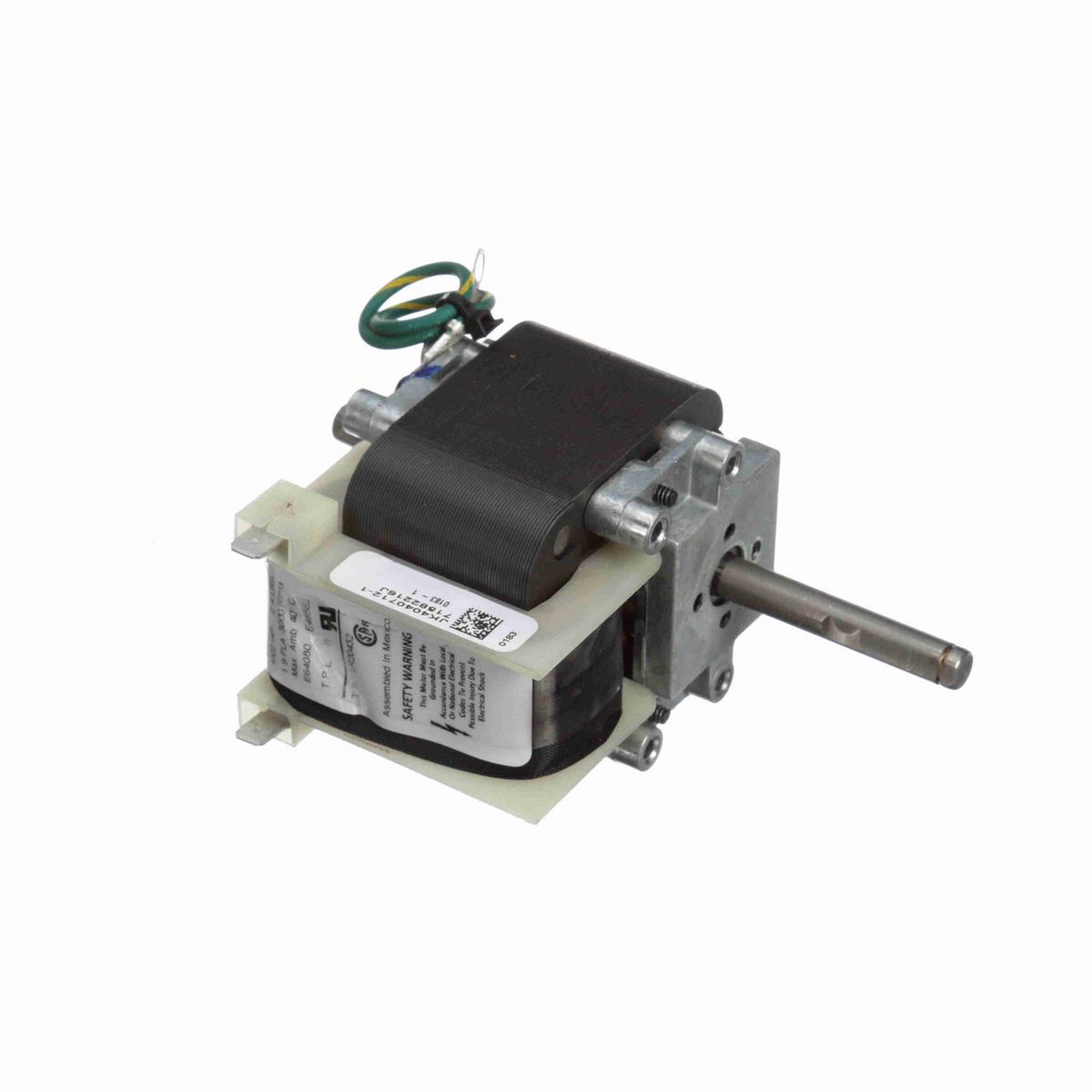

• Refrigeration Motor
• C-Frame
• Shaded Pole
• Thermally Protected, One-Shot Fuse
• Open Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• .3116" Diameter Double Shaft with Flat
• Power Quick Connect Terminal
• (2) Tapped Screw Holes

Nameplate Specifications

Phase	1
Output HP	1/22 Hp
Output KW	0.04 kW
Voltage	115 V
Speed	3000 rpm
Frame	C-FRAME
Enclosure	Open Enclosed
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	1.9 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	2
Rotation	Clockwise
Mounting	Extended Studs
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Na
Shaft Type	Flat & Groove
Overall Length	5.18 in
Shaft Diameter	0.311 in
Shaft Extension	1.90 in

General Specifications

UPC	818508021768
Weight	3.05 LB
Packaged Length	5.56 IN
Packaged Width	5.56 IN
Packaged Height	3.25 IN
Country of Origin	Mexico
