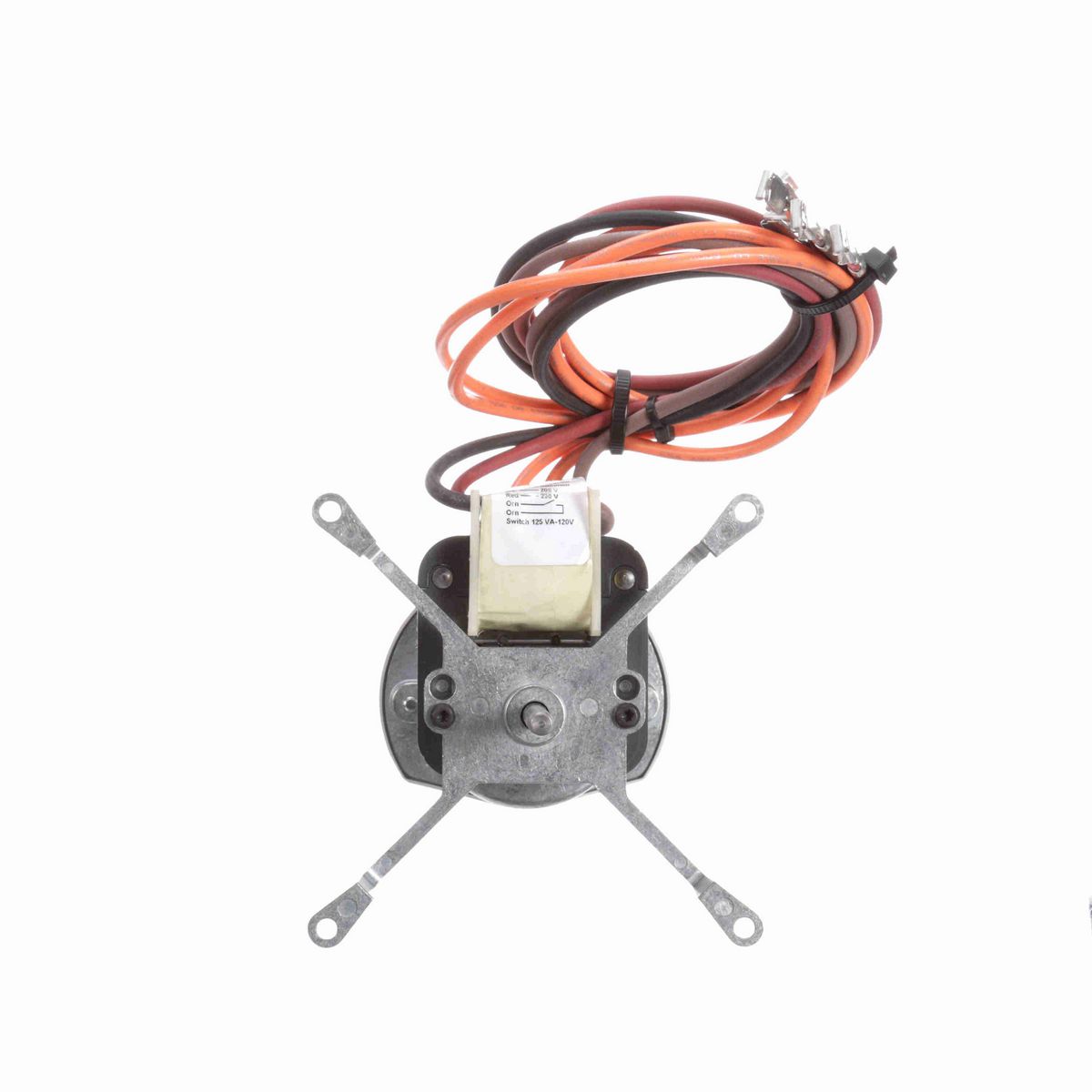

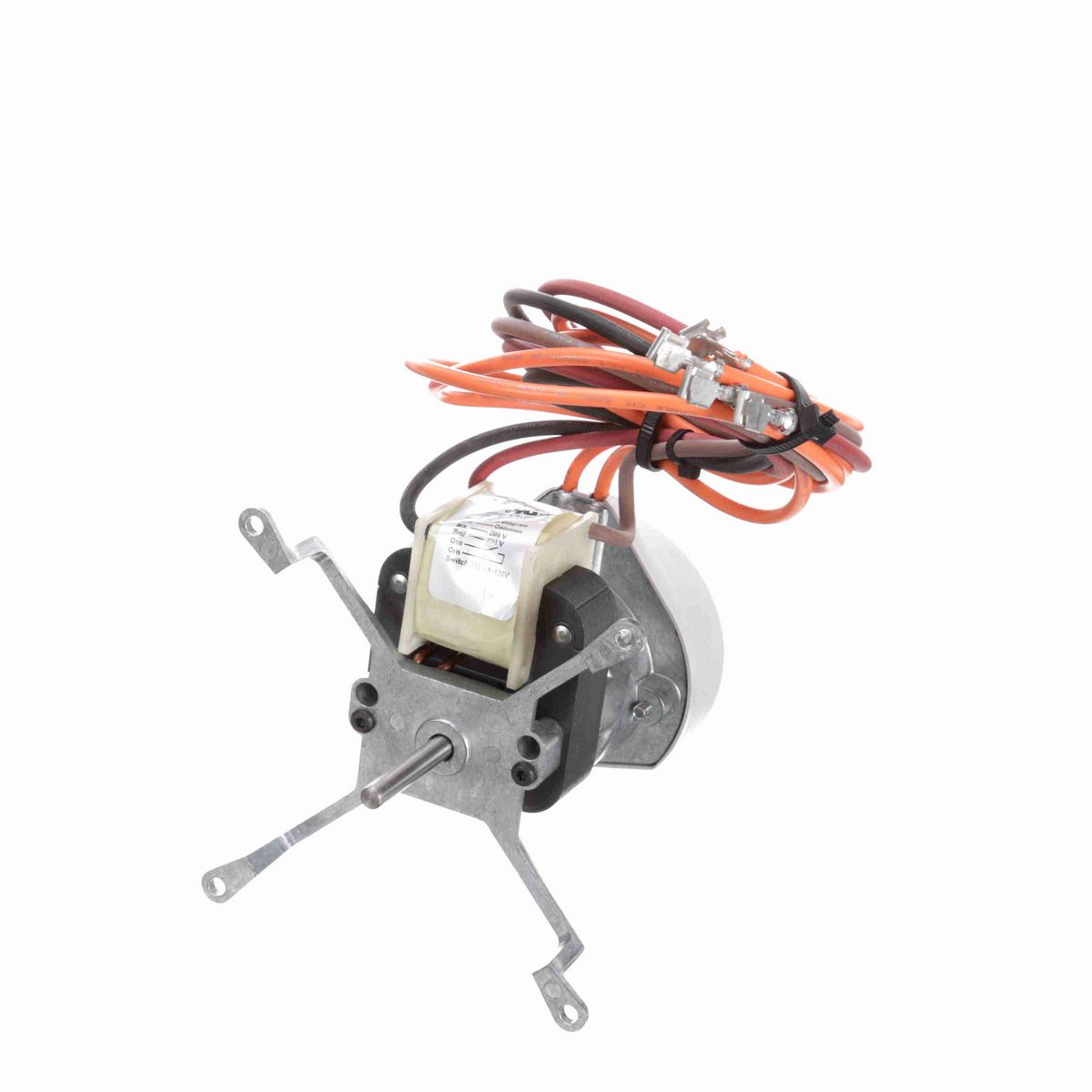

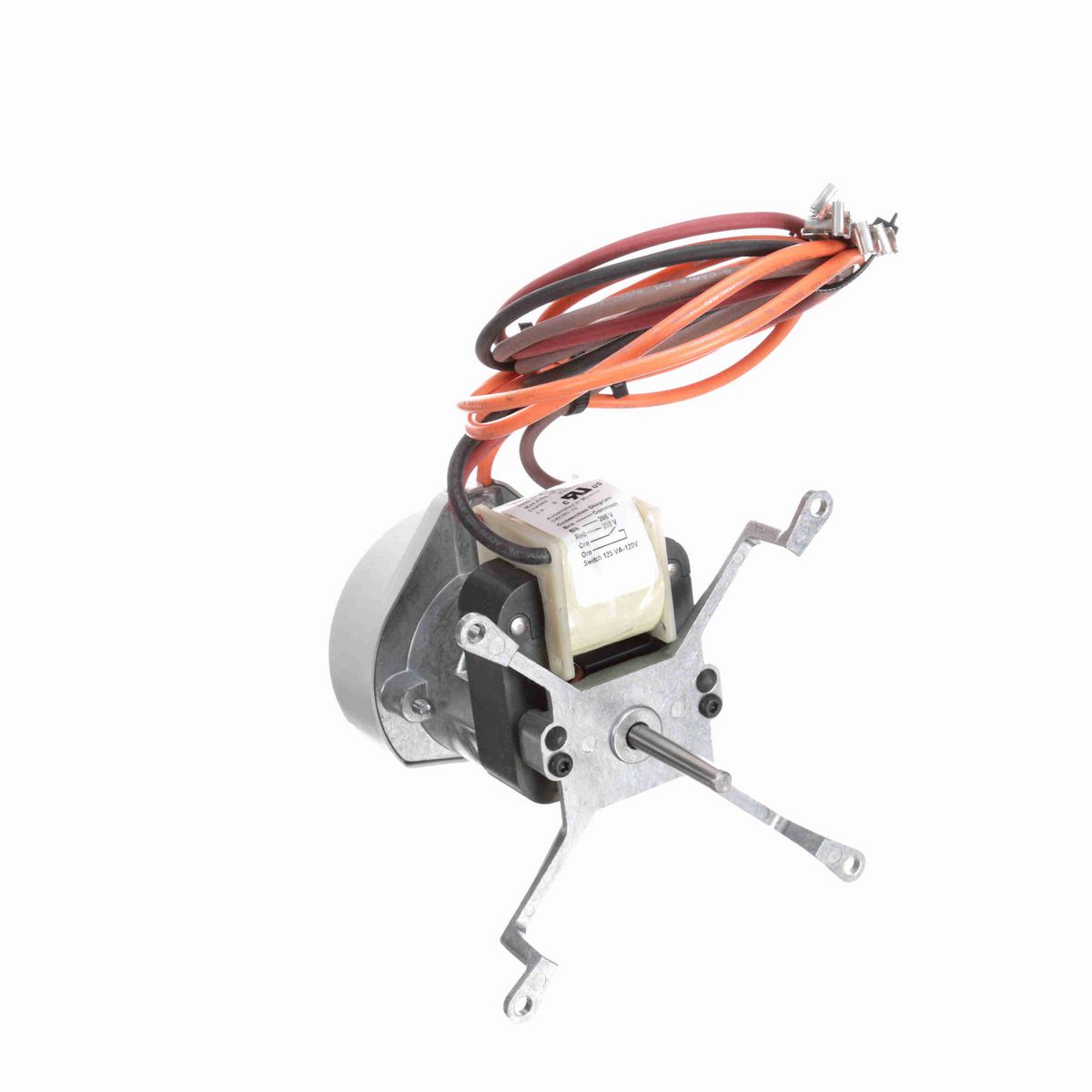

• OEM Direct Replacement Motor
• C-Frame
• Shaded Pole
• Thermally Protected, One-Shot Fuse
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/4" Diameter Shaft
• 30"/28" Leads with Flag Terminal
• Flex Mount

Nameplate Specifications

Phase	1
Output HP	1/200 Hp
Output KW	0.01 kW
Voltage	208/230 V
Speed	3000 rpm
Service Factor	1
Frame	C-FRAME
Enclosure	Open Enclosed
Thermal Protection	Impedance
Ambient Temperature	40 °C
Frequency	60 Hz
Current	.25 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	N
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	2
Rotation	Clockwise
Mounting	Bracket
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Na
Shaft Type	Round
Overall Length	5.46 in
Shaft Diameter	0.250 in
Shaft Extension	1.50 in

General Specifications

UPC	818508021713
Weight	2.80 LB
Packaged Length	7.50 IN
Packaged Width	5.63 IN
Packaged Height	5.75 IN
Country of Origin	Mexico
