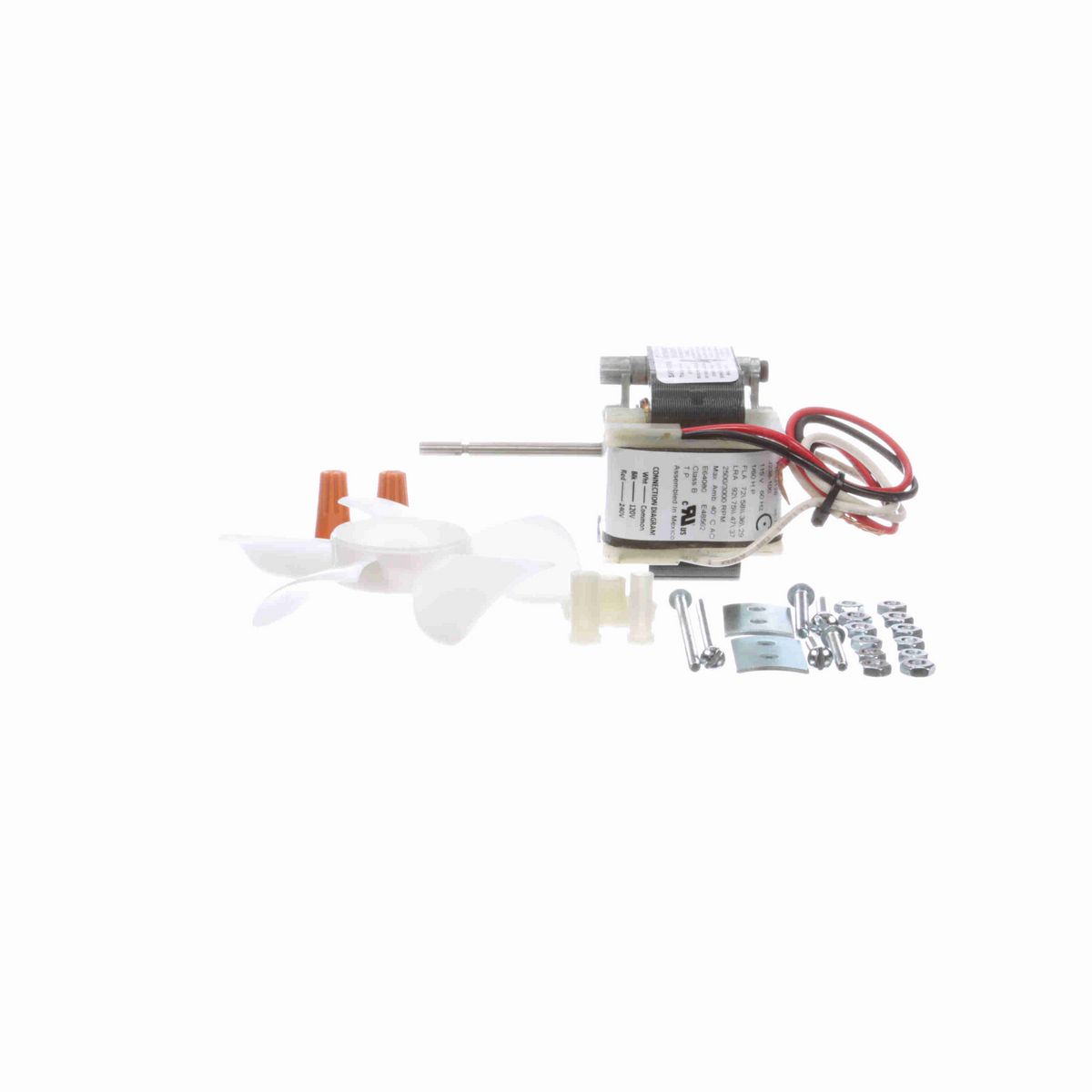

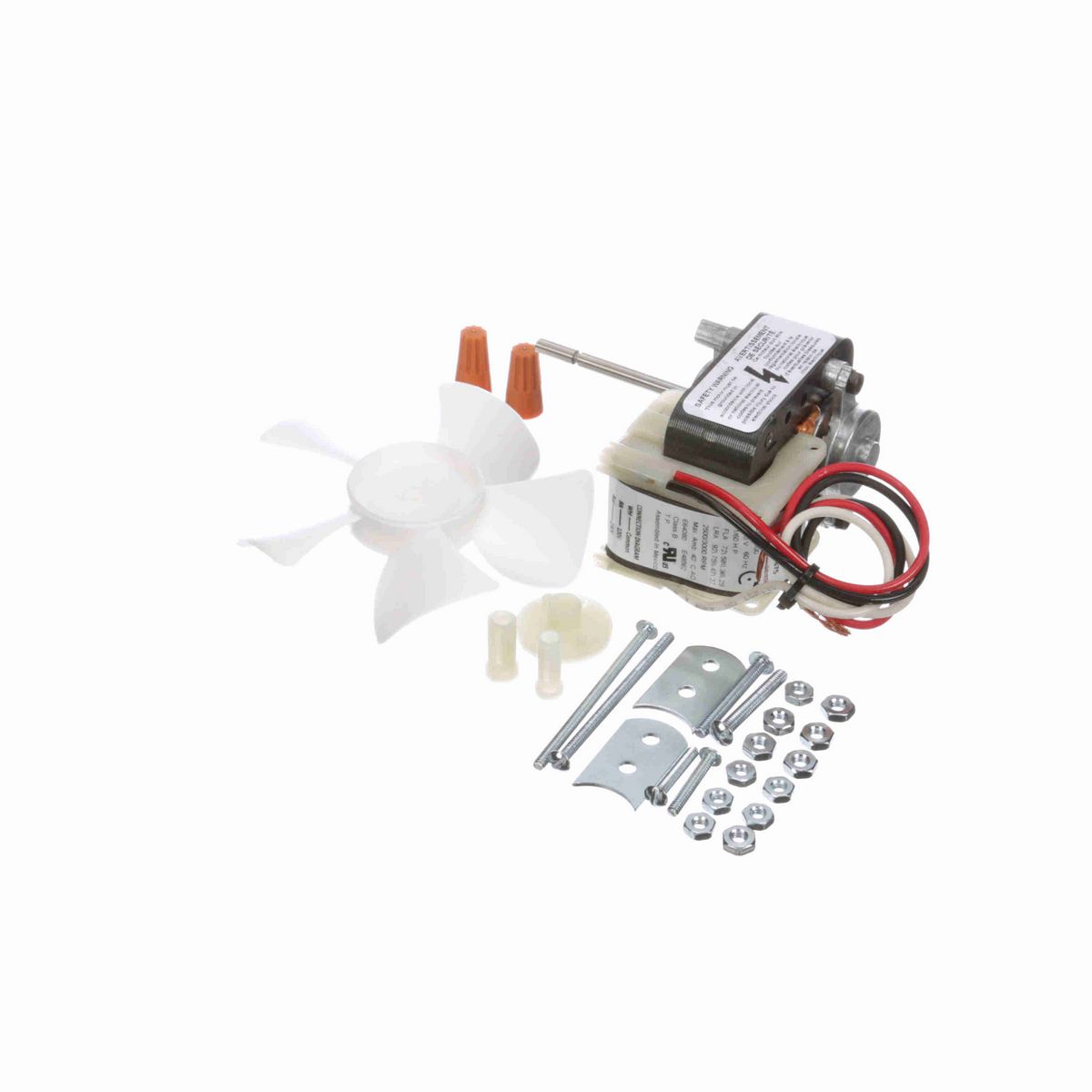

• OEM Direct Replacement Motor
• C-Frame
• Shaded Pole
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• .187" Diameter Shaft
• 10.5" Leads
• Tapped Holes Shaft End

Nameplate Specifications

Phase	1
Output HP	1/60 Hp
Output KW	0.01 kW
Voltage	120/240 V
Speed	2500/3000 rpm
Service Factor	1
Frame	C-FRAME
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	50 Hz
Current	0.72/0.25//0.36/0.29 A
Duty	Continuous Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	2
Rotation	Clockwise Shaft End
Mounting	Bracket
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Steel
Shaft Type	Round
Frame Length	2.20 in
Shaft Diameter	0.187 in
Shaft Extension	2.082 in

General Specifications

UPC	818508024820
Weight	4.94 LB
Packaged Length	5.88 IN
Packaged Width	7.25 IN
Packaged Height	5.63 IN
Country of Origin	Mexico
