• OEM Direct Replacement Motor
• C-Frame
• Shaded Pole
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• .25" Diameter Shaft with Flat
• 13.75" Leads
• Extended Studs Shaft End

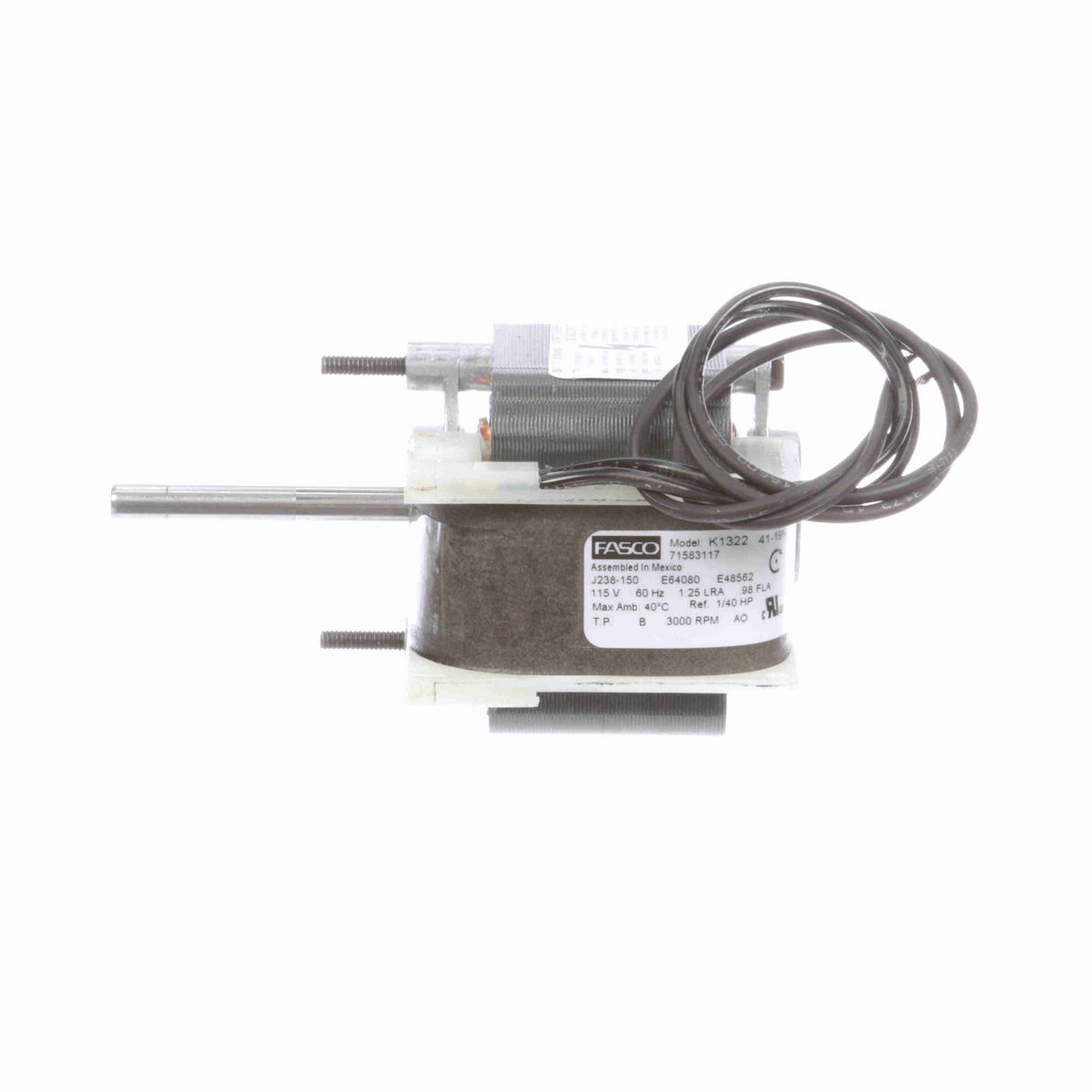

Nameplate Specifications

Phase	1
Output HP	1/40 Hp
Output KW	0.02 kW
Voltage	115 V
Speed	3000 rpm
Service Factor	1
Frame	C-FRAME
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	.98 A
Duty	Continuous Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	2
Rotation	Clockwise Shaft End
Mounting	Extended Studs
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Steel
Shaft Type	Flat
Frame Length	2.65 in
Shaft Diameter	0.250 in
Shaft Extension	2 in

General Specifications

UPC	818508024868
Weight	3.23 LB
Packaged Length	3.10 IN
Packaged Width	5.25 IN
Packaged Height	3.31 IN
Country of Origin	Mexico
