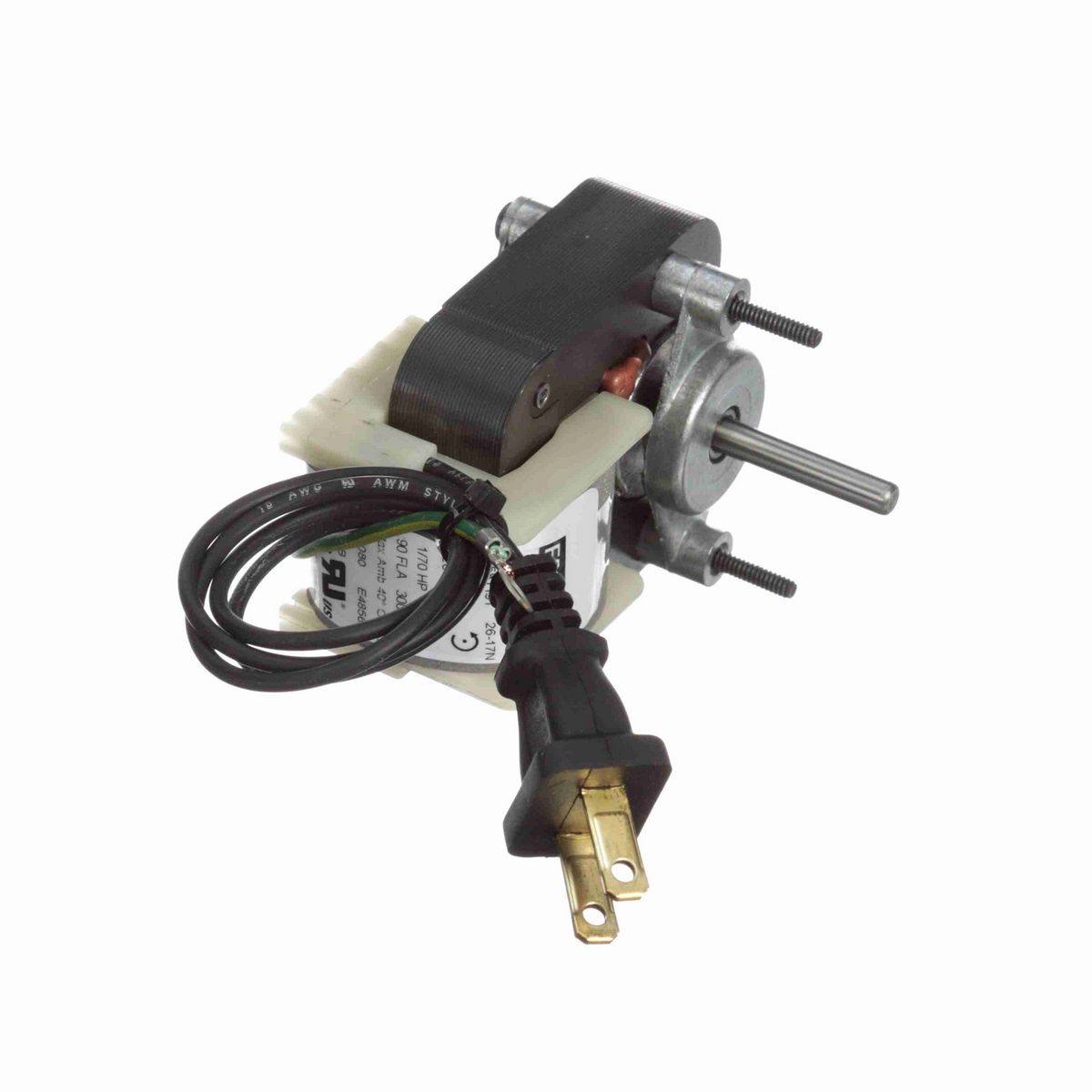

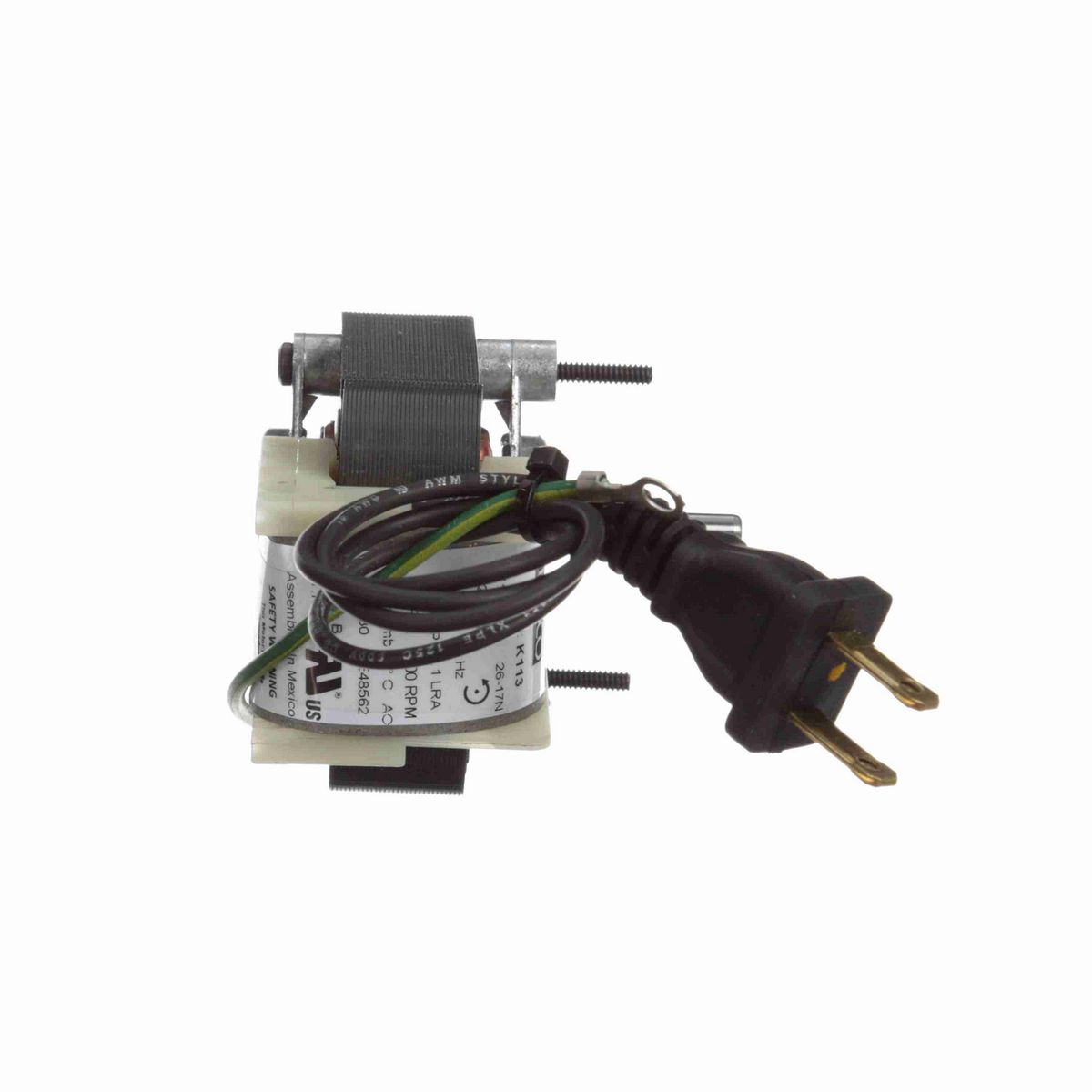

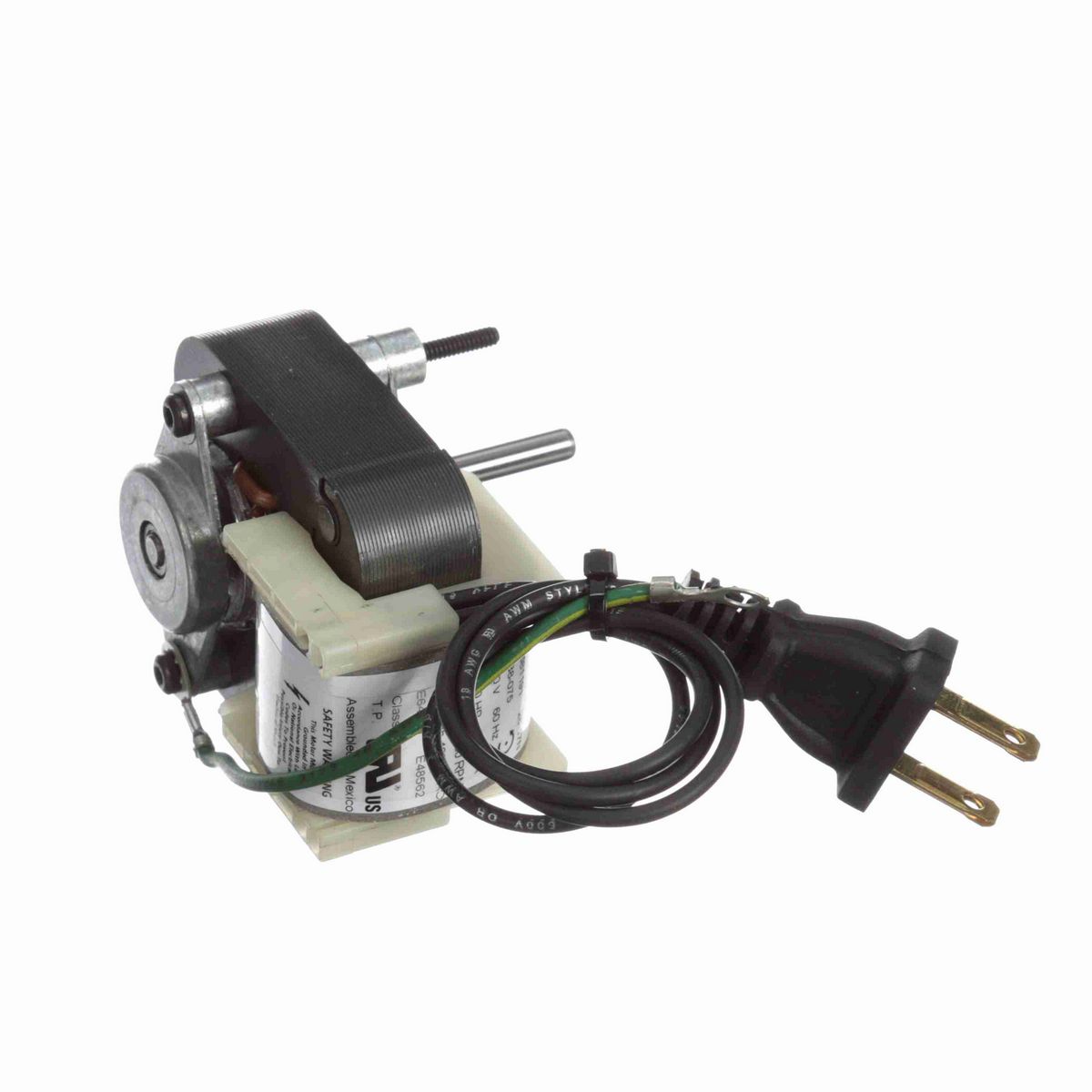

• Heating - Refrigeration - Ventilating Motor
• C-Frame
• Shaded Pole
• Thermally Protected, One-Shot Fuse
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• .2178" Diameter Shaft with Flat
• 13"/11" Leads with Molded Plug
• Extended Studs Shaft End

Nameplate Specifications

Phase	1
Output HP	1/70 Hp
Output KW	0.01 kW
Voltage	120 V
Speed	3000 rpm
Service Factor	1
Frame	C-FRAME
Enclosure	Open Enclosed
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	.90 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	N
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	2
Rotation	Clockwise Shaft End
Mounting	Extended Studs
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Na
Shaft Type	Flat
Overall Length	2.92 in
Shaft Diameter	0.218 in
Shaft Extension	1.16 in

General Specifications

UPC	818508021553
Weight	1.57 LB
Packaged Length	11.50 IN
Packaged Width	9.25 IN
Packaged Height	3.63 IN
Country of Origin	Mexico
