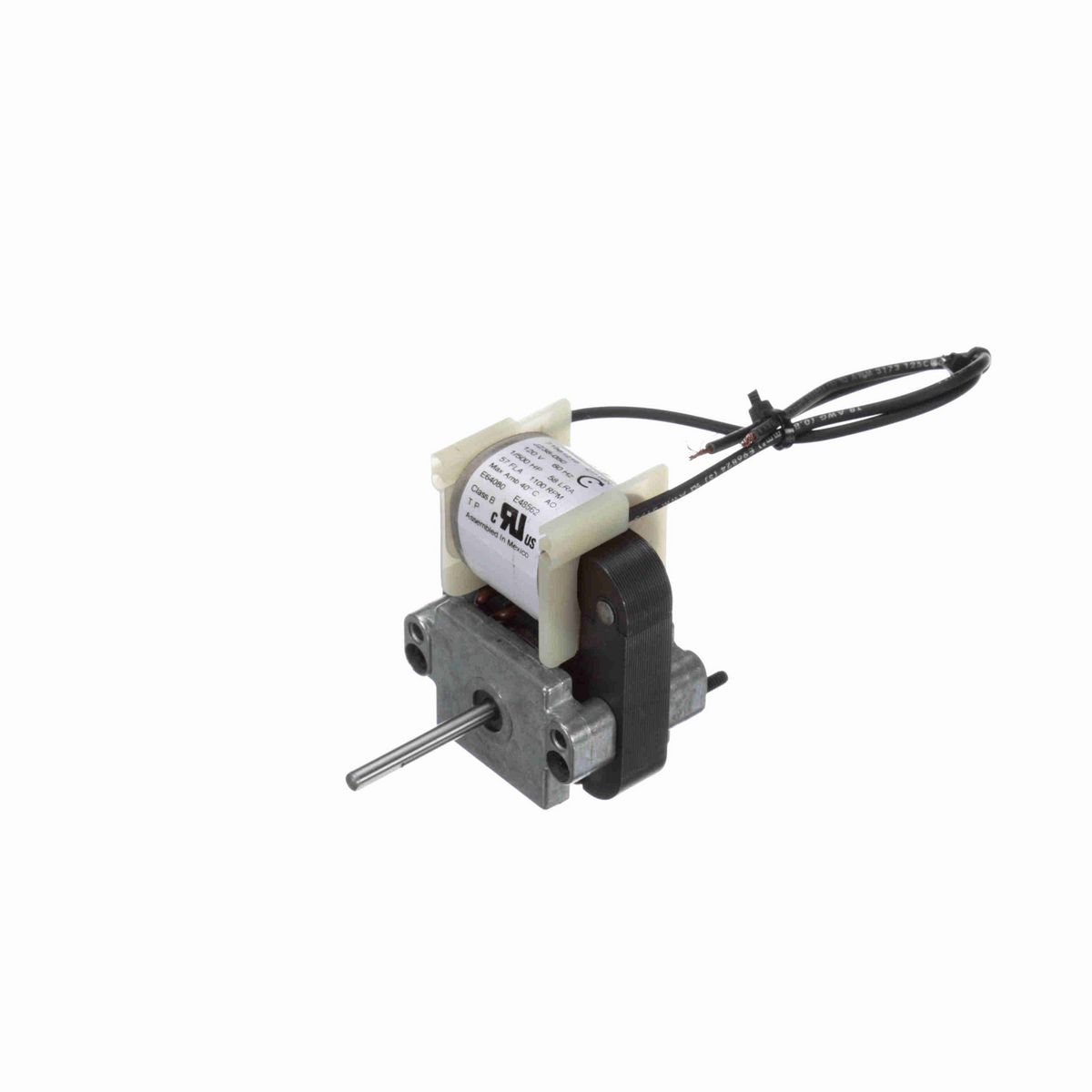

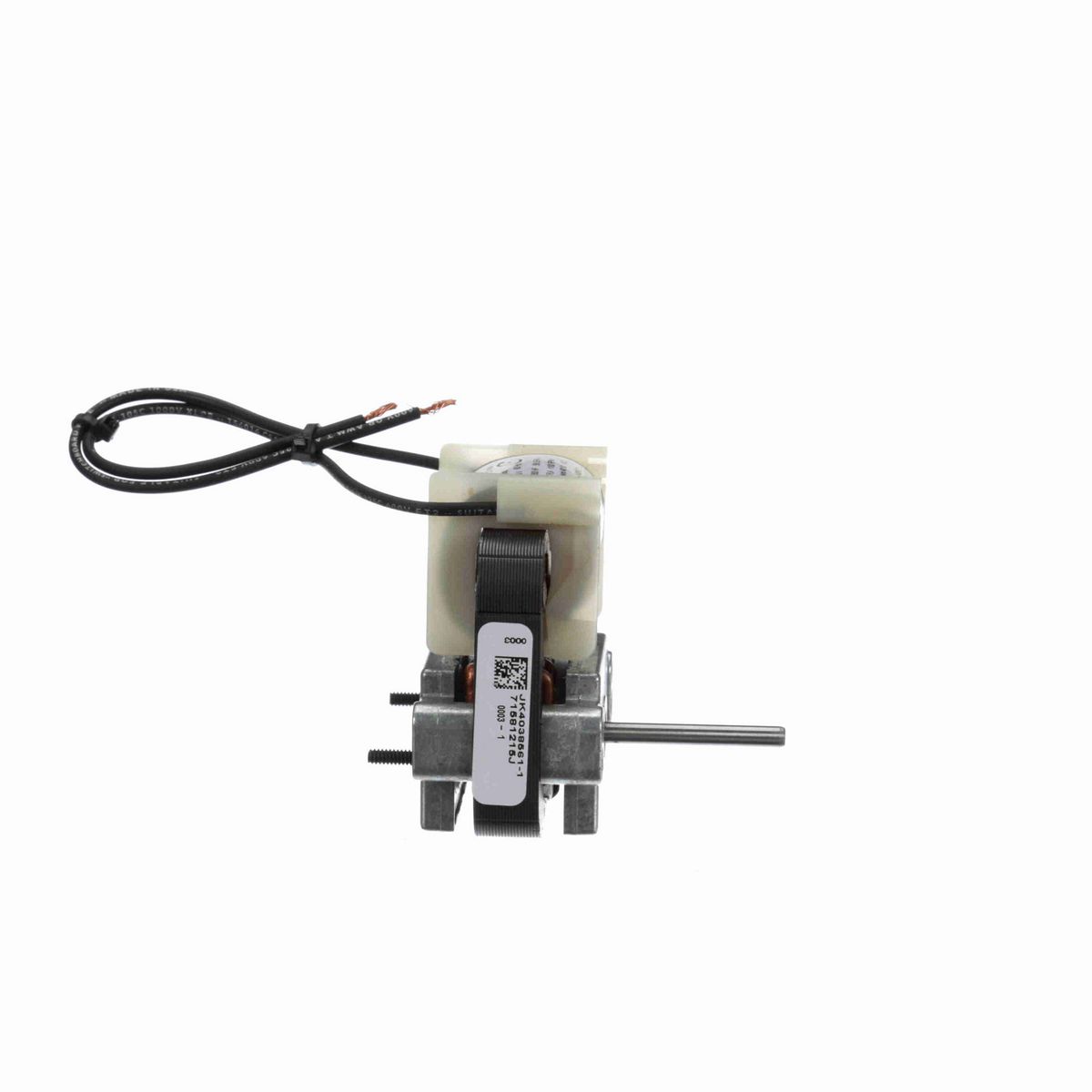

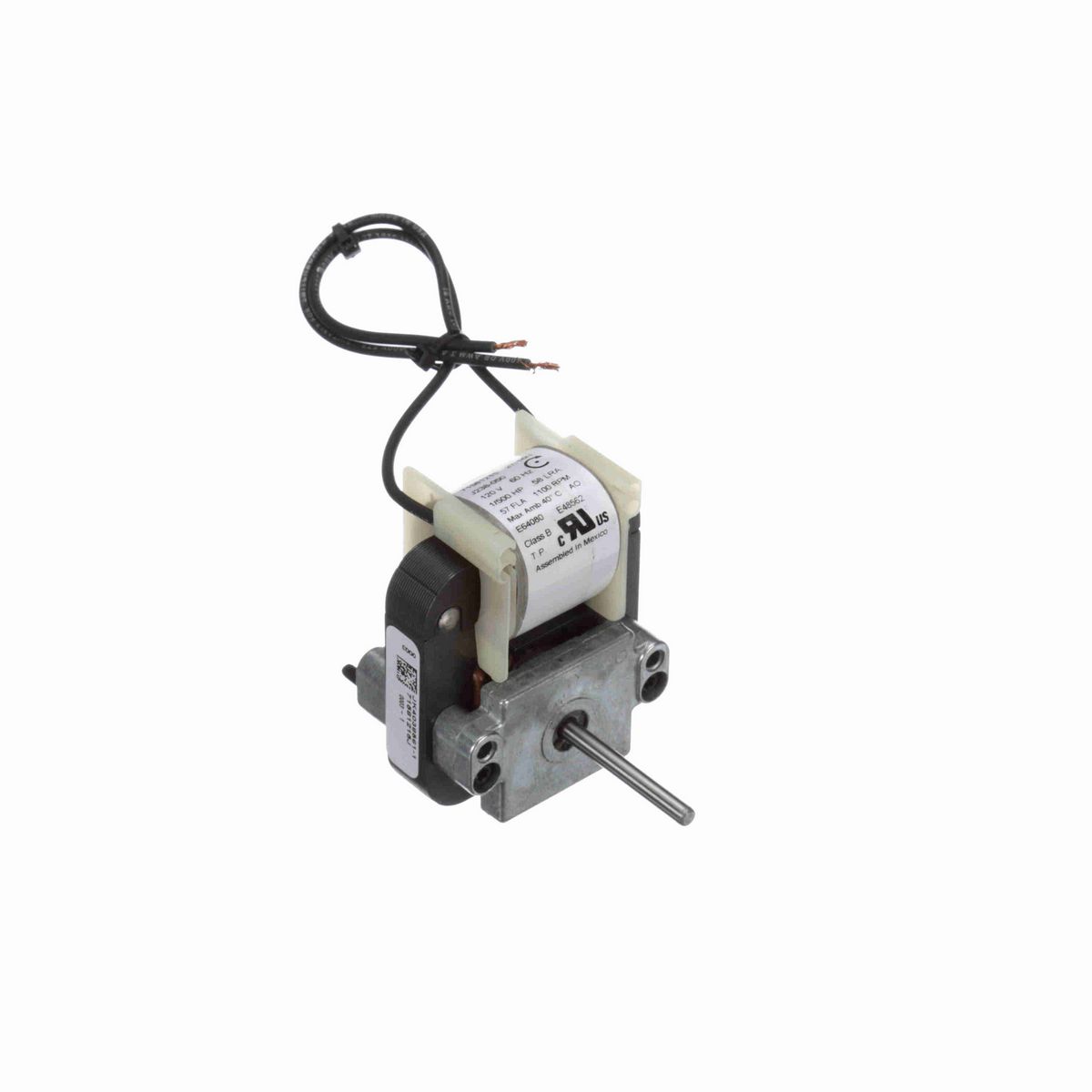

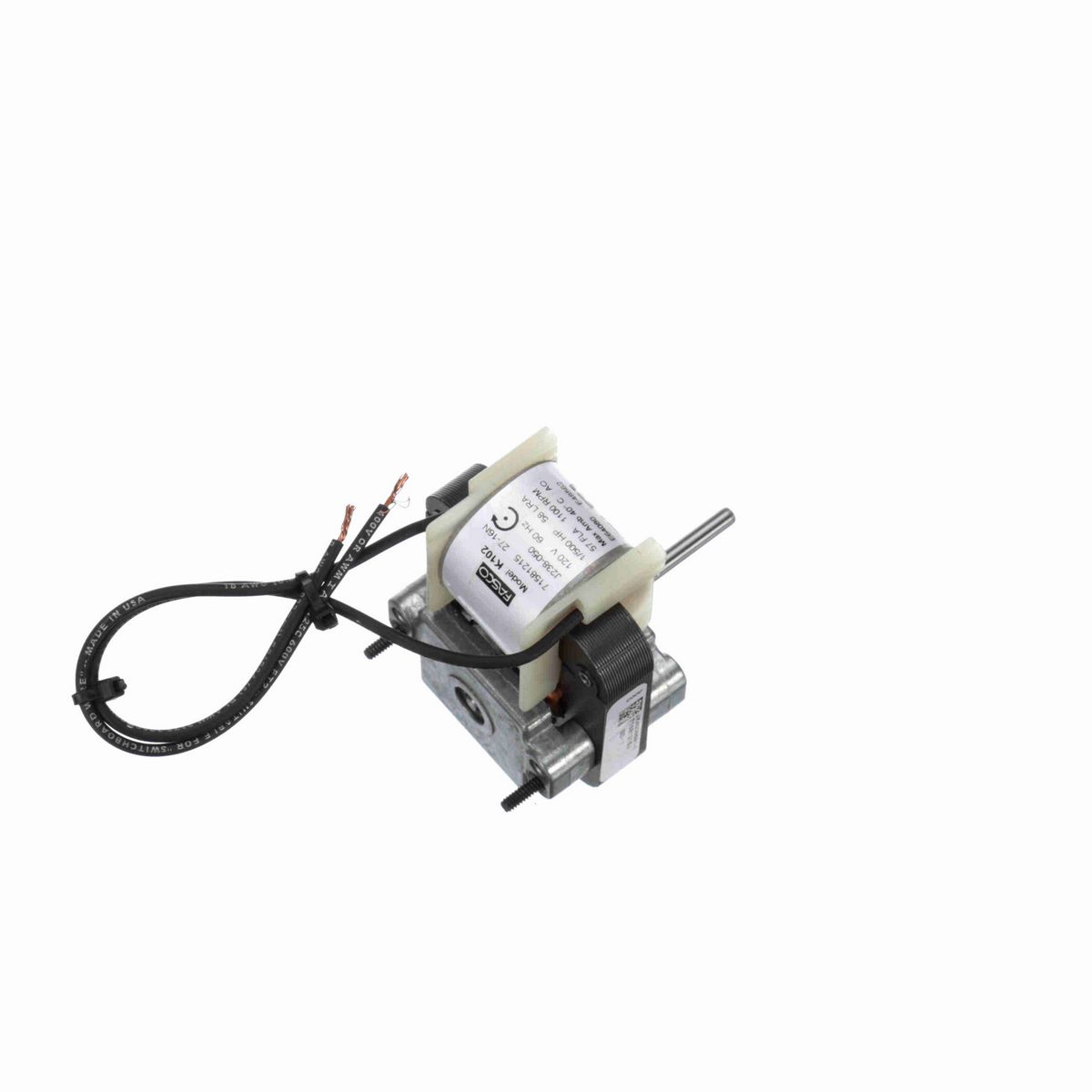

• OEM Direct Replacement Motor
• C-Frame
• Shaded Pole
• Thermally Protected, One-Shot Fuse
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• .1811" Diameter Shaft with Flat
• 8.5"/7.5" Leads with .25" Strip
• Extended Studs Opposite Shaft End

Nameplate Specifications

Phase	1
Output HP	1/500 Hp
Output KW	0.00 kW
Voltage	120 V
Speed	1100 rpm
Service Factor	1
Frame	C-FRAME
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	0.57 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	N
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	6
Rotation	Clockwise Shaft End
Mounting	Extended Studs
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Na
Shaft Type	Flat
Overall Length	3.46 in
Shaft Diameter	0.181 in
Shaft Extension	1.50 in

General Specifications

UPC	818508021508
Weight	1.20 LB
Packaged Length	11.50 IN
Packaged Width	9.25 IN
Packaged Height	3.63 IN
HTC	8501.10.4020
Country of Origin	Mexico
