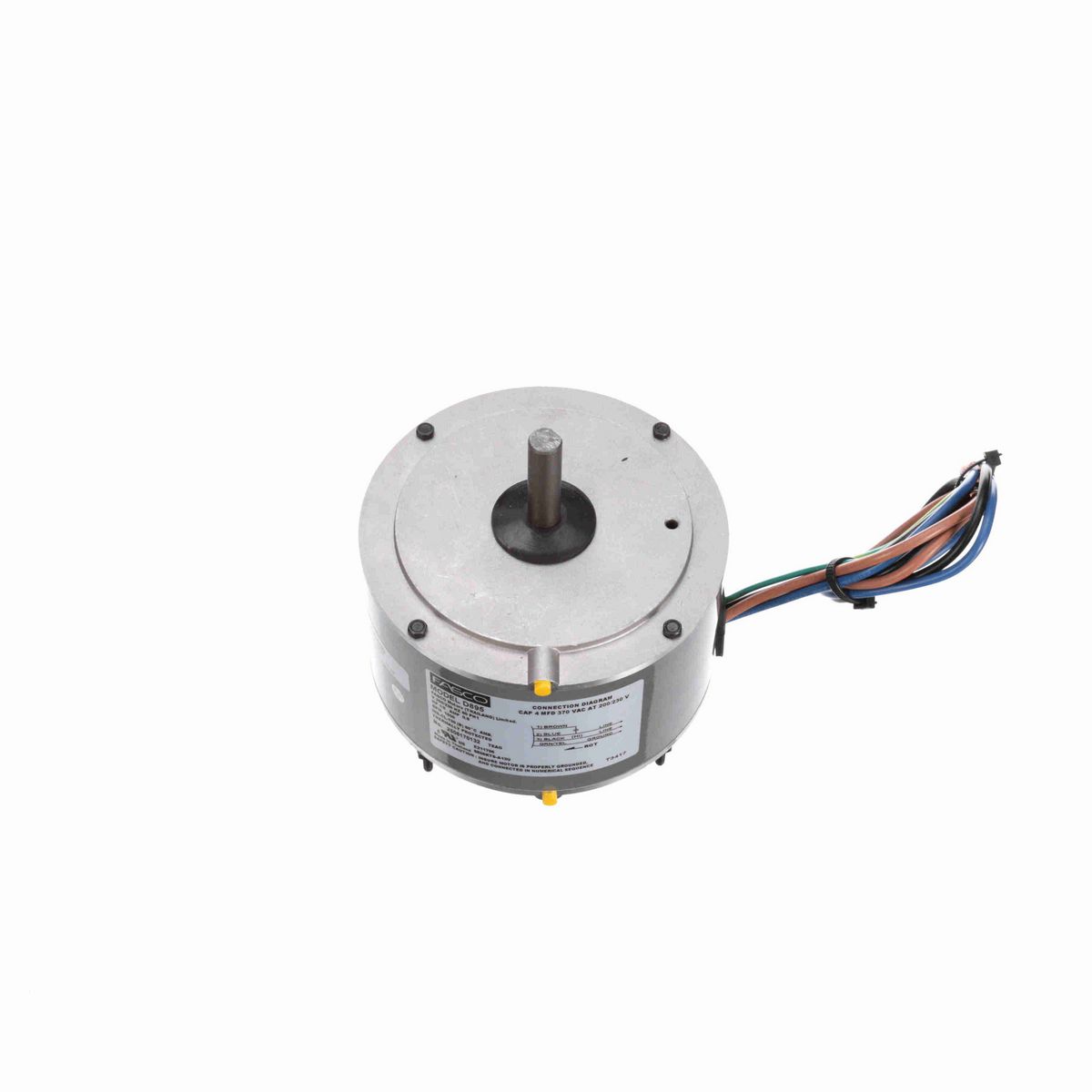

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation, 60°C Ambient
• Sleeve Bearing
• 1/2" Diameter Shaft with Flat
• (1) 20" Lead with Flag Terminal, (2) 20" Leads with Quick Connect Teriminal
• Extended Studs Lead End, Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1/8 Hp
Output KW	0.10 kW
Voltage	200-230 V
Speed	1650 rpm
Service Factor	1
Frame	48
Enclosure	Totally Enclosed Air Over
Thermal Protection	Automatic
Ambient Temperature	60 °C
Frequency	60 Hz
Current	0.72 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	4
Rotation	Clockwise Shaft End
Mounting	Extended Studs
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Rolled Steel
Shaft Type	Flat
Frame Length	3.54 in
Shaft Diameter	0.500 in
Shaft Extension	2.0 in

General Specifications

UPC	818508020518
Weight	9.50 LB
Packaged Length	15.00 IN
Packaged Width	5.63 IN
Packaged Height	5.63 IN
Country of Origin	Thailand
