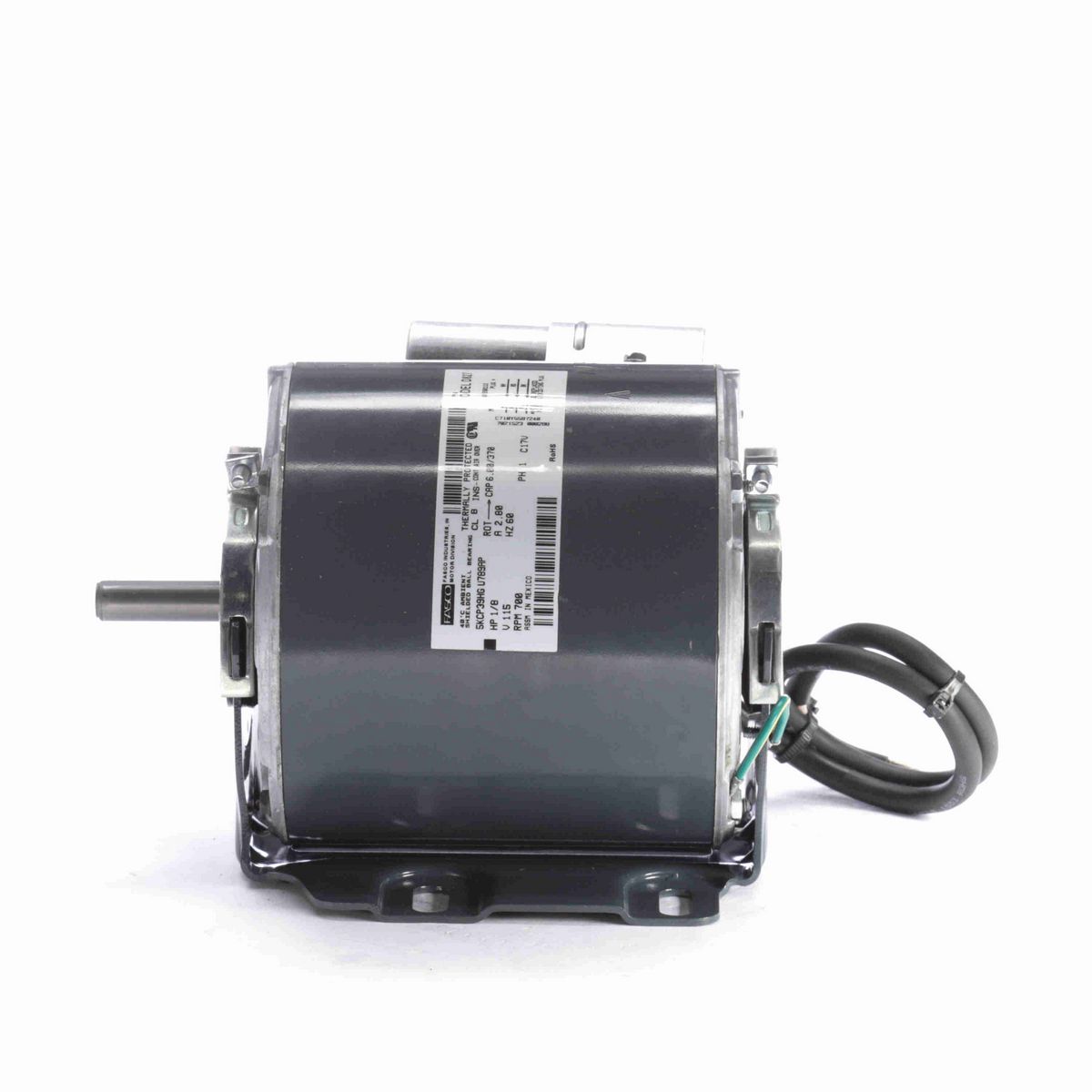

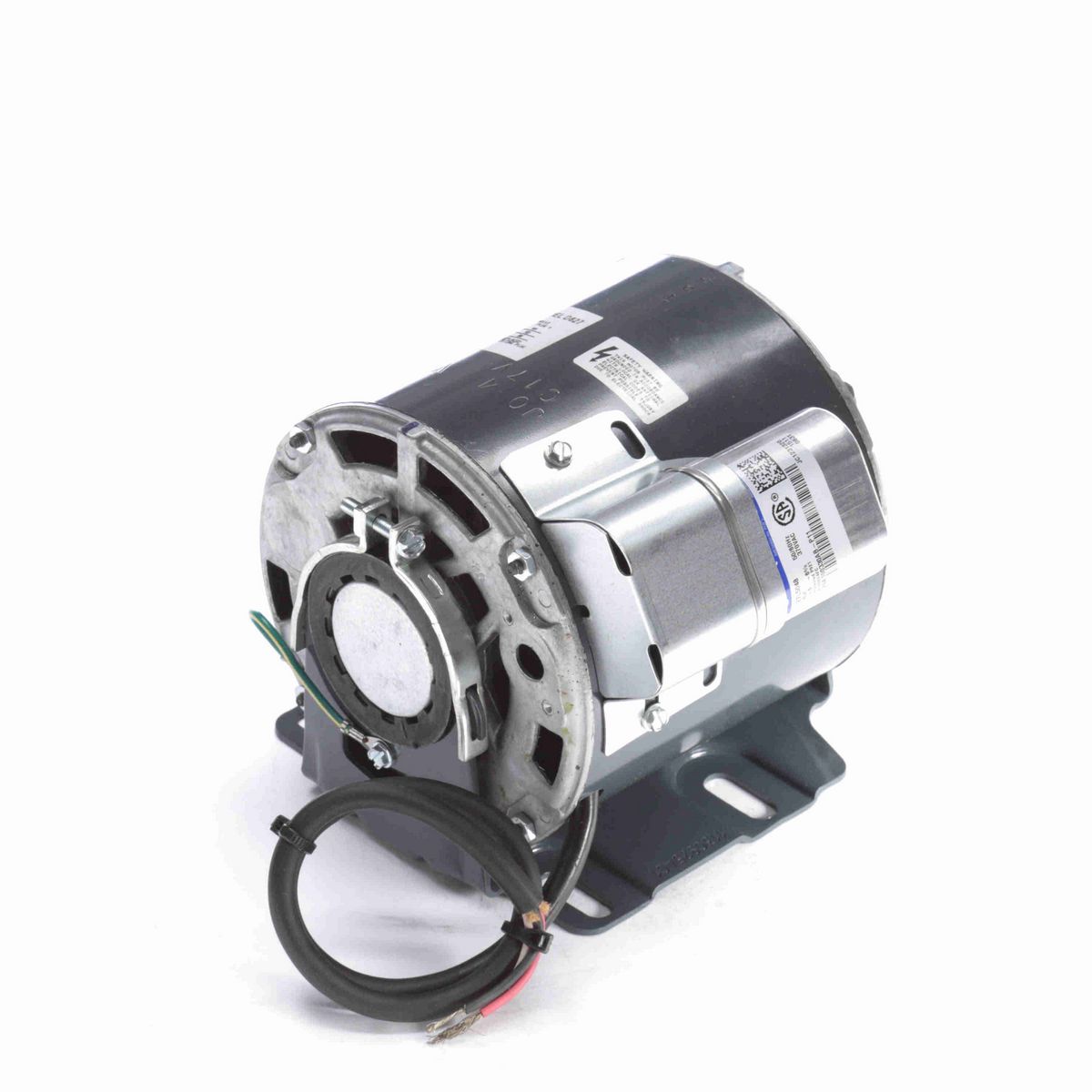

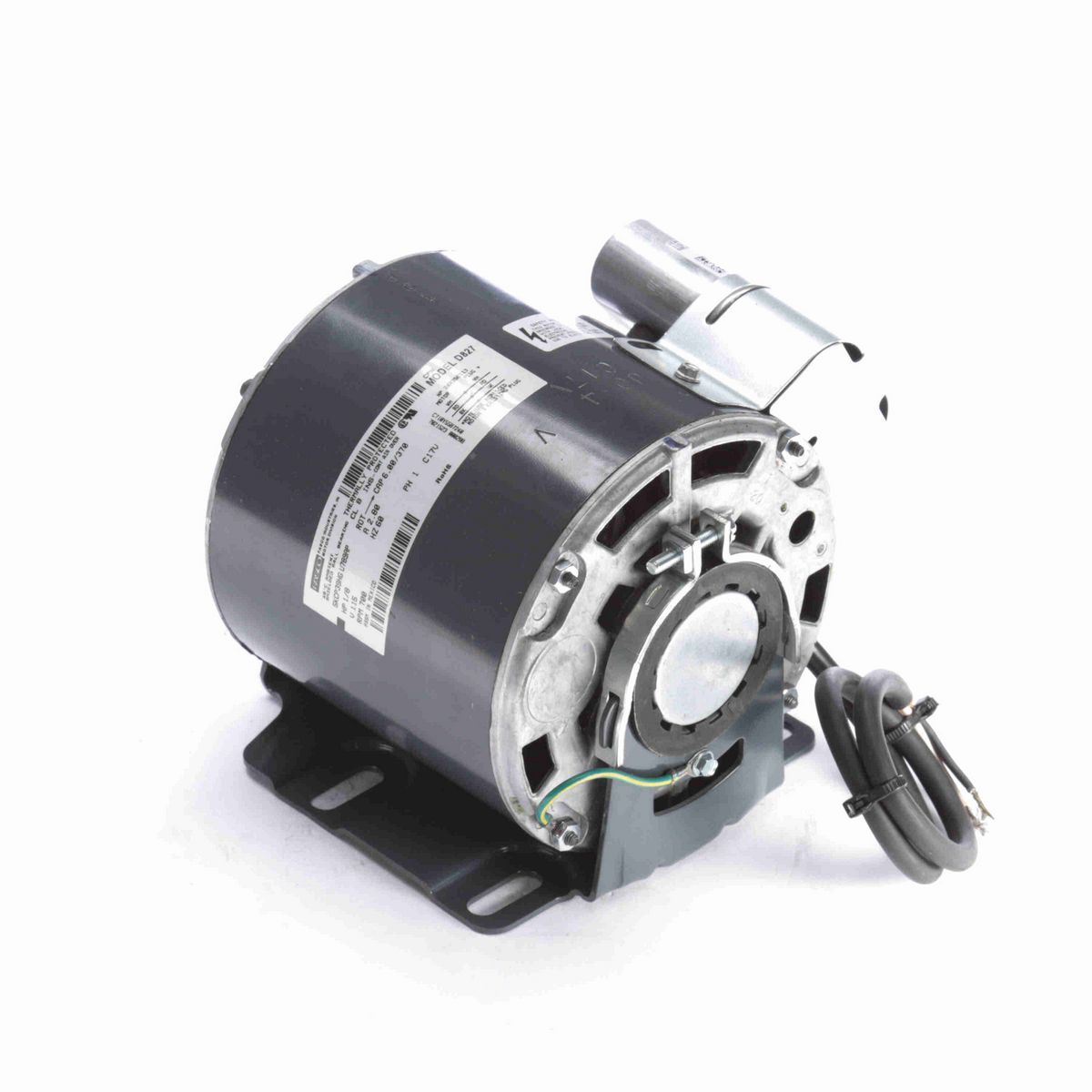

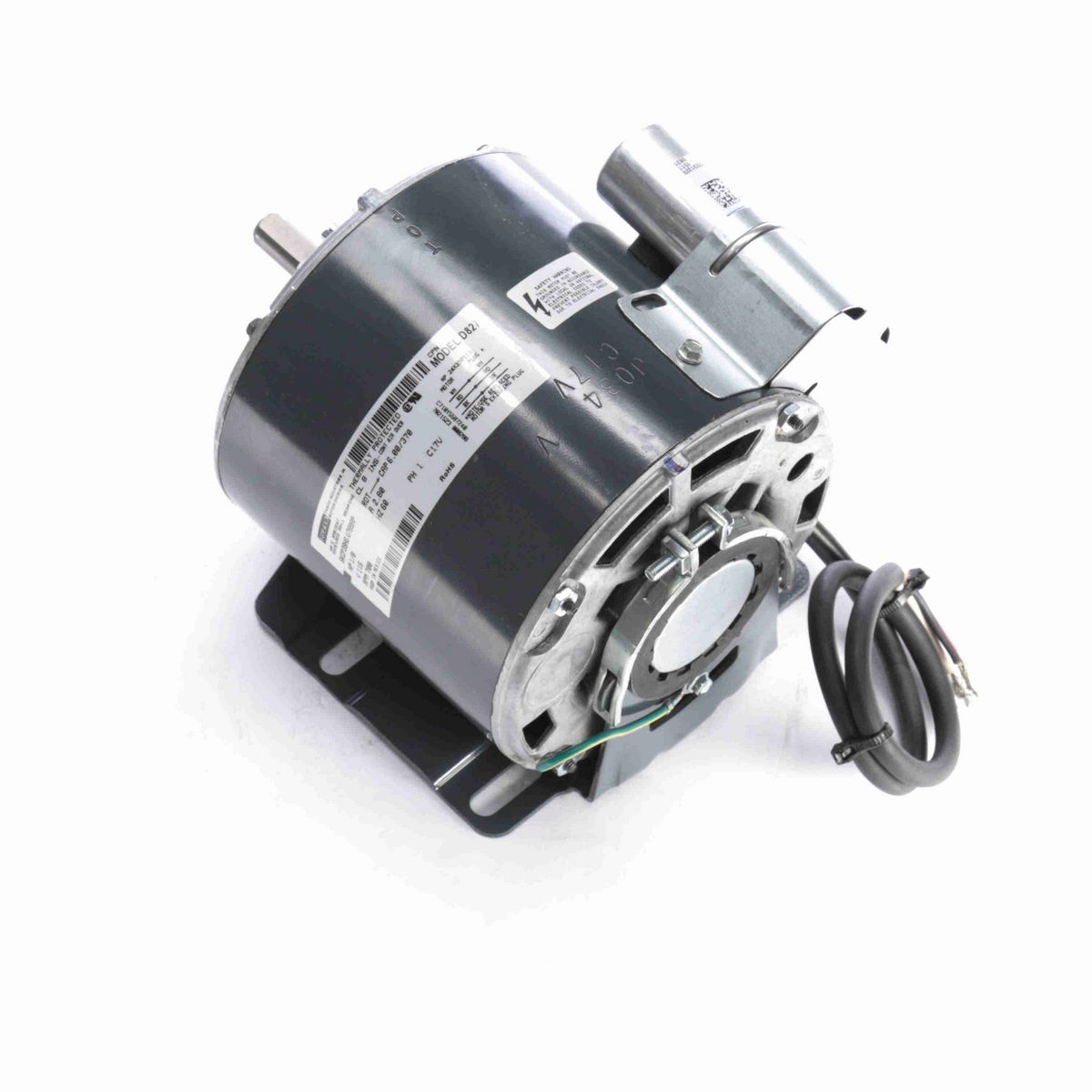

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 6 Mfd-370 Volts (Supplied with Motor)
• Thermally Protected
• Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Flat
• 20" Leads
• Resilient Base

Nameplate Specifications

Phase	1
Output HP	1/8 Hp
Output KW	0.10 kW
Voltage	115 V
Speed	700 rpm
Service Factor	1
Frame	48
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	2.80 A
Duty	Continuous Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Poles	8
Rotation	Clockwise
Mounting	Resilient Base
Motor Orientation	Hor
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	7.89 in
Frame Length	4.82 in
Shaft Diameter	0.500 in
Shaft Extension	1.50 in

General Specifications

UPC	818508020457
Weight	14.00 LB
Packaged Length	14.12 IN
Packaged Width	8.38 IN
Packaged Height	8.00 IN
Country of Origin	India
