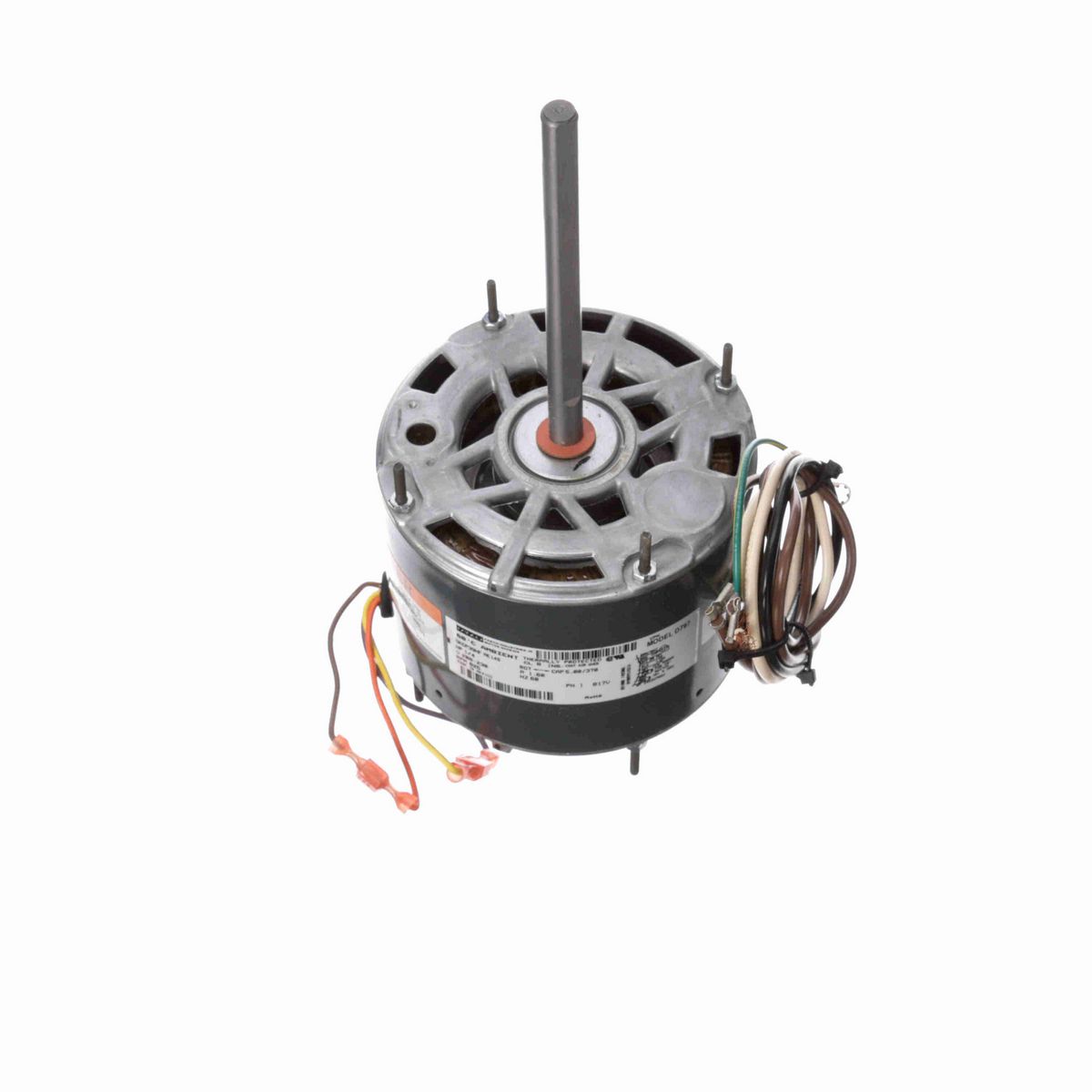

• Condenser Fan Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Shaft End End-Frame, Enclosed Shell and Lead End End-Frame, Air Over
• Class B Insulation, 60°C Ambient
• Sleeve Bearing
• 1/2" Diameter Shaft with Double Flat
• 27" Leads
• Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1/4 Hp
Output KW	0.19 kW
Voltage	208-230 V
Speed	825 rpm
Service Factor	1
Frame	48
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	60 °C
Frequency	60 Hz
Current	1.60 A
Duty	Continuous Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Poles	8
Rotation	Counterclockwise/Clockwise
Mounting	Extended Studs
Motor Orientation	Any
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Rolled Steel
Shaft Type	Double Flat
Overall Length	10.98 in
Frame Length	3.82 in
Shaft Diameter	0.500 in
Shaft Extension	6.42 in

General Specifications

UPC	818508020402
Weight	12.00 LB
Packaged Length	14.06 IN
Packaged Width	6.04 IN
Packaged Height	6.02 IN
