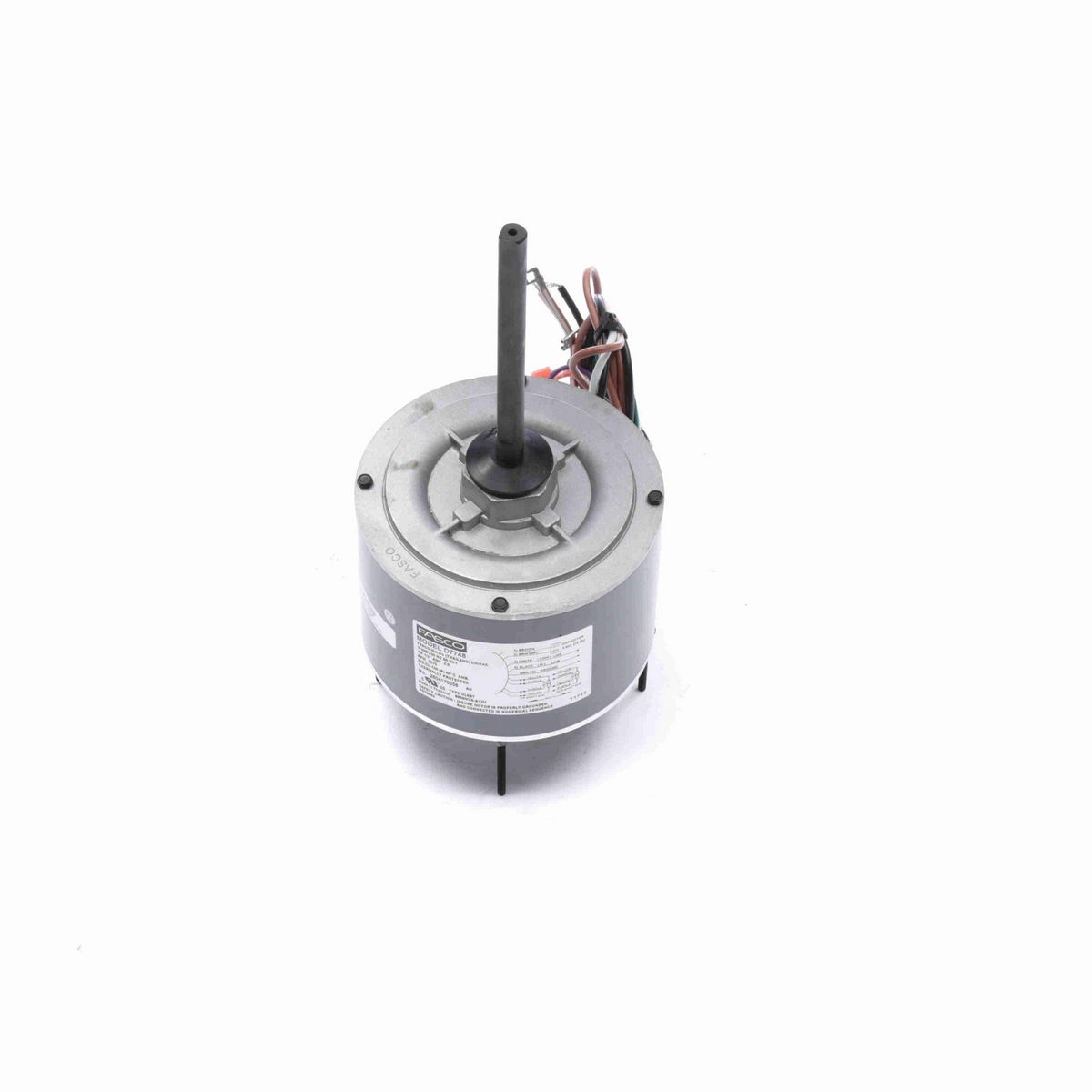

• Condenser Fan Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Lead End, Enclosed Shell and Shaft End End-Frame, Air Over
• Class B Insulation, 60°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Double Flat
• 27" Leads
• Extended Studs Lead End, Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1/3 Hp
Output KW	0.25 kW
Voltage	208-230 V
Speed	1075 rpm
Service Factor	1
Frame	48
Enclosure	Semi Enclosed
Thermal Protection	Automatic
Ambient Temperature	60 °C
Frequency	60 Hz
Current	2.9 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Reversible
Mounting	Extended Studs
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Double Flat
Frame Length	4.21 in
Shaft Diameter	0.500 in
Shaft Extension	6.5 in

General Specifications

UPC	818508020174
Weight	13.00 LB
Packaged Length	15.00 IN
Packaged Width	5.63 IN
Packaged Height	5.63 IN
Country of Origin	Thailand
