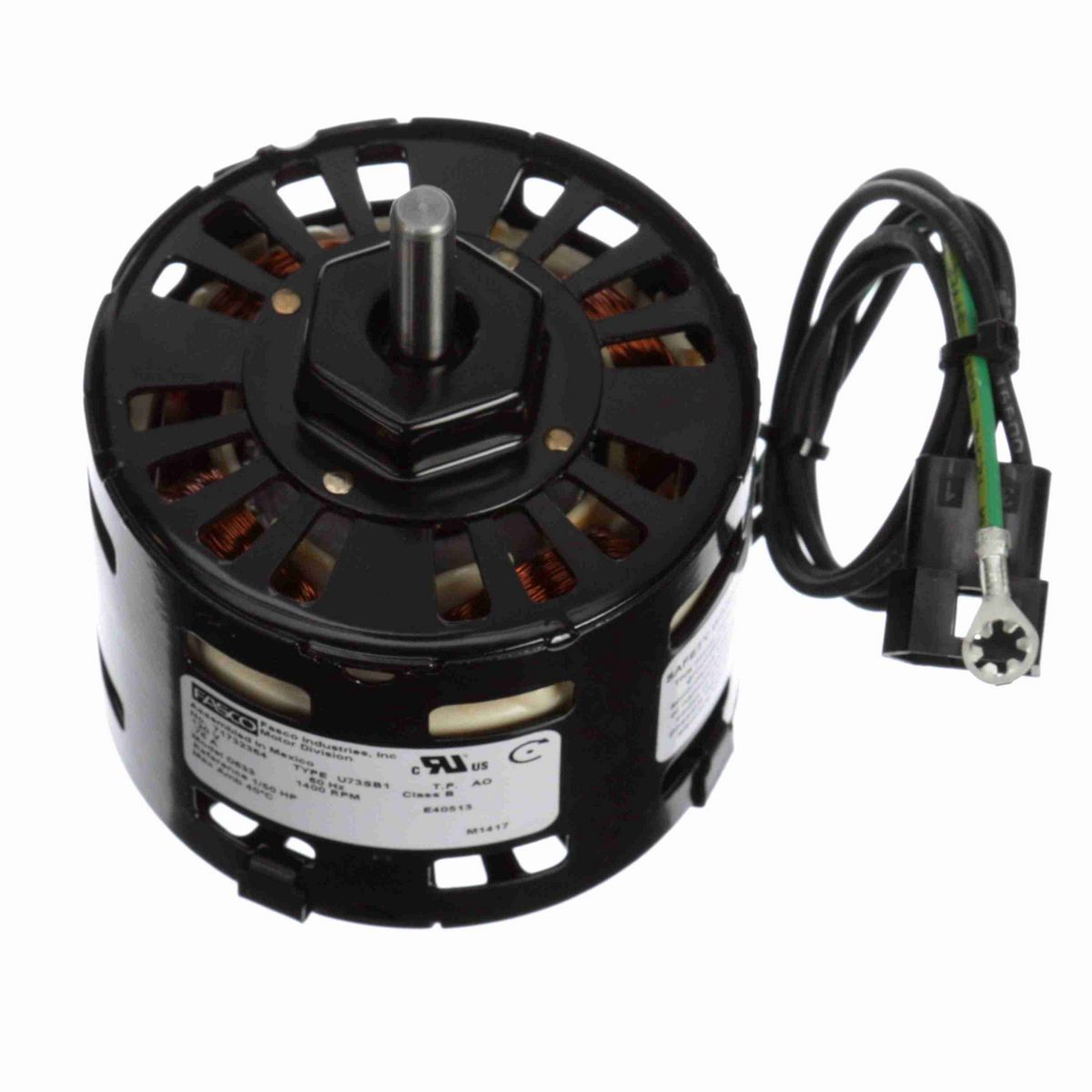

• OEM Direct Replacement Motor
• 3.3" Diameter
• Shaded Pole
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 5/16" Diameter Shaft with Flat
• 16" Leads with Terminal Housing
• Hex Mounting Hub Shaft End and Lead End

Nameplate Specifications

Phase	1
Output HP	1/50 Hp
Output KW	0.01 kW
Voltage	120 V
Speed	1400 rpm
Service Factor	1
Frame	3.3
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	0.76 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	N
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	4
Rotation	Clockwise Shaft End
Mounting	Hexagonal Hubs
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Steel
Shaft Type	Flat
Overall Length	4.34 in
Frame Length	2.32 in
Shaft Diameter	0.313 in
Shaft Extension	1.38 in

General Specifications

UPC	818508021089
Weight	2.65 LB
Packaged Length	8.00 IN
Packaged Width	3.38 IN
Packaged Height	3.38 IN
Country of Origin	Mexico
