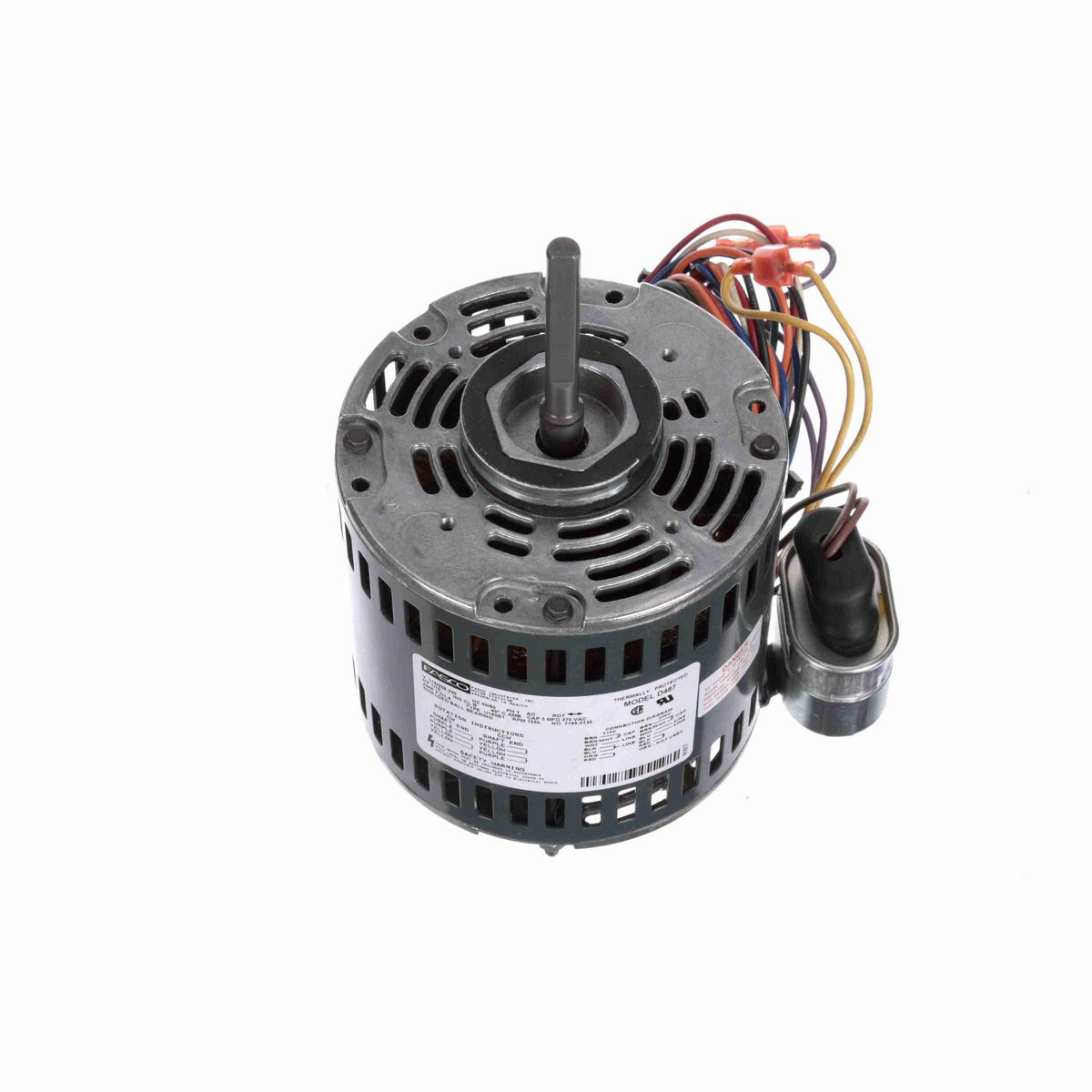

• Refrigeration Fan Motor
• 5" Diameter - 42 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 3/8" Diameter Shaft with Flat
• 30" Leads
• Extended Studs Opposite Shaft End, Resilient Ring Mounting, Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1/10 Hp
Output KW	0.07 kW
Voltage	115/208-230 V
Speed	1550 rpm
Service Factor	1
Frame	42
Enclosure	Open Air Over
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	2.7/1.4 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	4
Rotation	Reversible
Mounting	Resilient Rings
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	8.49 in
Frame Length	4.38 in
Shaft Diameter	0.375 in
Shaft Extension	3.15 in

General Specifications

UPC	818508020327
Weight	9.00 LB
Packaged Length	6.50 IN
Packaged Width	5.13 IN
Packaged Height	10.00 IN
Country of Origin	Mexico
