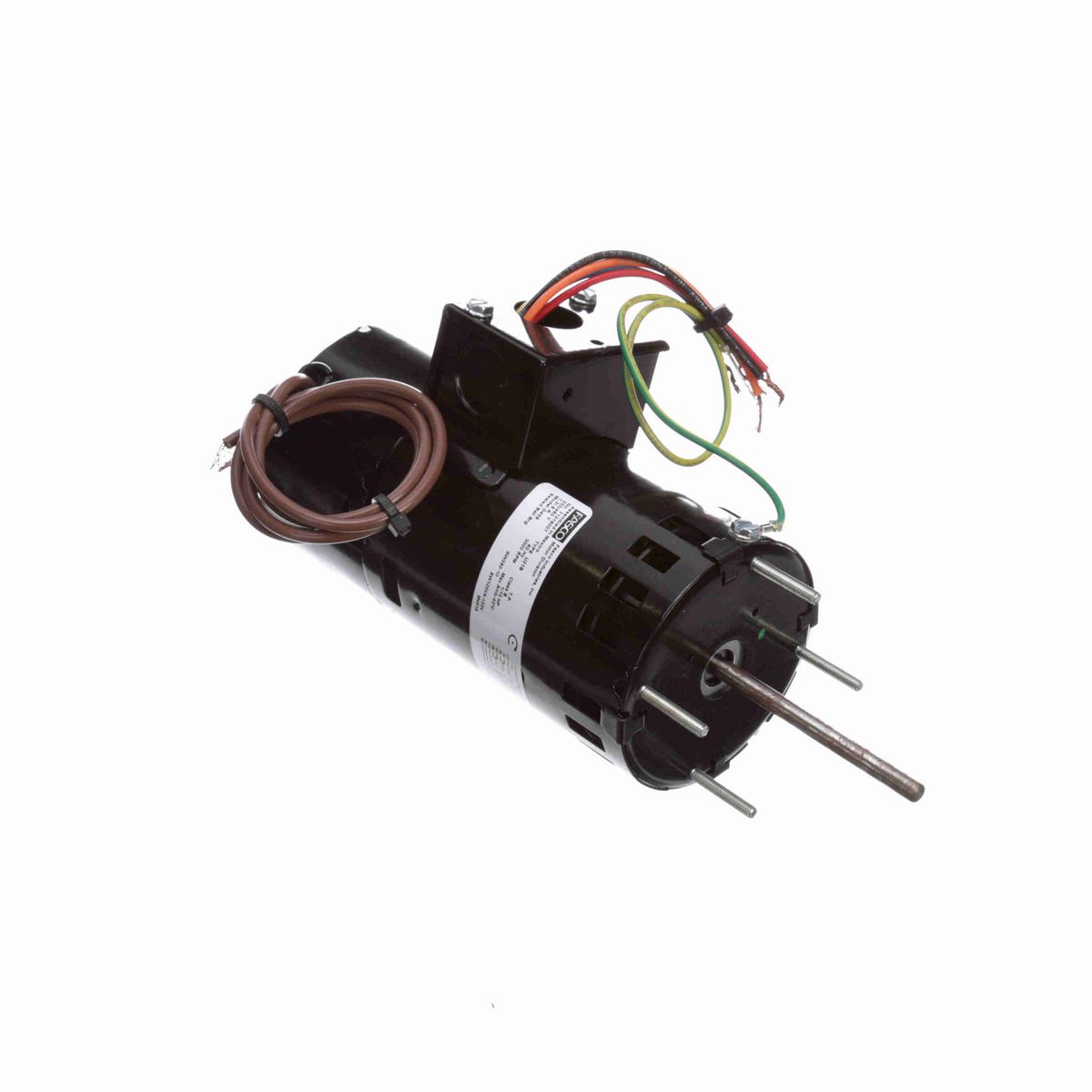

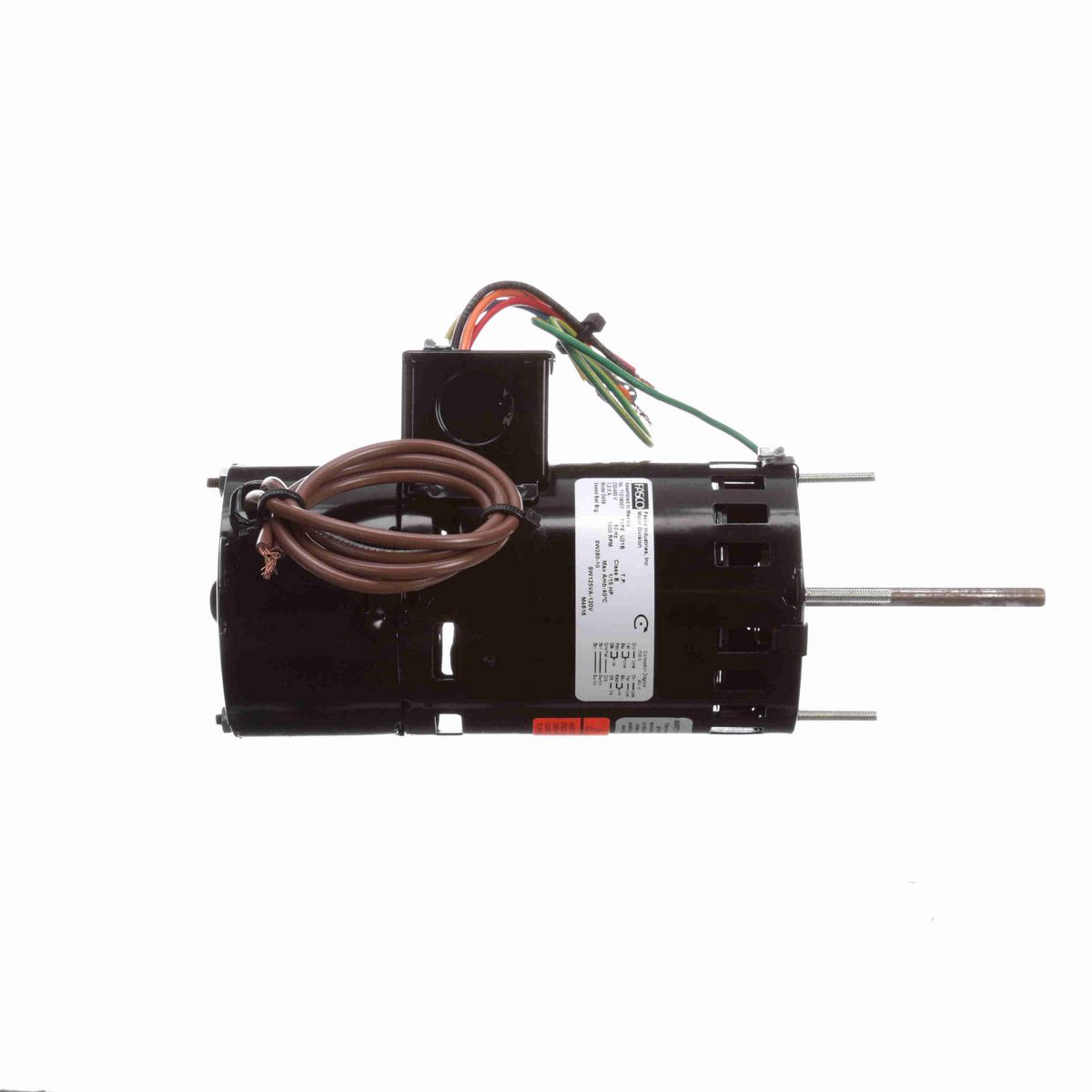

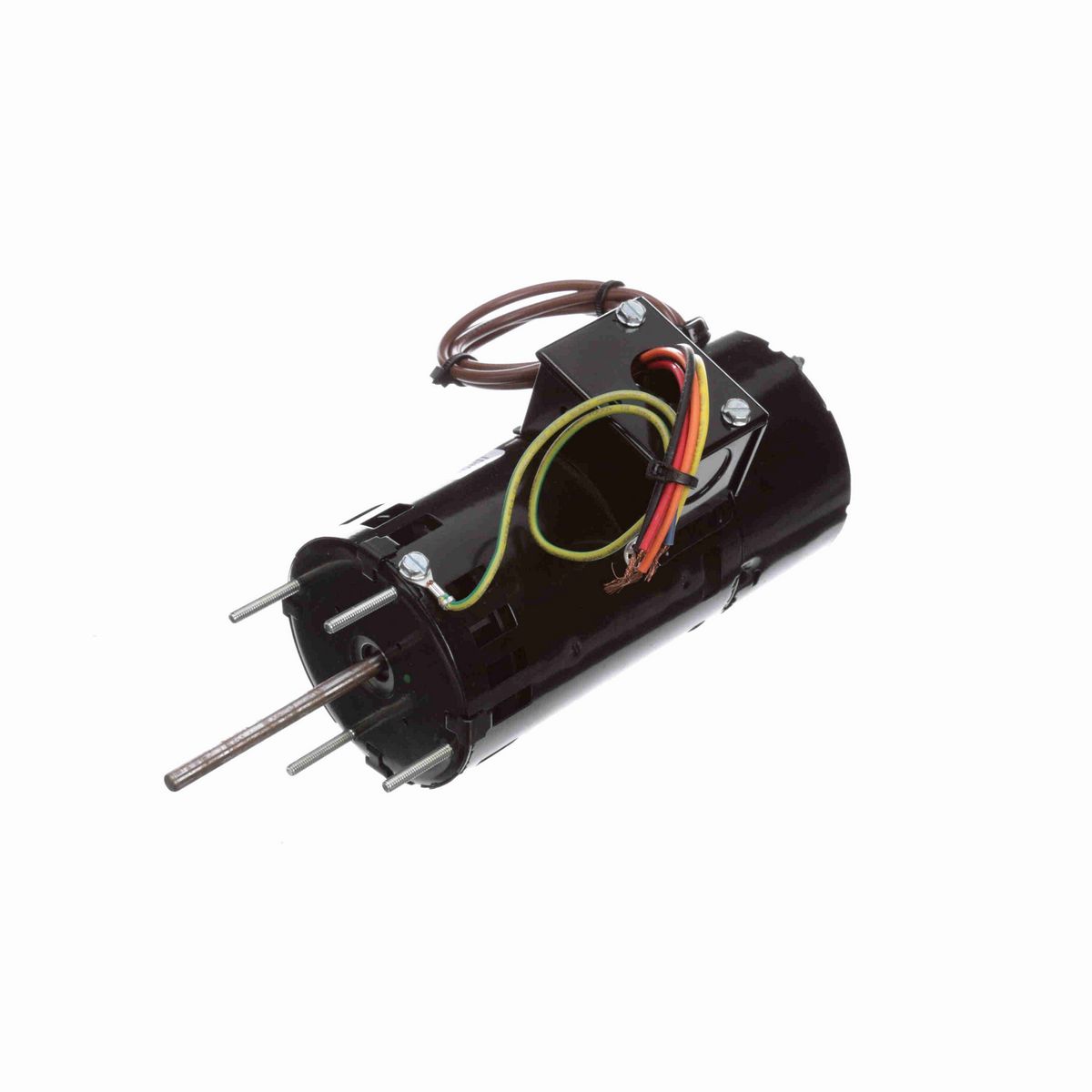

• OEM Direct Replacement Motor
• 3.3" Diameter
• Shaded Pole
• Thermally Protected
• Enclosed Shaft End and Lead End End-Frame, Open Shell, Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 1/4" Diameter Shaft with Flat
• Counduit Box, 32" Switch Leads
• Extended Studs Shaft End

Nameplate Specifications

Phase	1
Output HP	1/15 Hp
Output KW	0.05 kW
Voltage	230/460 V
Speed	3000 rpm
Service Factor	1
Frame	3.3
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	1.2/.6 A
Duty	Air Over
Insulation Class	B
UL	No
CSA	N
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	2
Rotation	Clockwise Shaft End
Mounting	Extended Studs
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Steel
Shaft Type	Flat
Overall Length	10.20 in
Frame Length	4.52 in
Shaft Diameter	0.250 in
Shaft Extension	3 in

General Specifications

UPC	818508020044
Weight	5.40 LB
Packaged Length	11.38 IN
Packaged Width	6.50 IN
Packaged Height	4.25 IN
Country of Origin	Mexico
