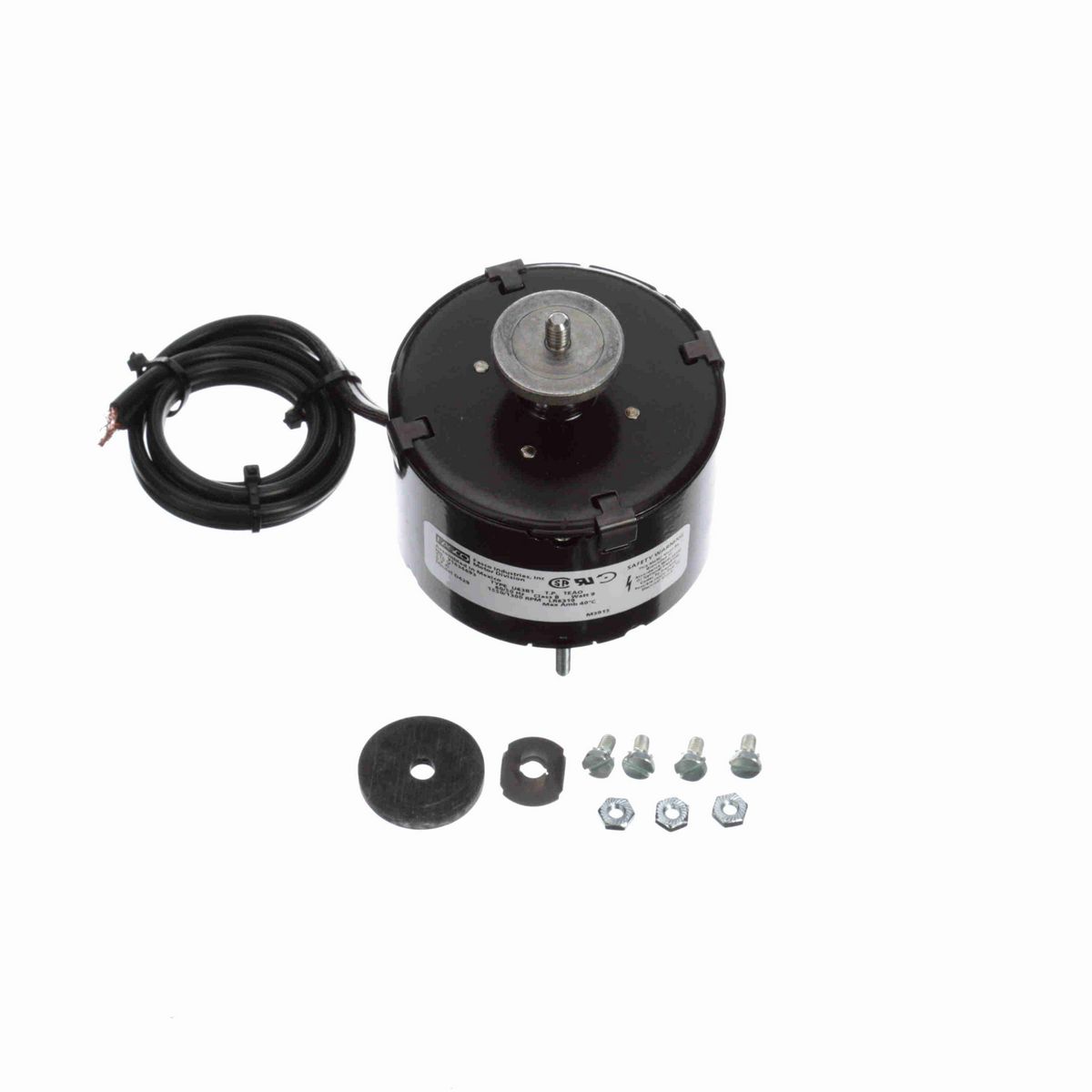

• Refrigeration Fan Motor
• 3.3" Diameter
• Shaded Pole
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 5/16" Diameter 1/4" x 20 Right-Hand Threaded Shaft
• 22" Leads
• Extended Studs Lead End, Mounting Bracket Lead End

Nameplate Specifications

Phase	1
Output Watts	9 W
Voltage	115 V
Speed	1550/1300 rpm
Service Factor	1
Frame	3.3
Enclosure	Totally Enclosed Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	50 Hz
Current	0.70 A
Duty	Continuous Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	4
Rotation	Counterclockwise Shaft End
Mounting	Extended Studs
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Steel
Shaft Type	Threaded
Frame Length	2.18 in
Shaft Diameter	0.313 in
Shaft Extension	1.2 in

General Specifications

UPC	815585029953
Weight	2.60 LB
Packaged Length	8.00 IN
Packaged Width	4.50 IN
Packaged Height	4.50 IN
Country of Origin	Mexico
