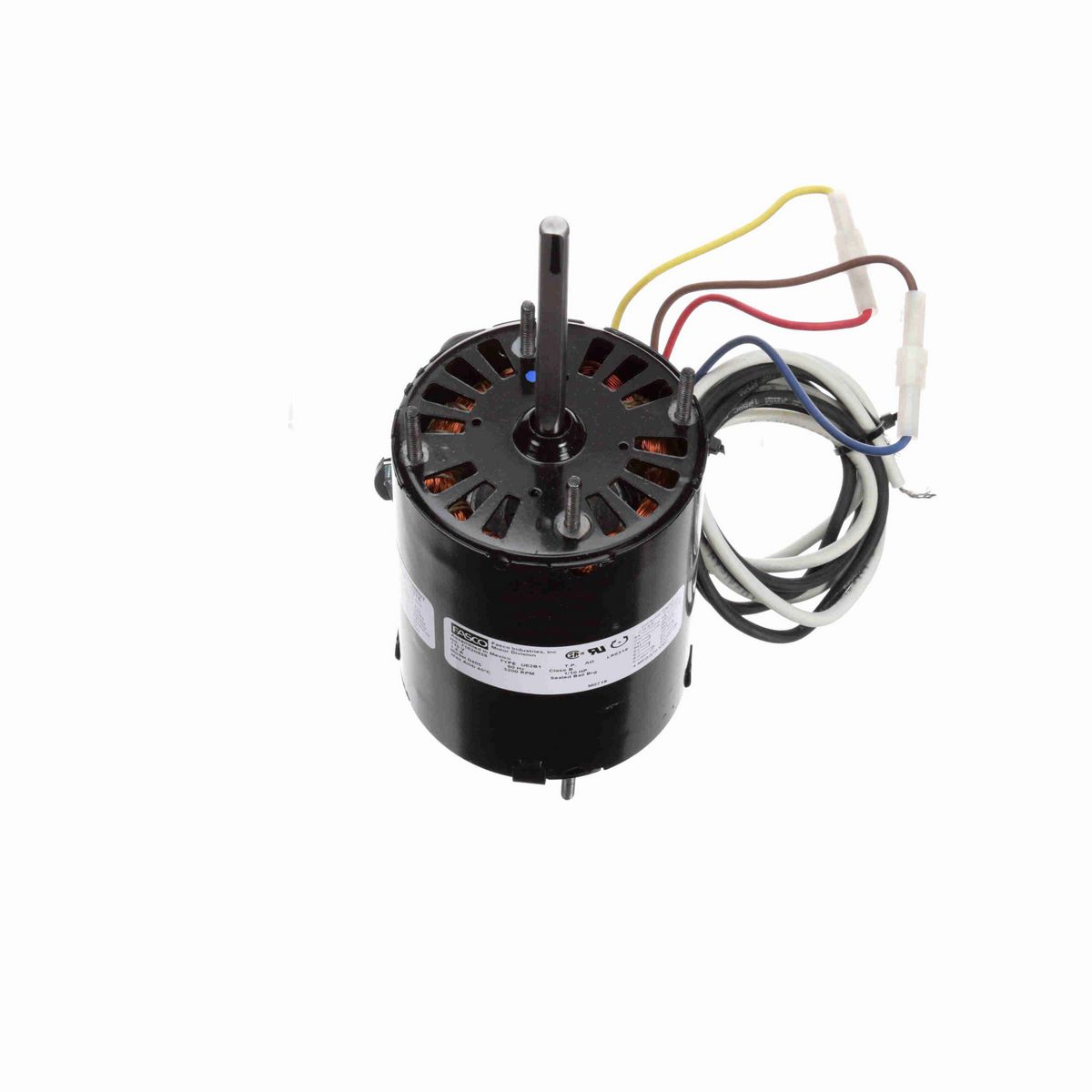

• OEM Direct Replacement Motor
• 3.3" Diameter
• Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
• Thermally Protected
• Open Opposite Lead End End-Frame, Enclosed Lead End End-Frame and Shell, Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 5/16" Diameter Shaft with Flat
• 36" Leads
• Extended Studs Shaft End and Opposite Shaft End

Nameplate Specifications

Phase	1
Output HP	1/10 Hp
Output KW	0.07 kW
Voltage	115 V
Speed	3200 rpm
Service Factor	1
Frame	3.3
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	1.4 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	2
Rotation	Reversible
Mounting	Extended Studs
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Steel
Shaft Type	Flat
Overall Length	7.80 in
Frame Length	4.01 in
Shaft Diameter	0.312 in
Shaft Extension	3.25 in

General Specifications

UPC	815585029878
Weight	5.20 LB
Packaged Length	11.00 IN
Packaged Width	5.50 IN
Packaged Height	4.56 IN
Country of Origin	Mexico
