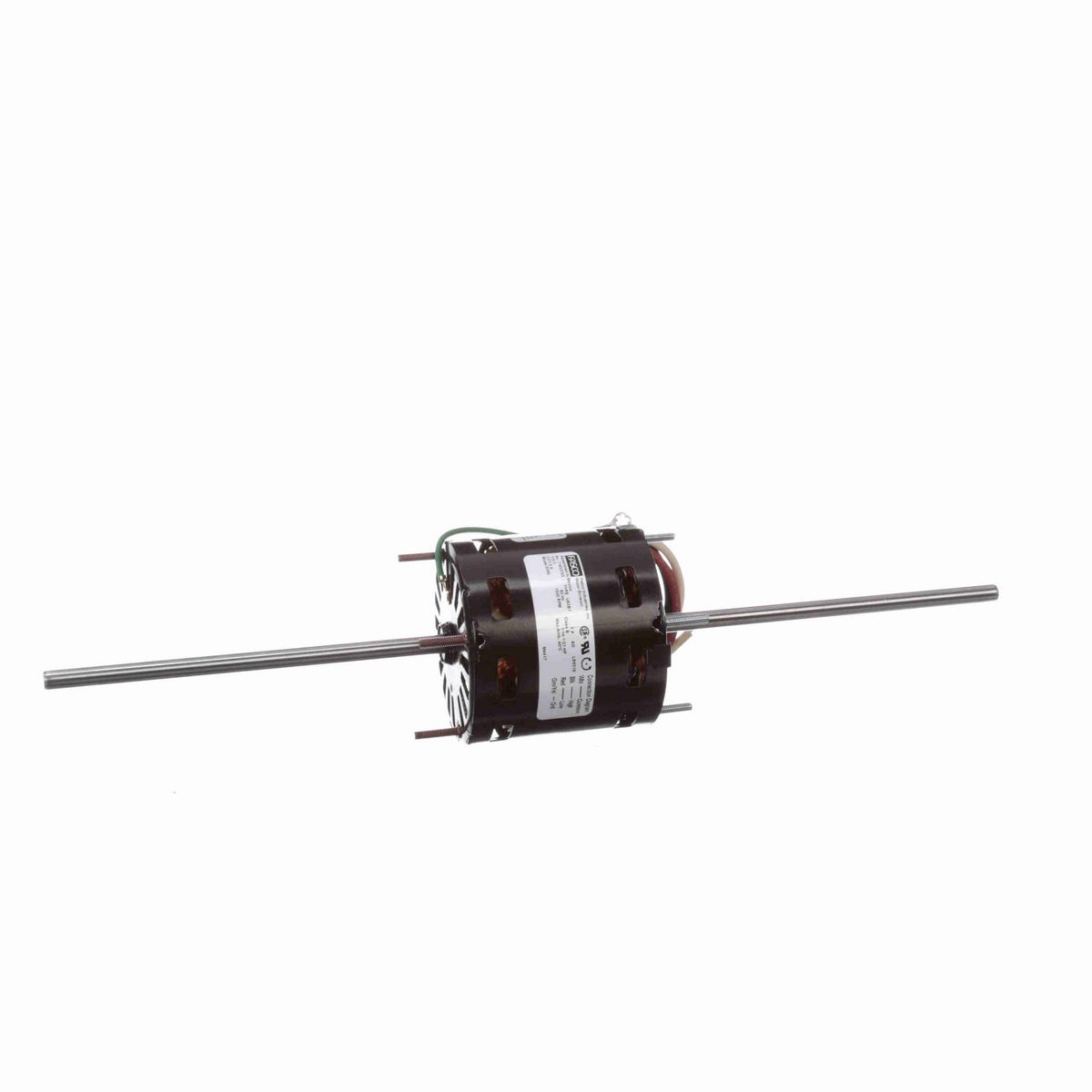

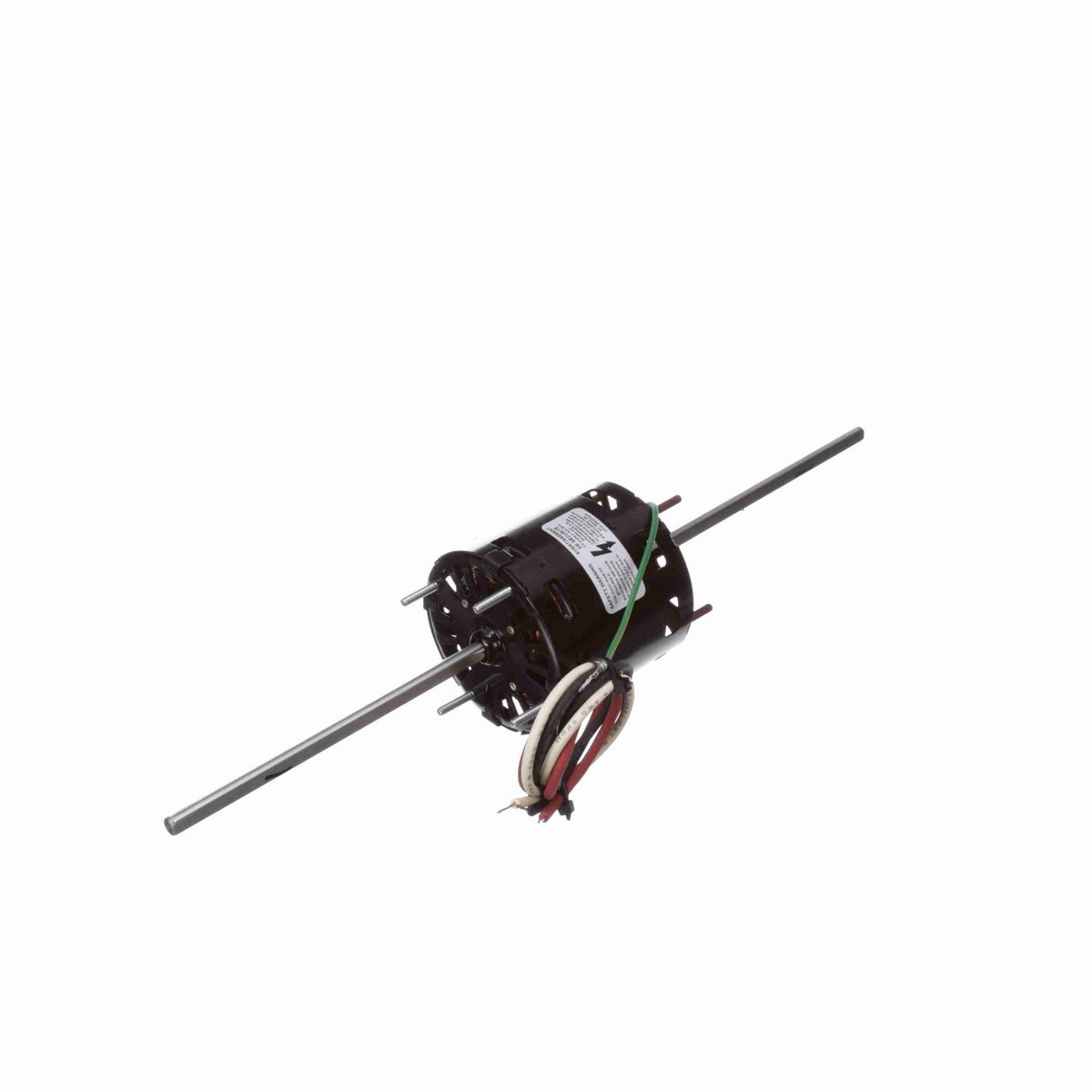

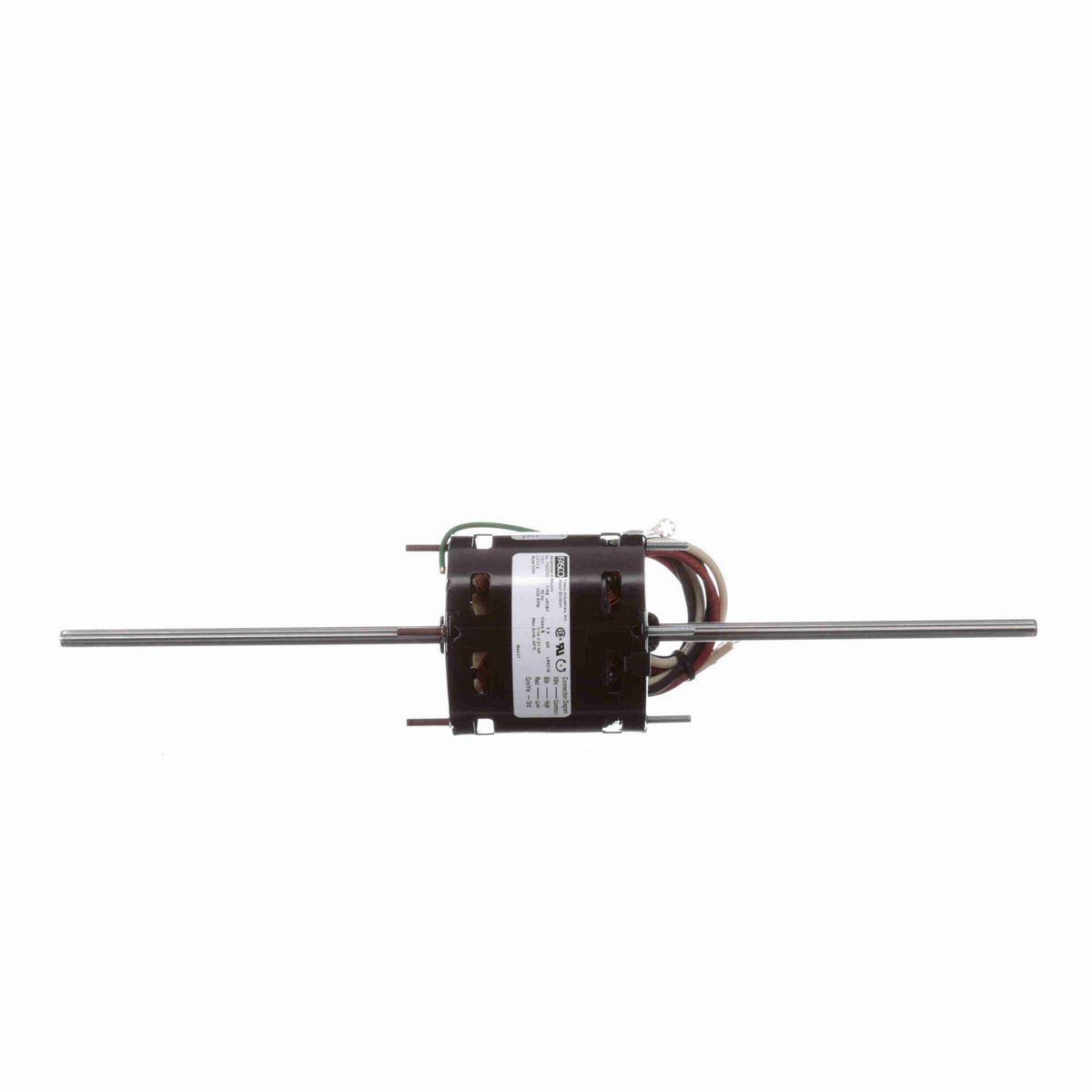

• Window Air-Conditioning Motor
• 3.3" Diameter
• Shaded Pole
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 5/16" Diameter Double Shaft with Flat
• 15" Leads
• Extended Studs Lead and Opposite Lead End

Nameplate Specifications

Phase	1
Output HP	1/14-1/21 Hp
Output KW	0.05 kW
Voltage	115 V
Speed	1500 rpm
Service Factor	1
Frame	3.3
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	2.50/1.50 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	2

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	4
Rotation	Reversible
Mounting	Extended Studs
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Steel
Shaft Type	Flat
Overall Length	16.09 in
Frame Length	3.01 in
Shaft Diameter	0.313 in
Shaft Extension	6.375 in

General Specifications

UPC	815585029755
Weight	4.20 LB
Packaged Length	17.00 IN
Packaged Width	3.38 IN
Packaged Height	3.38 IN
Country of Origin	Mexico
