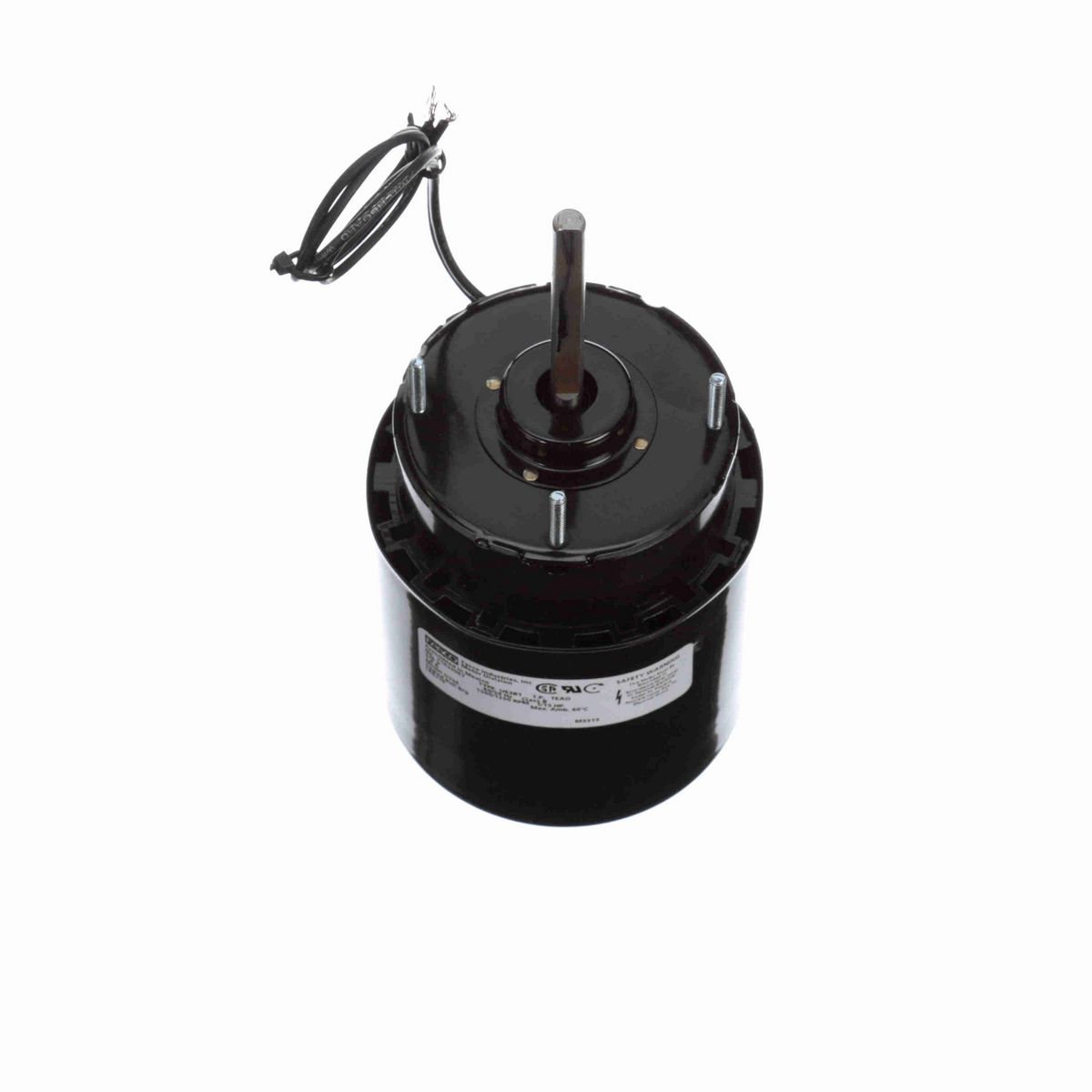

• General Purpose Motor
• 3.3" Diameter
• Shaded Pole
• Thermally Protected
• Totally Enclosed Fan Cooled, Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 5/16" Diameter Shaft with Flat
• 12" Leads
• Extended Studs Shaft End, Round Hub Shaft End and Opposite Shaft End

Nameplate Specifications

Phase	1
Output HP	1/15 Hp
Output KW	0.05 kW
Voltage	230 V
Speed	1500/1250 rpm
Frame	3.3
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	50 Hz
Current	1.40 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	4
Rotation	Clockwise Shaft End
Mounting	Extended Studs
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Steel
Shaft Type	Flat
Overall Length	8.29 in
Frame Length	3.32 in
Shaft Diameter	0.312 in
Shaft Extension	3.00 in

General Specifications

UPC	815585029601
Weight	6.20 LB
Packaged Length	10.50 IN
Packaged Width	5.38 IN
Packaged Height	4.38 IN
Country of Origin	Mexico
