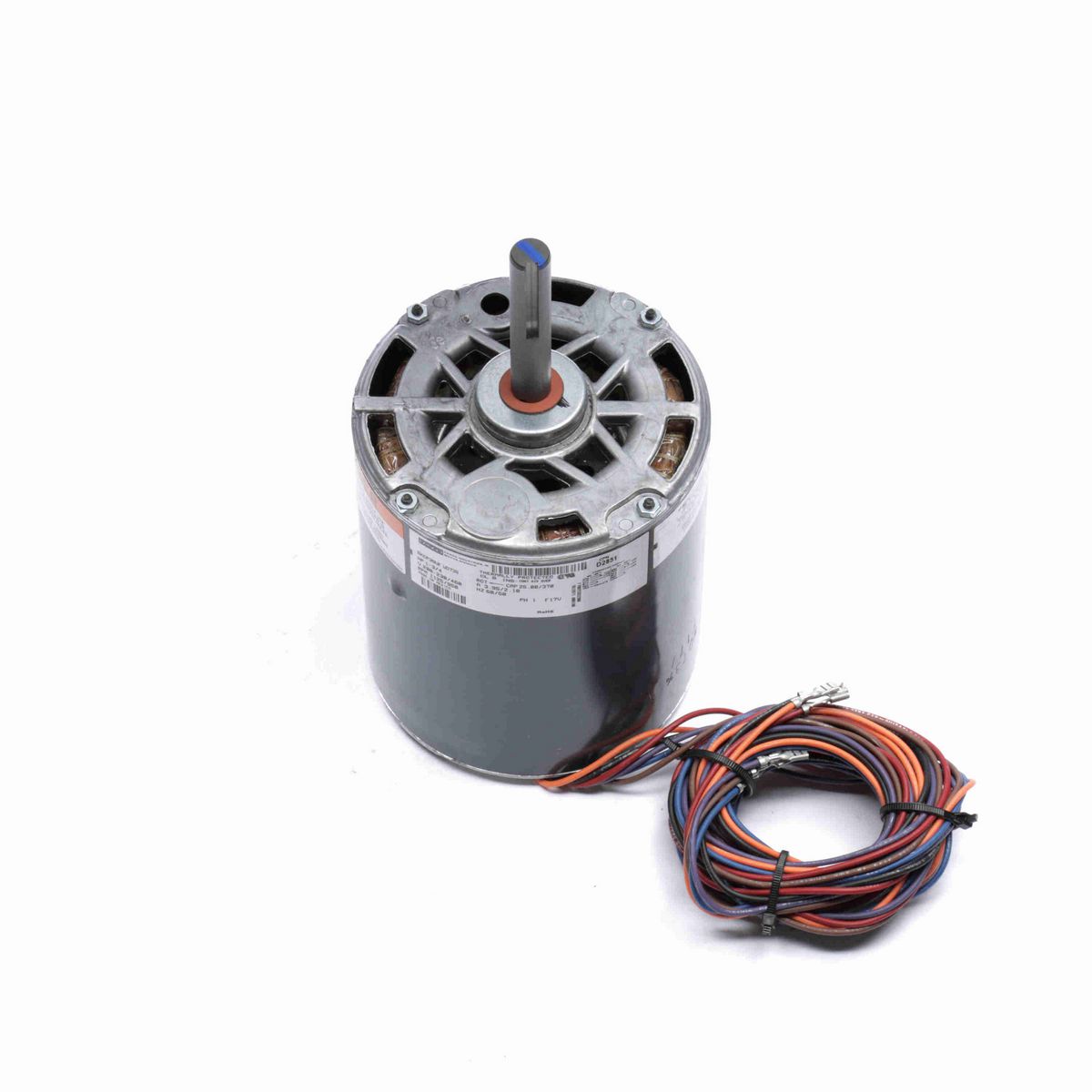

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 25 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 5/8" Diameter Shaft with Keyway
• 97" Leads
• Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1-3/4 Hp
Output KW	0.75 kW
Voltage	208-230/460 V
Speed	1125/950 rpm
Service Factor	1
Frame	48
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	65 °C
Frequency	60 Hz
Current	3.95/2.10 A
Duty	Continuous Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Poles	6
Rotation	Counterclockwise
Mounting	Lug
Motor Orientation	Hor
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Keyed
Overall Length	10.46 in
Frame Length	6.07 in
Shaft Diameter	0.620 in
Shaft Extension	3.25 in

General Specifications

UPC	818508022406
Weight	24.40 LB
Packaged Length	8.00 IN
Packaged Width	8.00 IN
Packaged Height	16.00 IN
Country of Origin	India
