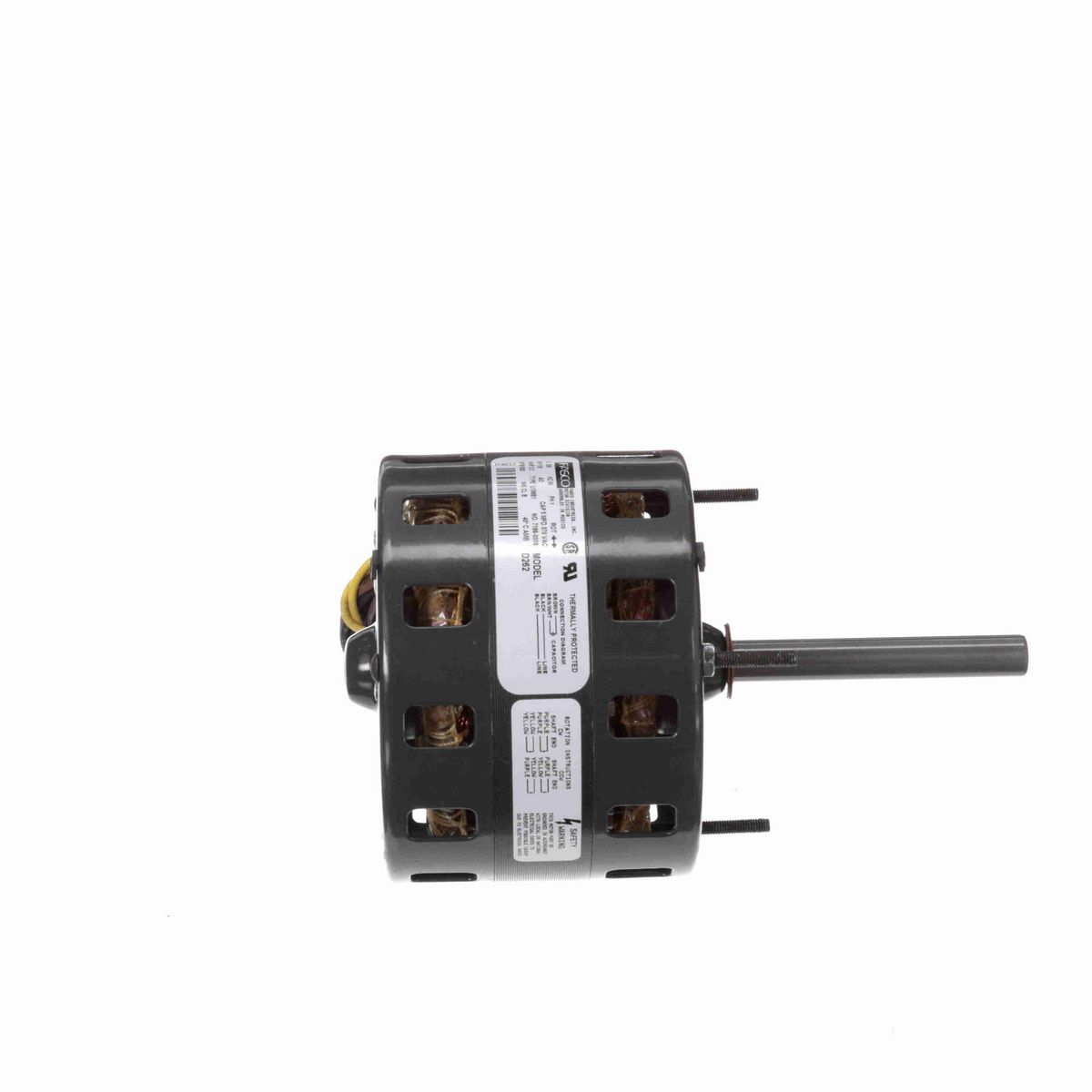

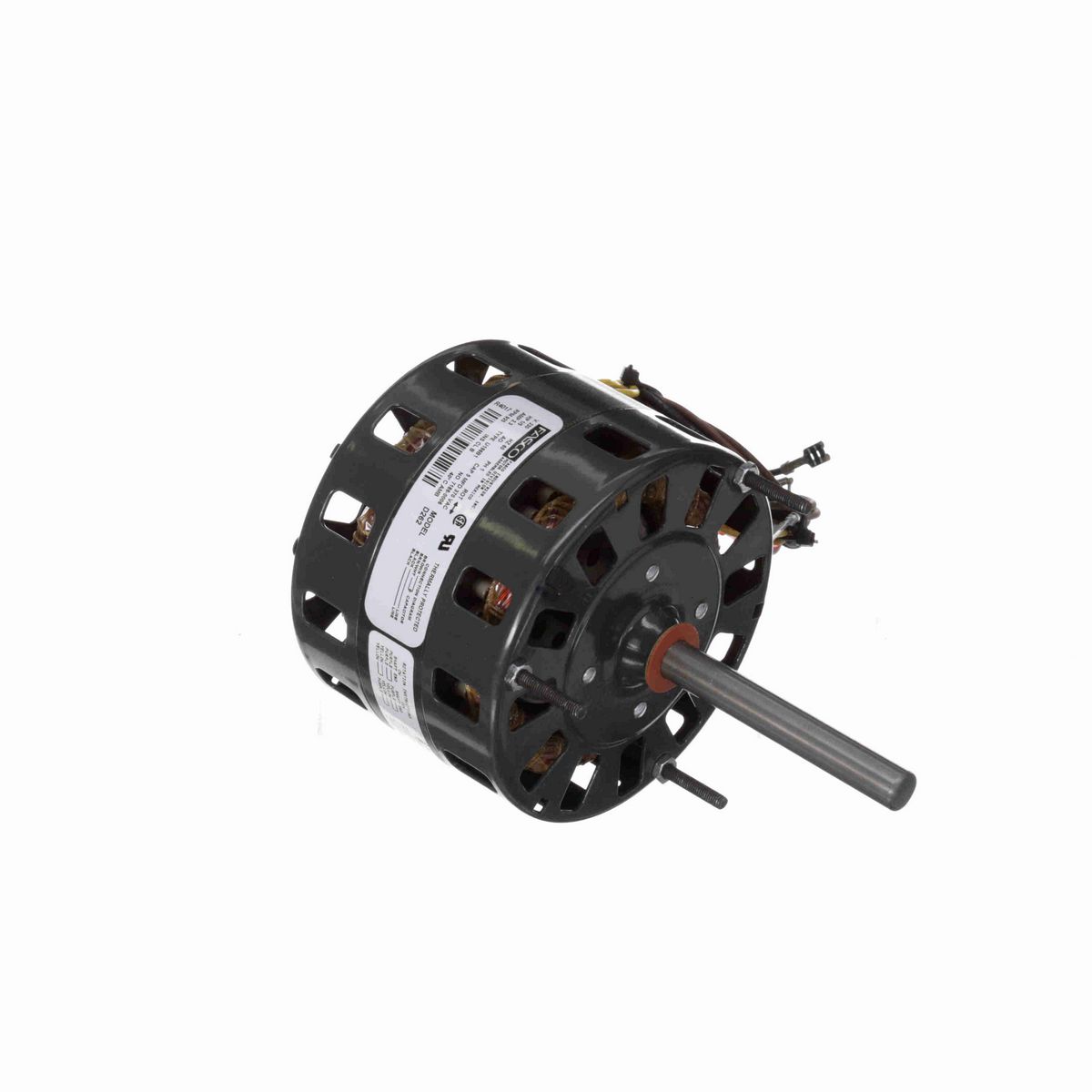

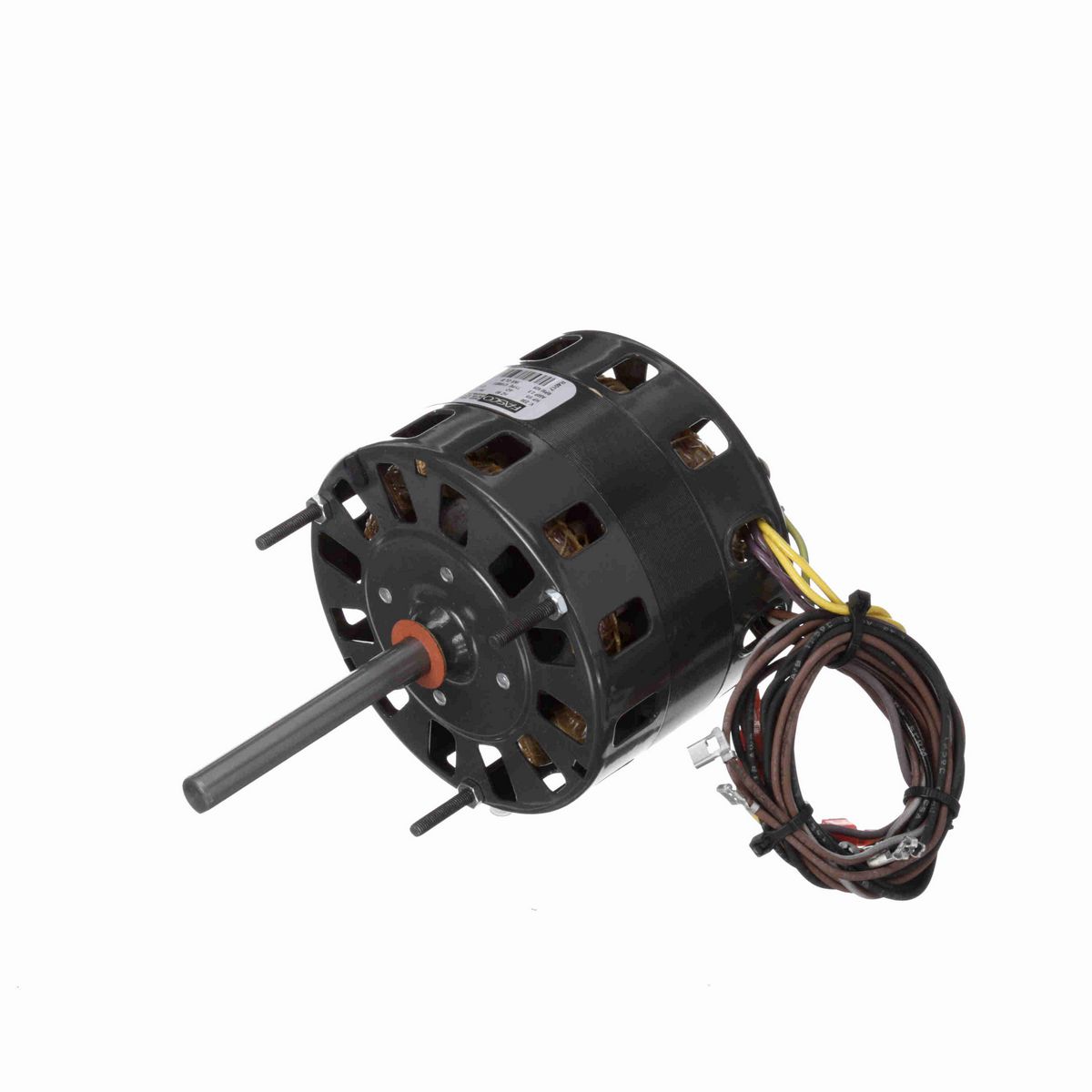

• OEM Direct Replacement Motor
• 5" Diameter - 42 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Shaft with Flat
• 38" Leads with Quick Connect Terminal
• Extended Studs Shaft End

Nameplate Specifications

Phase	1
Output HP	1/5 Hp
Output KW	0.15 kW
Voltage	230 V
Speed	925 rpm
Service Factor	1
Frame	42
Enclosure	Open Air Over
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	2.3 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Reversible
Mounting	Extended Studs
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Na
Shaft Type	Flat
Overall Length	8.06 in
Shaft Diameter	0.500 in
Shaft Extension	4 in

General Specifications

UPC	815585029373
Weight	8.20 LB
Packaged Length	5.13 IN
Packaged Width	5.13 IN
Packaged Height	10.00 IN
