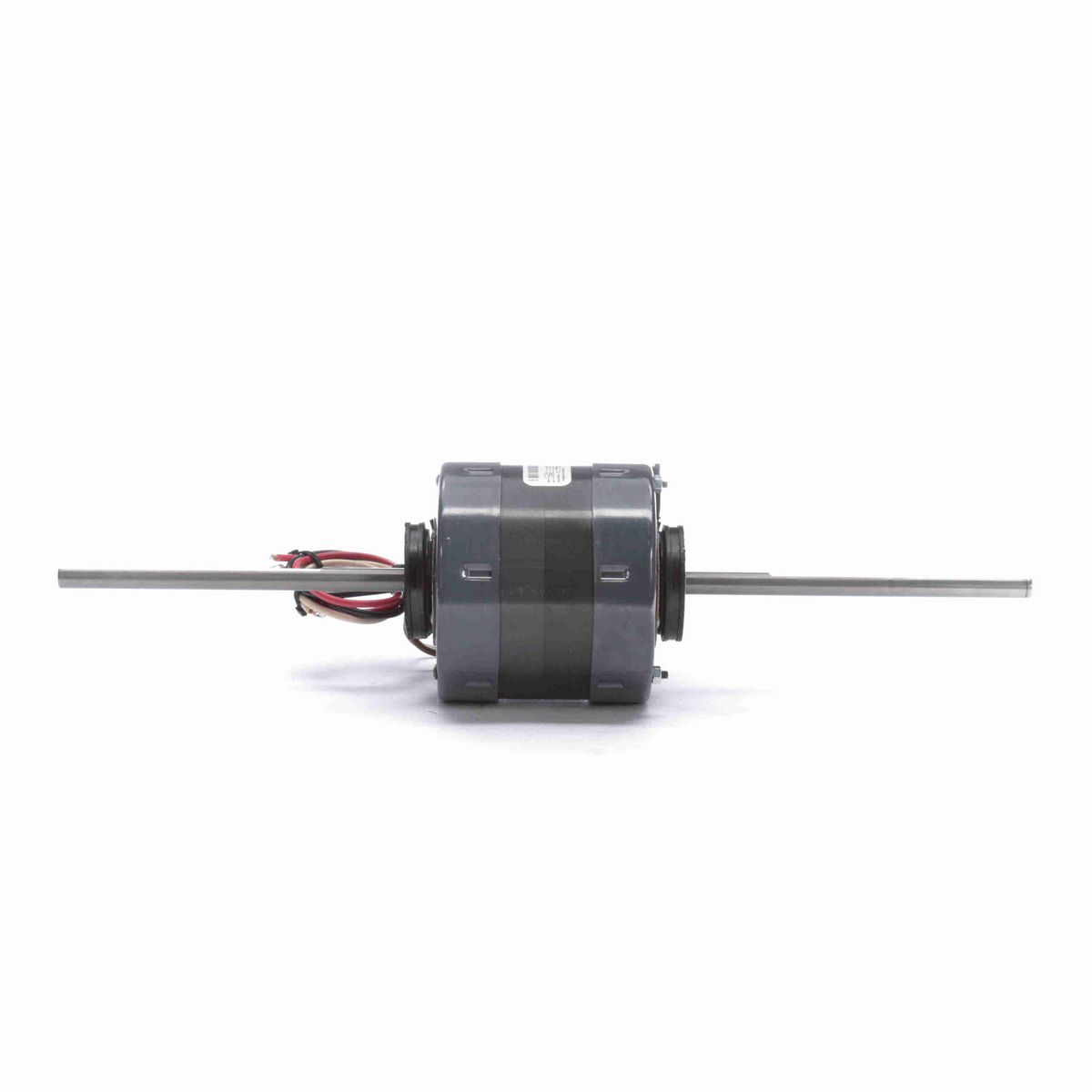

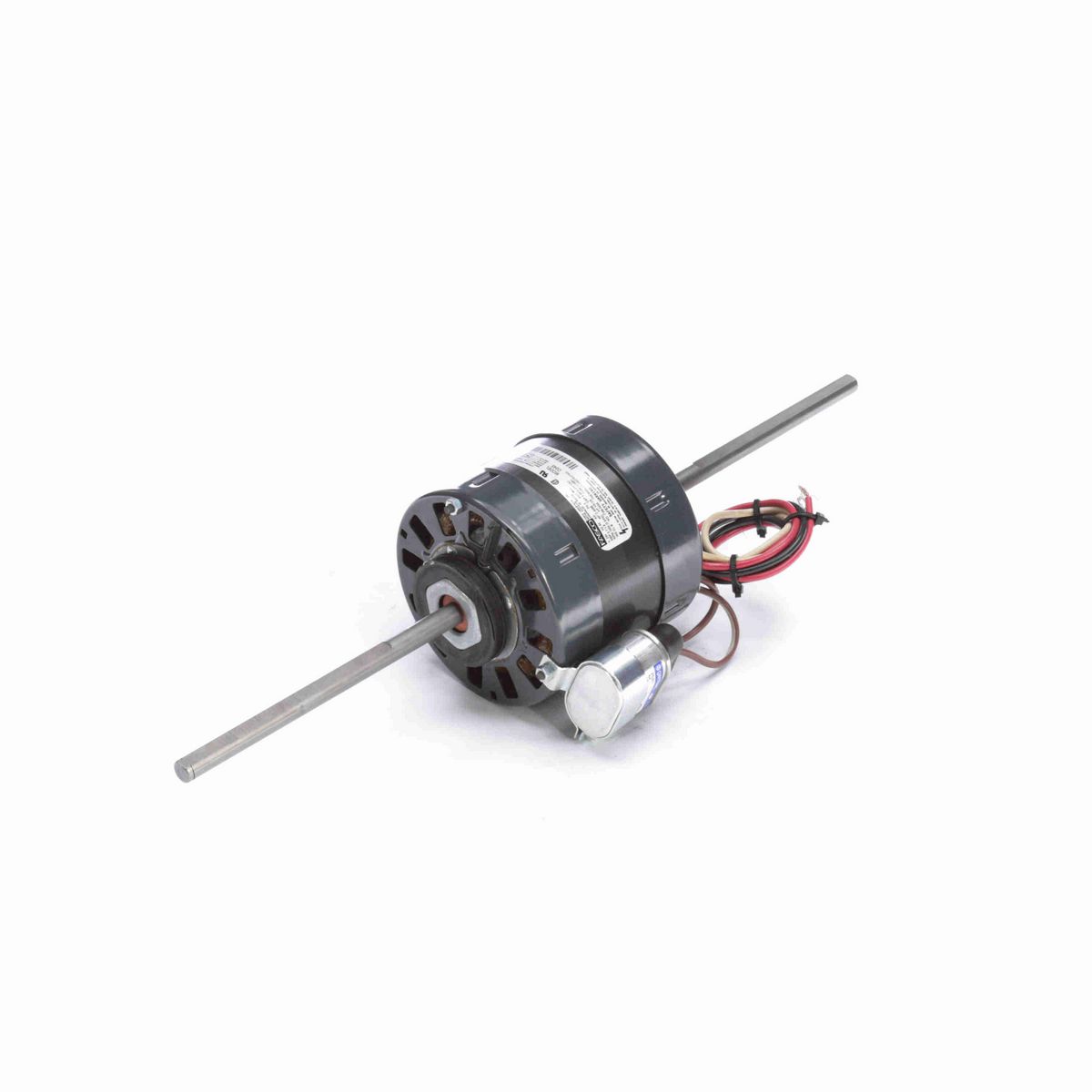

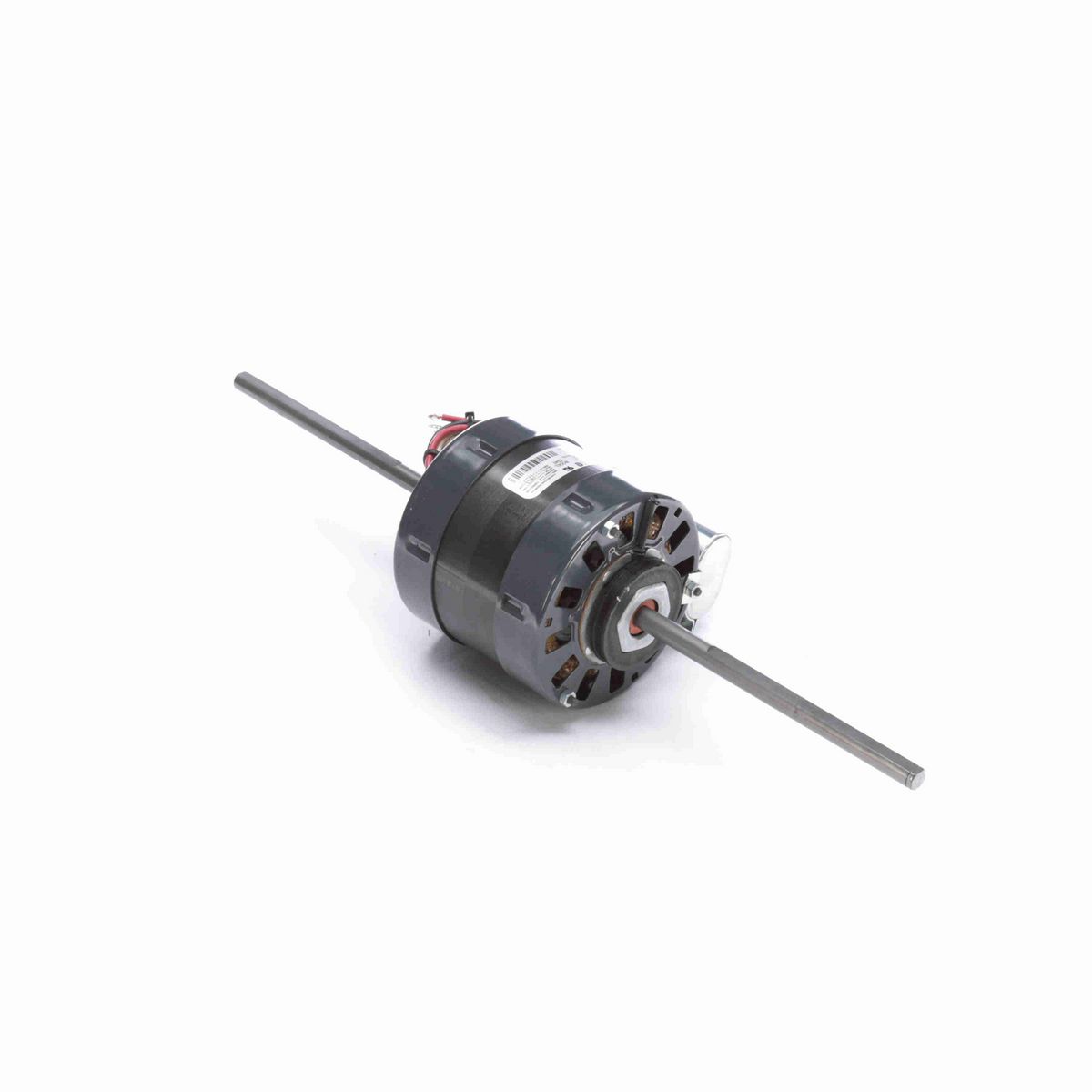

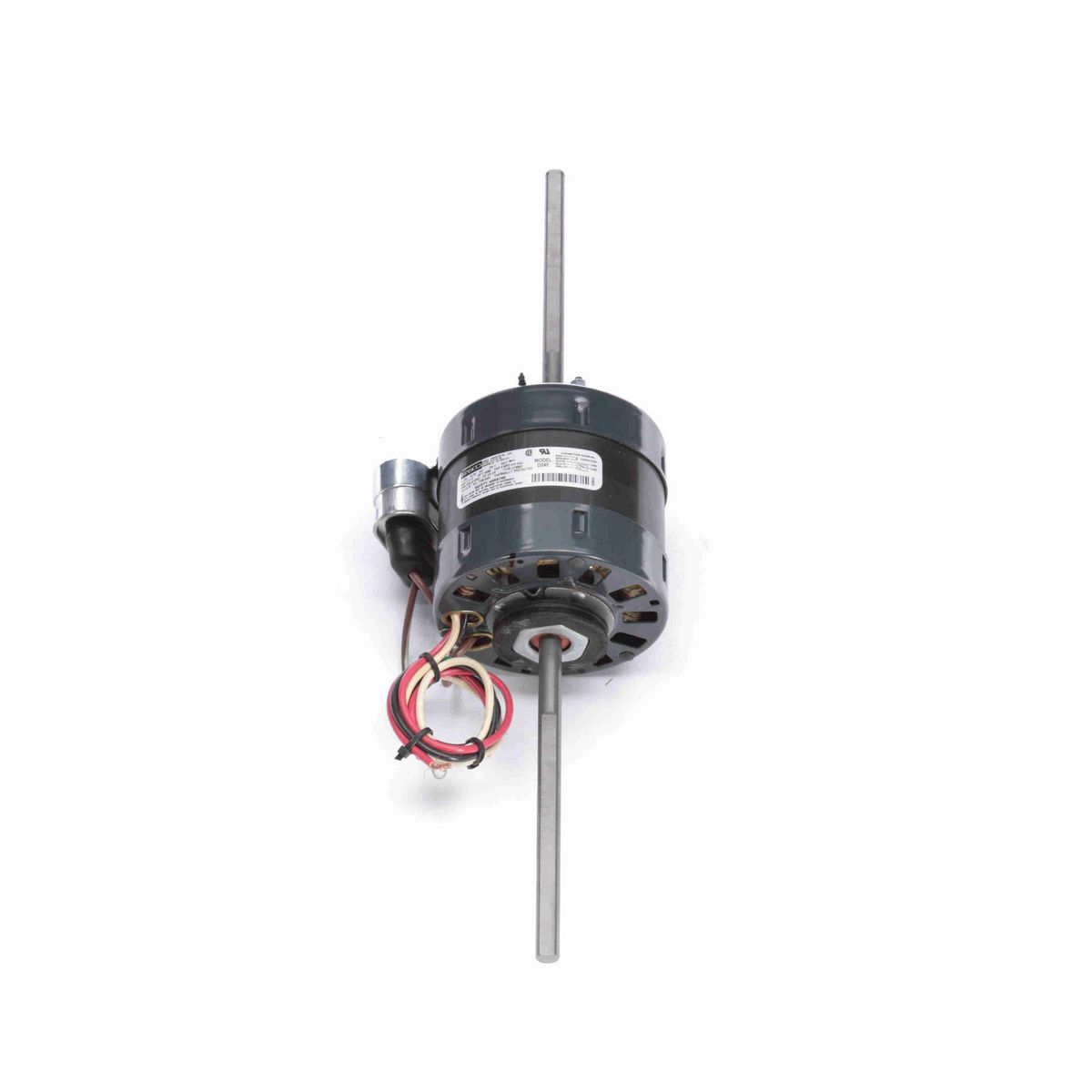

• Fan Coil - Air-Conditioning - Heating Unit Motor
• 5" Diameter - 42 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Double Shaft with Flat
• 18" Leads
• Resilient Mounting Rings Lead End and Opposite Lead End

Nameplate Specifications

Phase	1
Output HP	1/3-1/5 Hp
Output KW	0.25 kW
Voltage	230 V
Speed	1050 rpm
Service Factor	1
Frame	42
Enclosure	Open Air Over
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	2.7-1.6 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	2

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Clockwise Lead End
Mounting	Resilient Rings
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Na
Shaft Type	Flat
Overall Length	20.60 in
Shaft Diameter	0.500 in
Shaft Extension	8.00 in

General Specifications

UPC	815585029236
Weight	14.20 LB
Packaged Length	6.63 IN
Packaged Width	5.13 IN
Packaged Height	22.00 IN
