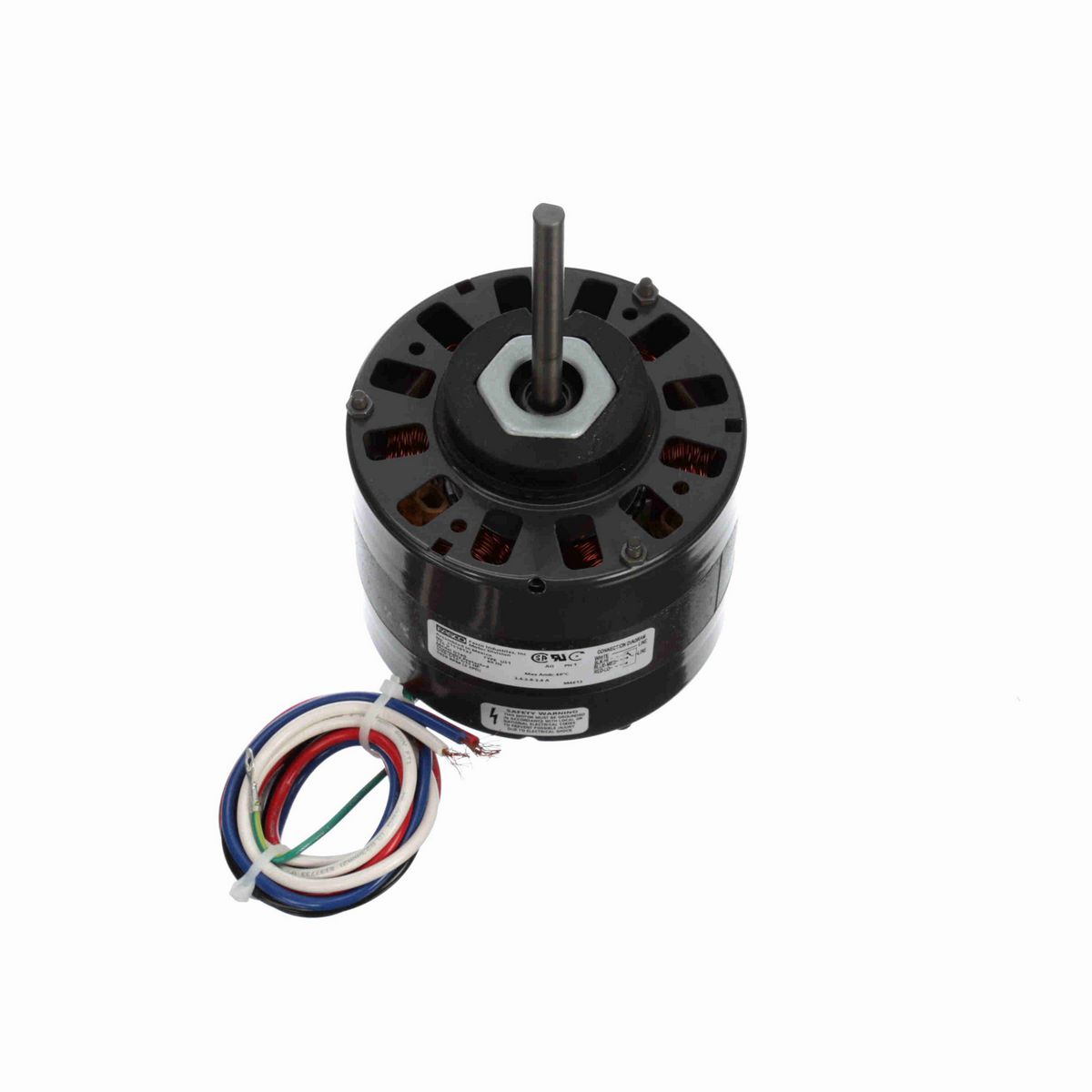

• Direct Drive Blower Motor
• 5" Diameter - 42 Frame
• Shaded Pole
• Thermally Protected
• Open Shaft End End-Frame and Lead End End-Frame, Enclosed Shell, Air Over
• Class A Insulation, 40°C Ambient
• Sleeve Bearing
• 3/8" Diameter Shaft with Flat
• 24" Leads
• Resilient Mounting Ring Shaft End and Lead End, Belly Band Mounting (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1/10 - 1/12 - 1/15 Hp
Output KW	0.07 kW
Voltage	115 V
Speed	1050 rpm
Service Factor	1
Frame	42
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	3.4/2.8/2.4 A
Duty	Air Over
Insulation Class	A
UL	Recognized
CSA	Y
CE	N
Number of Speeds	3

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	6
Rotation	Clockwise Shaft End
Mounting	Resilient Rings
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Na
Shaft Type	Flat
Overall Length	8.47 in
Shaft Diameter	0.375 in
Shaft Extension	3.88 in

General Specifications

UPC	815585028710
Weight	9.00 LB
Packaged Length	5.13 IN
Packaged Width	5.13 IN
Packaged Height	10.00 IN
Country of Origin	Mexico
